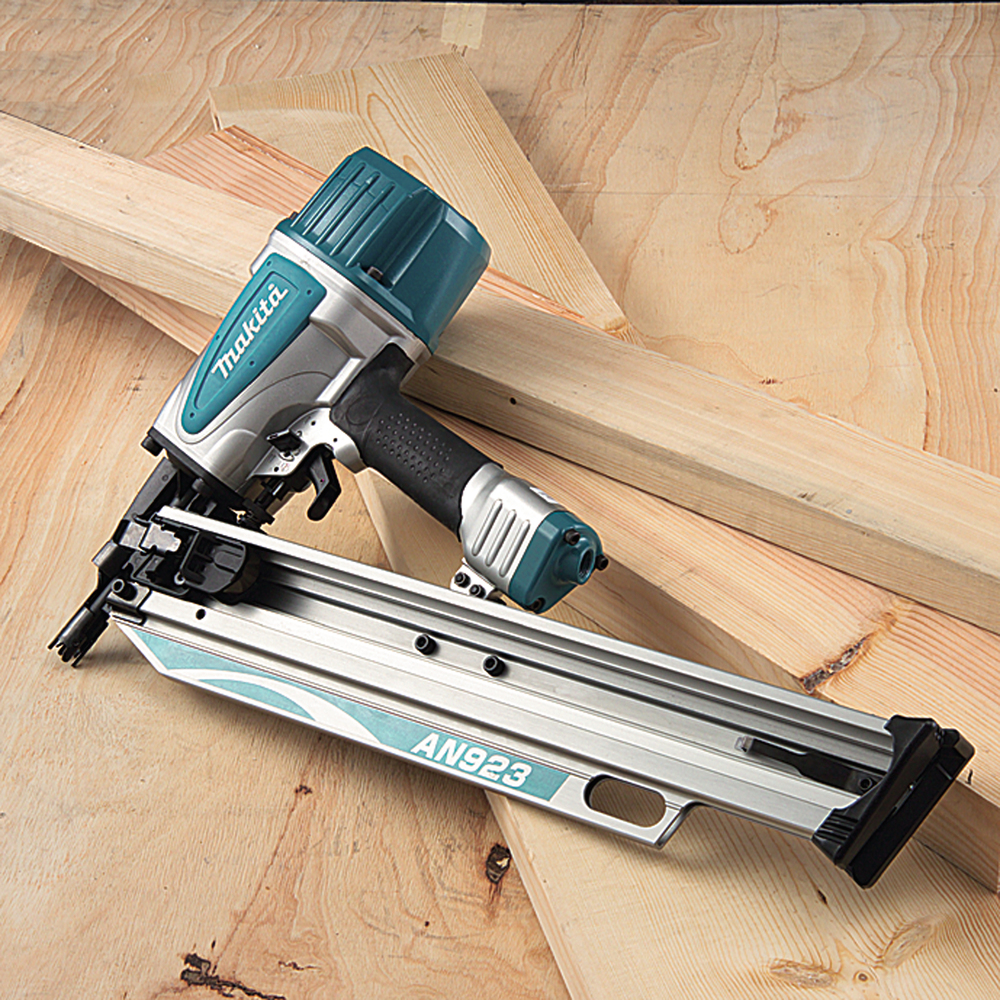

Framing Air Nailer
AN923K50 – 90 mm
Quick and rugged construction framing nailer for 21° framing nails
A quick and rugged construction framing nailer with depth adjustment for 21° plastic metal connector nails for flush and countersink nailing. The tool offers sequential and contact nailing options.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
User benefits
- The rubber coating on the handle ensures a firm working grip
Standard accessories
View more
View less
Technical specifications
-
Operating pressure4,4 - 8,3 bar
-
Nail Length50 - 90 mm
-
Nail Diameter2,9 - 4,1 mm
-
Fastener Magazine Capacity64 - 74
-
Magazine Angle21 °
-
Round Head Nail
-
Plastic Strip Collation
-
Sequential and Bump-fire
-
Flat type roll
-

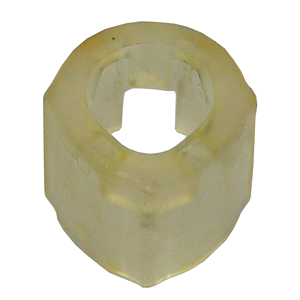

Nose cap
-
Depth Adjustment
-

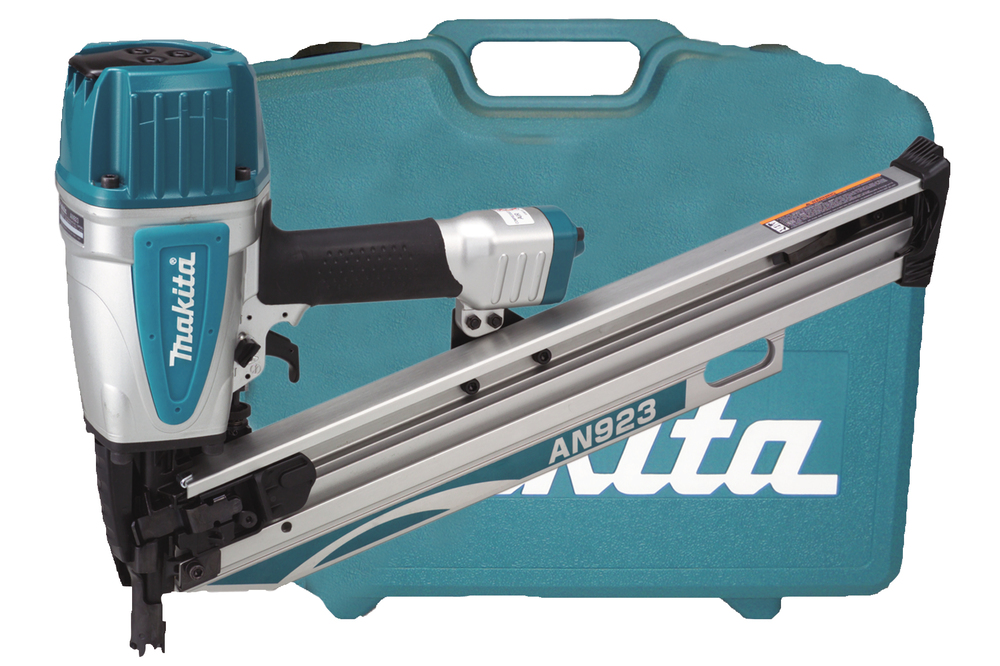

Plastic Carrying Case
-
Wrench
-
Oil supply
-
Sound Pressure Level (LpA)89 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Vibration Level (3 axes)4 m/s²
-
Vibration Uncertainty (K Factor)1,5 m/s²
-
Product net weight3.9 kg
-
Product Dimensions (L x W x H):559 x 109 x 347 mm
Barcode
0088381090483
Symbols:
Syvyydensäätö
Kerta- / sarjalaukaus
Tuloilmansuodatin
Automaattinen tyhjän laukaisun esto
Laukku
Optional accessories
