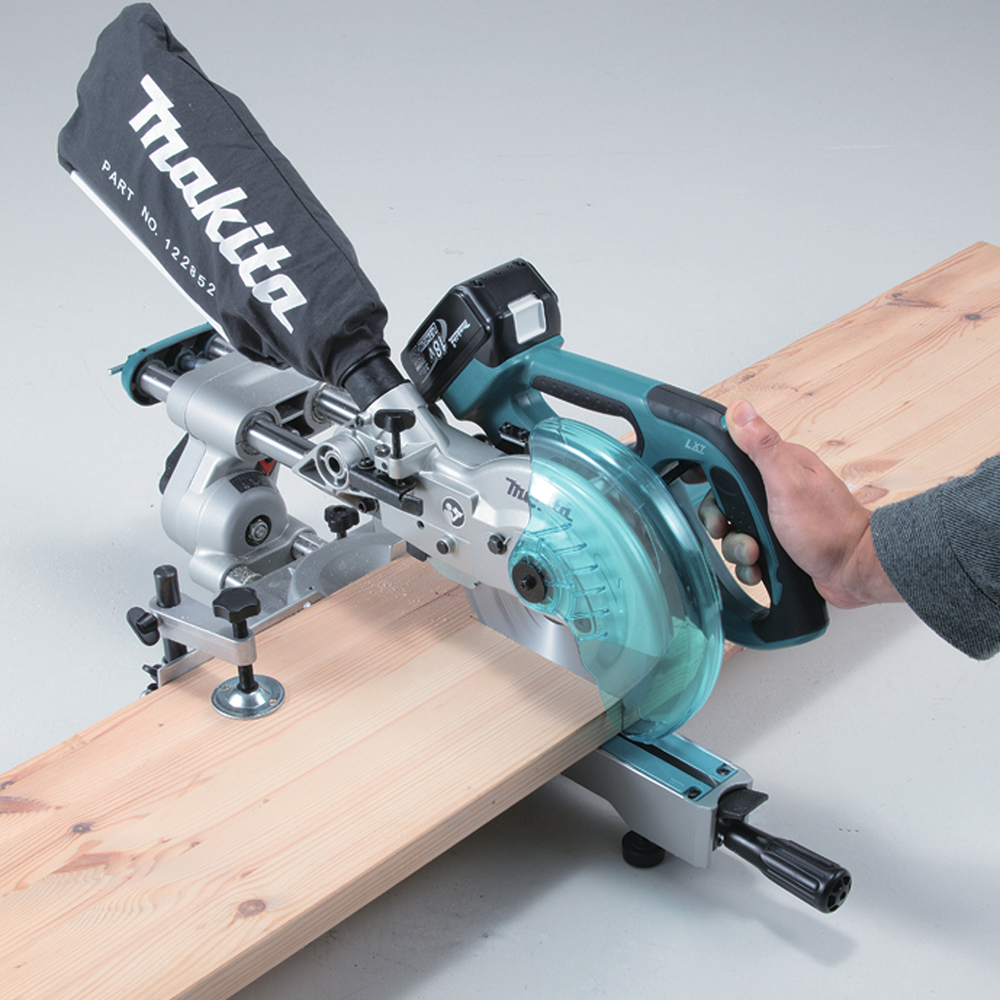

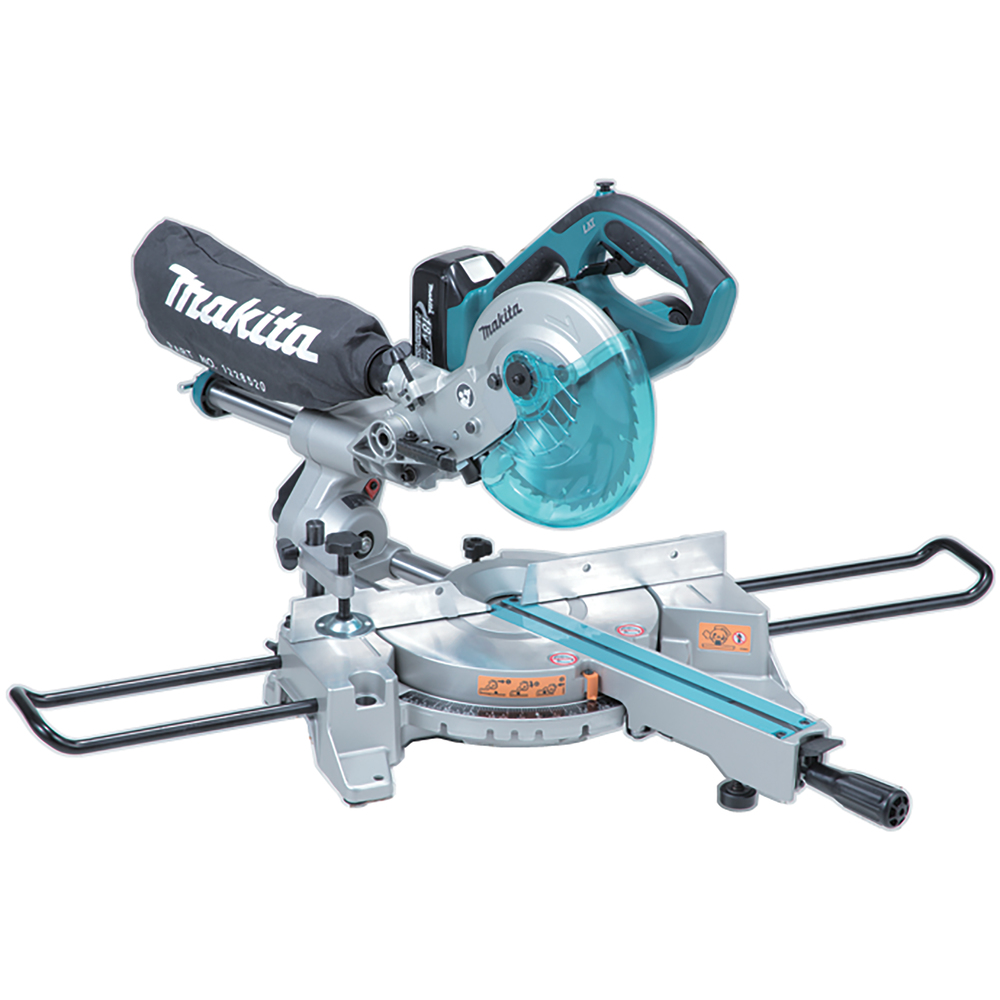

Slide Compound Saw LXT®

Technical specifications

Li-ion battery 18V
-
Voltage LXT
Capacity 90°
52 x 300 mm
Capaciity 45°
52 x 212 mm
Max. Mitre Range (Left)
47 / 52 °
Capacity 45° left
40 x 300 mm
Max. Bevel Range (Left)
45 / 5 °
Nominal Battery Voltage
18 V
Battery protection
No load speed
2200 min⁻¹
Sound Power Level (L_WA)
98 dB(A)
Sound Pressure Level (L_pA)
88 dB(A)
Noise Uncertainty (K Factor)
3 dB(A)
Vibration Level (3 axes)
≤ 2,5 m/s²
Vibration Uncertainty (K Factor)
1,5 m/s²
Tool weight with battery (EPTA)
12,4 - 12,7 kg
Product Dimensions (L x W x H):
655 x 430 x 454 mm
