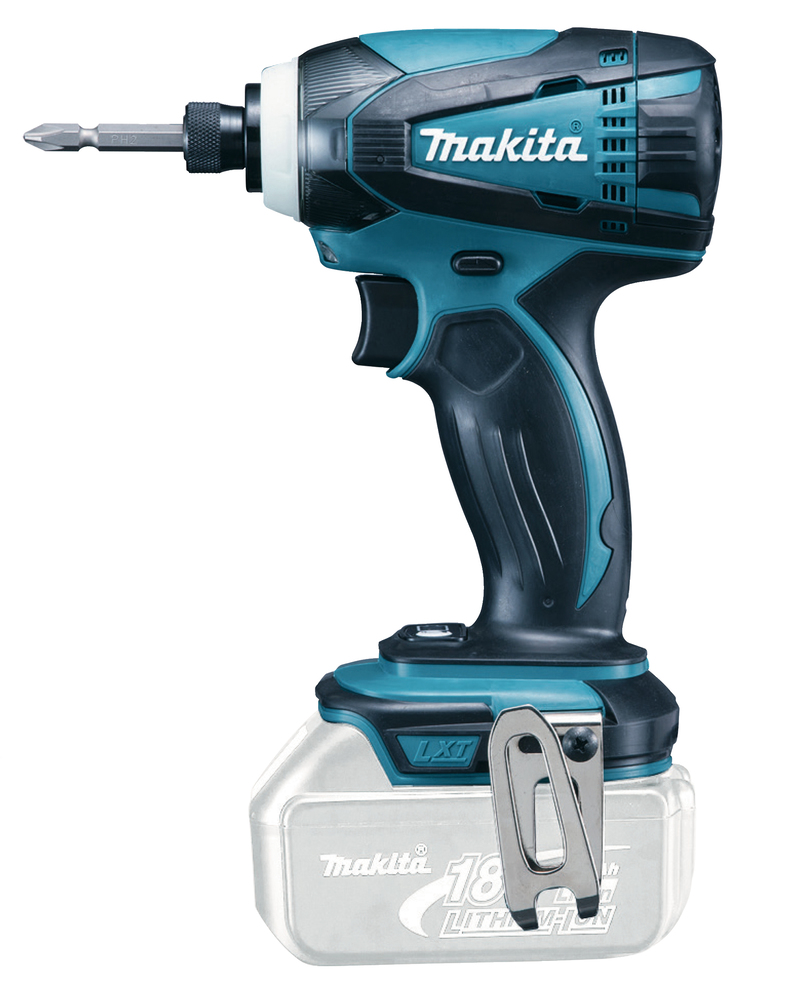

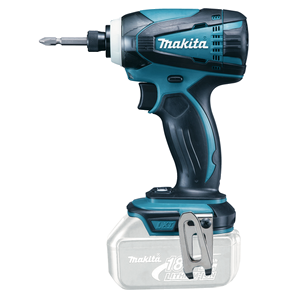

Impact Driver
BTD146Z18V • 160 Nm • 2 300 min⁻¹
Compact and lightweight impact driver especially suitable for tight spaces
Cordless 18V impact screwdriver with LED-light and variable speed (0-2,300 RPM & 0-3,200 IPM. Very compact; only 38 mm long and weighs 1,5 kg. Machine has a max fastening torque of 160 Nm. Body model, delivered without batteries and charger.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
User benefits
- LED light illuminates the work site
- Battery protection system automatically shuts off power when the battery level is low
- Battery level indicator
- Body model - delivered without battery and charger.
- Compact and lightweight design
- Built-in LED light with pre-glow and afterglow functions illuminates the work area
- Rubberized soft grip for more comfort and control
- XPT (Extreme Protection Technology) is engineered for improved dust and water resistance for operation in harsh job site conditions
- Electric brake for maximum productivity and increased operator safety
- Battery protection system automatically shuts off power when the battery level is low
Technical specifications
-
Li-ion battery 18V-
-
Nominal Battery Voltage18 V
-
Voltage LXT
-
Battery protection
-
No load speed0 - 2300 min⁻¹
-
max fastening torgue impact drill160 Nm
-
Tightening Capacity Standard BoltM5 - M14
-
Capacity machine screwM4 - M8
-
Tightening Capacity High Tensile BoltM5 - M12
-
Impacts per Minute (IPM)0 - 3200 min⁻¹
-
Sound Power Level (LWA)104 dB(A)
-
Sound Pressure Level (LpA)93 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Vibration Level (3 axes), Fastening Bolt15,5 m/s²
-
Vibration Uncertainty (K Factor)2,0 m/s²
-
Tool weight with battery (EPTA)0,9 kg
-
Product Dimensions (L x W x H):138 x 79 x 238 mm
Barcode
0088381621403
Symbols:
Portaaton nopeudensäätö
Suunnanvaihto
Elektroninen tai mekaanin jarru
Työvalo
Laukku
