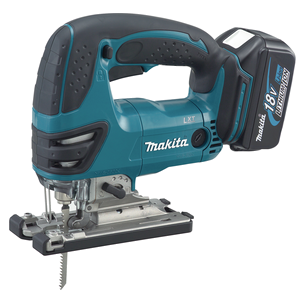

Jigsaw LXT®
DJV180Z18V • 0 – 2 600 min⁻¹
Efficient jigsaw with tool-less blade change
An efficient saw with three-stage pendulum action and tool-less blade change. Engine speed can be adjusted between 0 and 2 600 min-1 from a switch to suit the material. A stroke length of 26 mm and cutting capacity of 135 mm in wood and 10 mm in steel. Tool only, battery and charger not included.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
User benefits
- LED light illuminates the work site
- Body model - delivered without battery and charger.
Standard accessories
View more
View less
Technical specifications
-
Li-ion battery 18V-
-
Voltage LXT
-
Nominal Battery Voltage18 V
-
Battery protection
-
Impacts per Minute (IPM)0 - 2600 min⁻¹
-
Length of Stroke26 mm
-
Max. Cutting Capacity in Wood (90°)135 mm
-
Max. Cutting Capacity in Steel (90°)10 mm
-
Capcity aluminium20 mm
-
Orbital Action
-
Saw blade
-
Sound Power Level (LWA)95 dB(A)
-
Sound Pressure Level (LpA)84 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Vibration Level (3 axes), Cutting Chipboard7,0 m/s²
-
Vibration Level (3 axes), Cutting Sheet Metal3,5 m/s²
-
Vibration Uncertainty (K Factor)1,5 m/s²
-
Tool weight with battery (EPTA)2,7 - 3,0 kg
-
Product Dimensions (L x W x H):257 x 73 x 208 mm
Barcode
0088381662710
Symbols:
Portaaton nopeudensäätö
Elektroninen tai mekaanin jarru
Heiluritoiminto
Terän kiinnitys yleismalli
Pölynpoisto
Työvalo
