Combo Kit

DK0040M

18V • 75,6 cm³

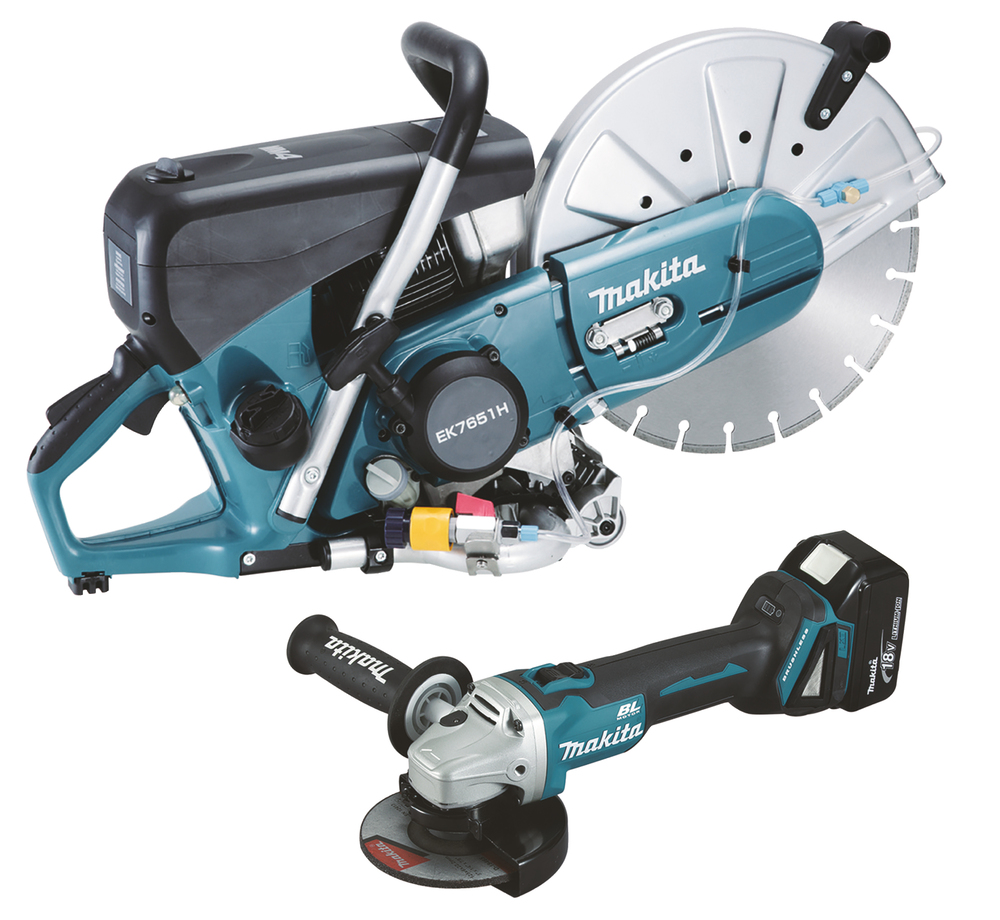

Cordless LXT® Angle Grinder and a Petrol Power Cutter

Petrol Power Cutter for demanding work, LXT® Angle Grinder for lighter work

Not in stock

**General**

**Technical info**

**Related Products**

**Dust Extraction**

**Additional info**

**Support**

Technical specifications

Engine Speed at Max. Power

3 kW

Displacement

75,6 cc

Nominal Battery Voltage

18 V

Voltage LXT

Battery protection

Number of Batteries Supplied

DGA504Z:

Li-ion battery 18V:

Nominal Battery Voltage:

18 V

Voltage LXT:

Brushless Motor:

Battery protection:

No load speed:

8500 min⁻¹

Max. Depth of Cut:

29 mm

Spindle Thread:

M14

Bore Size (Arbor Diameter):

22,23 mm

Grinding Disc Diameter:

125 mm

Anti-Restart Function (NVR Switch):

Grip AVT:

Grinding Wheel:

Lock Nut Wrench:

Sound Pressure Level (L_pA):

79 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes):

6,0 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Tool weight with battery (EPTA):

2,3 - 2,5 kg

Product Dimensions (L x W x H)::

362 x 140 x 145 mm

DGA504ZX1:

Li-ion battery 18V:

Nominal Battery Voltage:

18 V

Voltage LXT:

Brushless Motor:

Battery protection:

No load speed:

8500 min⁻¹

Max. Depth of Cut:

29 mm

Spindle Thread:

M14

Bore Size (Arbor Diameter):

22,23 mm

Grinding Disc Diameter:

125 mm

Anti-Restart Function (NVR Switch):

Grip AVT:

Grinding Wheel:

Lock Nut Wrench:

Sound Pressure Level (L_pA):

79 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes):

6,0 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Tool weight with battery (EPTA):

2,3 - 2,5 kg

Product Dimensions (L x W x H)::

362 x 140 x 145 mm

EK7651H:

Engine Speed at Max. Power:

3,0 kW

Displacement:

75,6 cc

Grinding Disc Diameter:

350 mm

Bore Size (Arbor Diameter):

25,4 mm

Max. Depth of Cut:

122 mm

Product net weight:

12,9 kg

Primer pump:

4-stroke OHV (Overhead Valve) Y/N:

Oil Sump Capacity:

0,22 L

Fuel Tank Capacity:

1,1 L

Max. Peripheral Speed:

80 m/s

Sound Power Level (L_WA):

104,6 dB(A)

Sound Pressure Level (L_pA):

92,7 dB(A)

Noise Uncertainty (K Factor):

2,5 dB(A)

Vibration Level (3 axes) at Front Handle:

2,7 m/s²

Vibration Level (3 axes) at Rear Handle:

1,8 m/s²

Vibration Uncertainty (K Factor):

2,0 m/s²

Barcode

0088381695428
