Brad Nailer Kit

DK0071

15-50mm • 18Ga

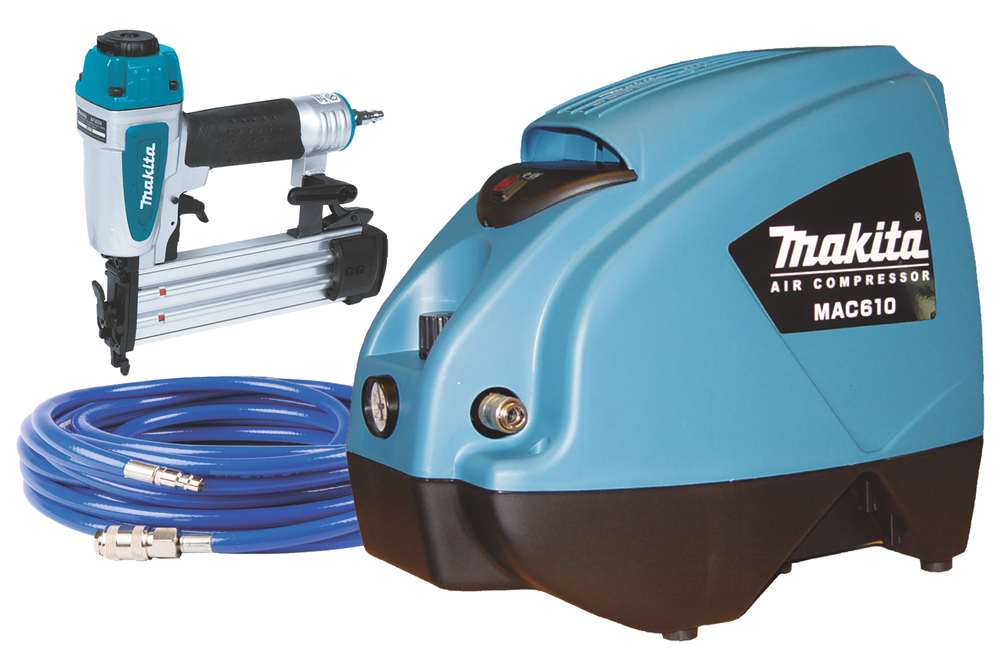

Nailer, oil-free compressor and air hose

A brad nailer kit consisting of a light and silent oil-free MAC610 compressor, AF505N brad nailer and 10m/6mm air hose.

Not in stock

**General**

**Technical info**

**Related Products**

**Dust Extraction**

**Additional info**

**Support**

Technical specifications

Maximum Output Power

800 W

No load speed

3000 min⁻¹

Maximum Flow Rate

160 L/min

Performance

55 (6 bar) L/min

Outlet max pressure normal

8 bar

Max Pressure

8 bar

Air Tank Capacity

6 L

Thermal Safety Switch

Sound Power Level (L_WA)

88,3 dB(A)

Sound Pressure Level (L_pA)

71,8 dB(A)

Noise Uncertainty (K Factor)

3 dB(A)

AF505N:

Operating pressure:

3,9 - 7,8 bar

Nail Length:

15 - 50 mm

Nail Diameter:

1,2 mm

Fastener Gauge:

18 Ga

Fastener Magazine Capacity:

100

Magazine Angle:

0 °

Sequential and Bump-fire:

Glue Collation:

Nose cap:

Depth Adjustment:

Plastic Carrying Case:

Oil supply:

Sound Power Level (L_WA):

94 dB(A)

Sound Pressure Level (L_pA):

81 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes):

≤ 2,5 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Product net weight:

1,4 kg

Product Dimensions (L x W x H)::

260 x 64 x 237 mm

MAC610:

Maximum Output Power:

800 W

No load speed:

3000 min⁻¹

Maximum Flow Rate:

160 L/min

Performance:

55 (6 bar) L/min

Outlet max pressure normal:

8 bar

Max Pressure:

8 bar

Air Tank Capacity:

6 L

Thermal Safety Switch:

Sound Power Level (L_WA):

88,3 dB(A)

Sound Pressure Level (L_pA):

71,8 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Weight Without Cable (EPTA-Procedure 01/2003):

8,5 kg

Product Dimensions (L x W x H)::

460 x 270 x 400 mm

Barcode

0088381824095
