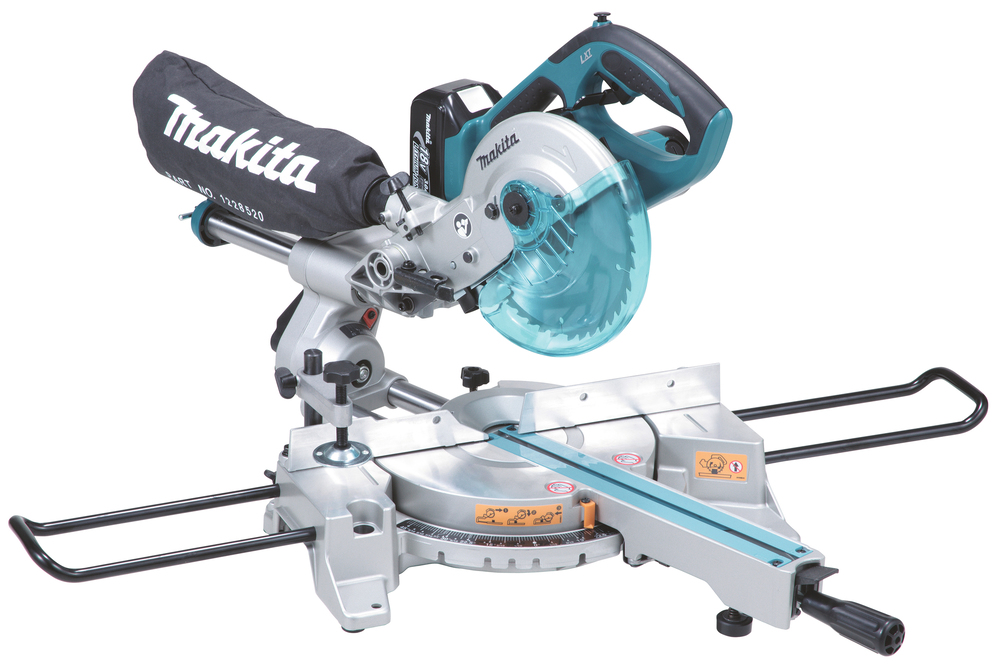

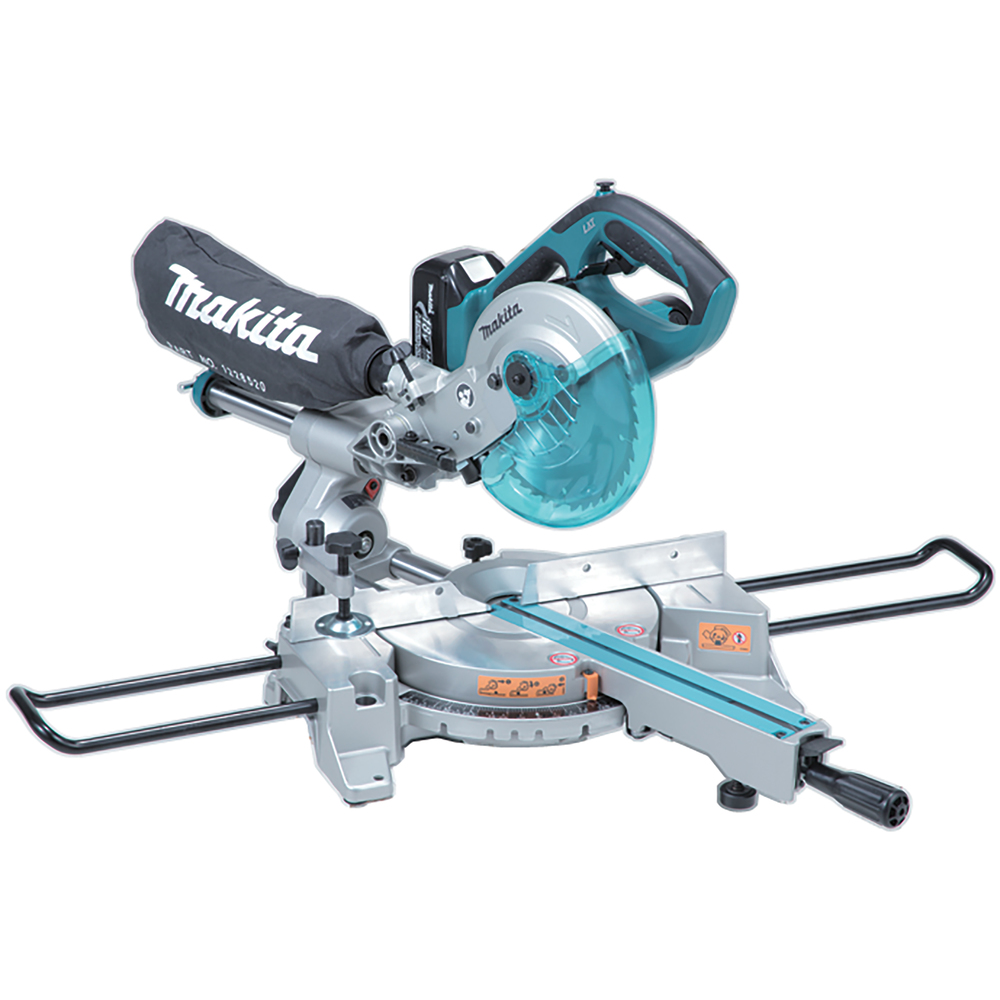

Slide Compound Saw LXT®
DLS713RFE18V • 190 mm • 2200 minˉ¹
A light and powerful slide compound saw for builders
A cordless slide compound saw for cross and mitre cutting with a blade diameter of 190 mm. An ideal choice for construction and other demanding sectors. Four steel poles with four linear ball bearings ensure stable and accurate cutting.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
User benefits
- Battery protection system automatically shuts off power when the battery level is low
- Body model - delivered without battery and charger.
Standard accessories
View more
View less
Standard machines
View more
View less
Technical specifications
-
Li-ion battery 18V-
-
Voltage LXT
-
Capacity 90°52 x 300 mm
-
Capaciity 45°52 x 212 mm
-
Max. Mitre Range (Left)47 / 57 °
-
Capacity 45° left40 x 300 mm
-
Max. Bevel Range (Left)45 / 5 °
-
Blade Diameter190 mm
-
Bore Size (Arbor Diameter)20 mm
-
Nominal Battery Voltage18 V
-
Battery protection
-
No load speed2200 min⁻¹
-
Sound Power Level (LWA)98 dB(A)
-
Sound Pressure Level (LpA)88 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Vibration Level (3 axes)≤ 2,5 m/s²
-
Vibration Uncertainty (K Factor)1,5 m/s²
-
Tool weight with battery (EPTA)12,4 - 12,7 kg
-
Product Dimensions (L x W x H):655 x 430 x 454 mm
-
Blade190 x 20 mm
Barcode
0088381672795
Symbols:
Elektroninen tai mekaanin jarru
Pölynpoisto
Kallistuskulma vasen 45/oikea 5
