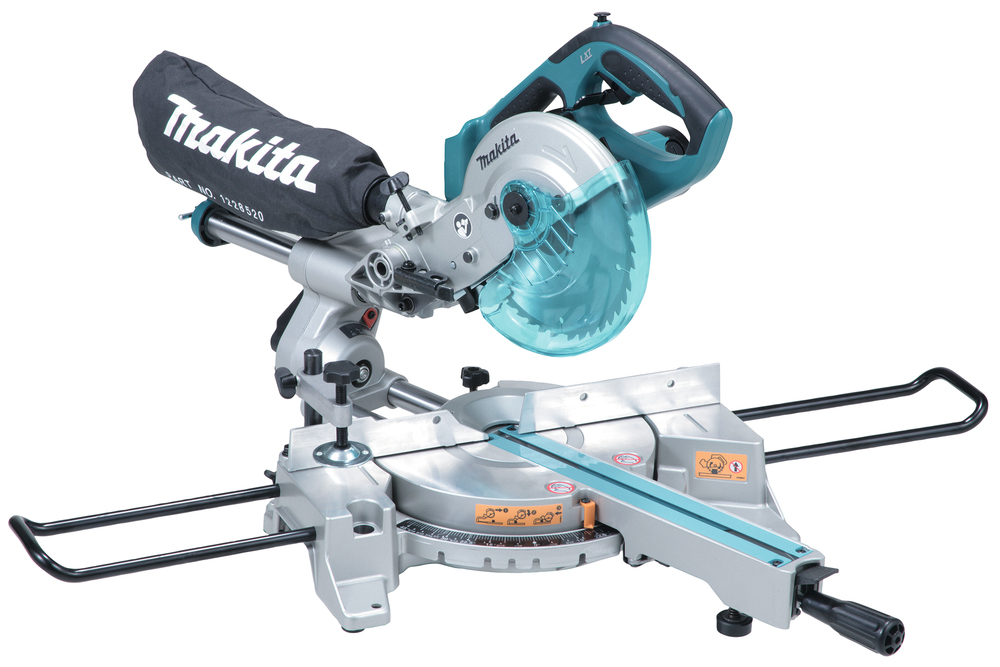

Slide Compound Saw LXT®
DLS713Z18V • 190 mm • 2 200 min-1
A light and powerful slide compound saw for builders
A cordless slide compound saw for cross and mitre cutting with a blade diameter of 190 mm. An ideal choice for construction and other demanding sectors. Four steel poles with four linear ball bearings ensure stable and accurate cutting. Tool only, battery and charger not included.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
User benefits
- Battery protection system automatically shuts off power when the battery level is low
- Body model - delivered without battery and charger.
Standard accessories
View more
View less
Technical specifications
-
Li-ion battery 18V-
-
Voltage LXT
-
Capacity 90°52 x 300 mm
-
Capaciity 45°52 x 212 mm
-
Max. Mitre Range (Left)47 / 57 °
-
Capacity 45° left40 x 300 mm
-
Max. Bevel Range (Left)45 / 5 °
-
Blade Diameter190 mm
-
Bore Size (Arbor Diameter)20 mm
-
Nominal Battery Voltage18 V
-
Battery protection
-
No load speed2200 min⁻¹
-
Sound Power Level (LWA)98 dB(A)
-
Sound Pressure Level (LpA)88 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Vibration Level (3 axes)≤ 2,5 m/s²
-
Vibration Uncertainty (K Factor)1,5 m/s²
-
Tool weight with battery (EPTA)12,4 - 12,7 kg
-
Product Dimensions (L x W x H):655 x 430 x 454 mm
-
Blade190 x 20 mm
Barcode
0088381672764
Symbols:
Elektroninen tai mekaanin jarru
Pölynpoisto
Kallistuskulma vasen 45/oikea 5
