Combo Kit LXT®
DLX1007MJ18V

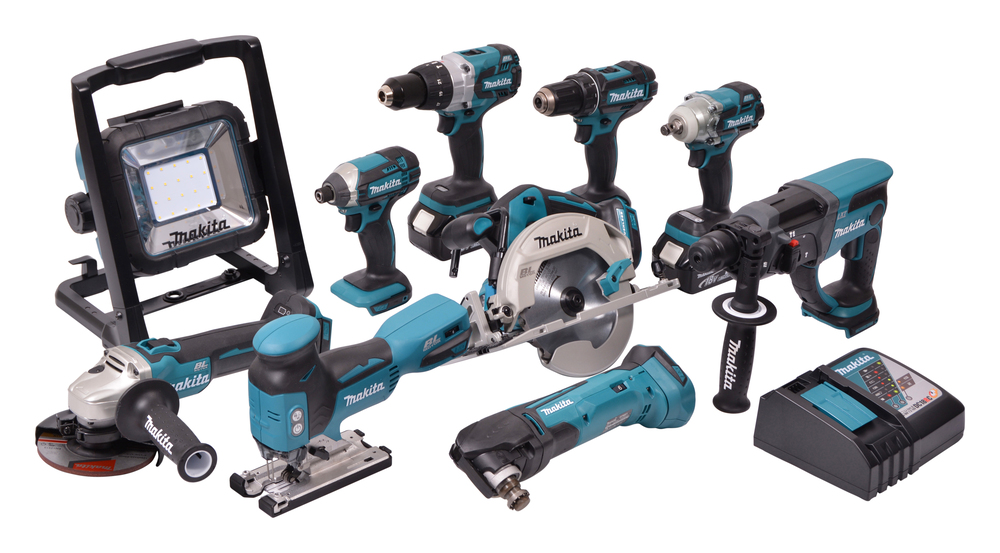

Comprehensive kit with ten brushless tools for professional use
An extensive kit with ten brushless and cordless 18V LXT tools for heavy-duty use. Ideal as a starter set for a carpenter. Comes with three 4.0Ah batteries and a rapid charger. Incudes a bag for the storage and transport of the tools.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
Combokits:
View more
View less
DDF482Z:
Li-ion battery 18V:
-
Nominal Battery Voltage:
18 V
Voltage LXT:
Battery protection:
No load speed:
0 - 600 / 1900 min⁻¹
Max. fastening torque Hard/Soft:
62 / 36 Nm
Clutch torque setting:
21
Max. Drilling Diameter in Wood:
38 mm
Max. Drilling Diameter in Steel:
13 mm
Driving Shank:
1/2"-20UNF "
Drill Chuck Capacity:
1,5 - 13 mm
Sound Pressure Level (LpA):
75 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Vibration Level (3 axes), Drilling:
≤ 2,5 m/s²
Vibration Uncertainty (K Factor):
1,5 m/s²
Tool weight with battery (EPTA):
1,5 - 1,7 kg
Product Dimensions (L x W x H)::
185 x 79 x 249 mm
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion):
Li-ion
DEADML805:
Nominal Battery Voltage:
14,4 / 18 / 230 V
Voltage LXT:
Li-ion battery 12V max:
-
Li-ion battery 18V:
-
Battery protection:
Luminous flux:
750 / 450 Lumen
Illuminance:
1150 / 750 lx
LED wattage:
20 x 0,5 W
Continious use 18V / 2.0 Ah battery:
3,5 / 7 h
Continious use 18V / 4.0 Ah battery:
6,5 / 13 h
Continious use 18V / 5.0 Ah battery:
8,5 / 17 h
Power Supply:
18V / 230V
Power Supply Cord:
2,5 m
Tool weight with battery (EPTA):
2,3 - 2,7 kg
Product Dimensions (L x W x H)::
214 x 261 x 328 mm
DGA506Z:
Li-ion battery 18V:
-
Nominal Battery Voltage:
18 V
Voltage LXT:
Brushless Motor:
Battery protection:
No load speed:
8500 min⁻¹
Max. Depth of Cut:
29 mm
Spindle Thread:
M14
Bore Size (Arbor Diameter):
22,23 mm
Grinding Disc Diameter:
125 mm
Anti-Restart Function (NVR Switch):
Electronic brake:
Grip AVT:
Grinding Wheel:
Lock Nut Wrench:
Sound Pressure Level (LpA):
79 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Vibration Level (3 axes):
6,0 m/s²
Vibration Uncertainty (K Factor):
1,5 m/s²
Tool weight with battery (EPTA):
2,3 - 2,6 kg
Product Dimensions (L x W x H)::
362 x 140 x 151 mm
DHP481Z:
Li-ion battery 18V:
-
Nominal Battery Voltage:
18 V
Voltage LXT:
Battery protection:
Brushless Motor:
No load speed:
0 - 550 / 2100 min⁻¹
Max. fastening torque Hard/Soft:
115 / 60 Nm
Clutch torque setting:
21
Impacts per Minute (IPM):
0 - 8250 / 31 500 min⁻¹
Max. Drilling Diameter in Wood:
76 mm
Max. Drilling Diameter in Masonry:
16 mm
Max. Drilling Diameter in Concrete:
16 mm
Max. Drilling Diameter in Steel:
13 mm
Driving Shank:
1/2"-20UNF "
Drill Chuck Capacity:
1,5 - 13 mm
Sound Power Level (LWA):
96 dB(A)
Sound Pressure Level (LpA):
85 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Vibration Level (3 axes), Drilling:
≤ 2,5 m/s²
Vibration Level (3 axes), Impact Drilling:
6,5 m/s²
Vibration Uncertainty (K Factor):
1,5 m/s²
Tool weight with battery (EPTA):
2,4 - 2,7 kg
Product Dimensions (L x W x H)::
205 x 79 x 249 mm
Side Grip:
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion):
Li-ion
DHR202Z:
Li-ion battery 18V:
-
Nominal Battery Voltage:
18 V
Voltage LXT:
Battery protection:
Impact Energy:
1,9 J
Optimum Drilling Diameter Range in Concrete:
6 - 10 mm
Max. Drilling Diameter in Concrete:
20 mm
Max. Drilling Diameter in Wood:
26 mm
Max. Drilling Diameter in Steel:
13 mm
Impacts per Minute (IPM):
0 - 4000 min⁻¹
No load speed:
0 - 1100 min⁻¹
Side Grip:
Sound Power Level (LWA):
98 dB(A)
Sound Pressure Level (LpA):
87 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Vibration Level (3 axes), Drilling:
3 m/s²
Vibration Level (3 axes), Impact Drilling:
14,5 m/s²
Vibration: Chiselling:
11 m/s²
Vibration Uncertainty (K Factor):
1,5 m/s²
Product Dimensions (L x W x H)::
358 x 84 x 259 mm
Tool weight with battery (EPTA):
3,2 – 4,0 kg
DHS680Z:
Li-ion battery 18V:
-
Voltage LXT:
Max. Cutting Depth at 90°:
57 mm
Max. Cutting Depth at 45°:
41 mm
Max. Cutting Depth at 50°:
37 mm
Max. Bevel Range (Left):
0 / 50 °
No load speed:
5000 min⁻¹
Nominal Battery Voltage:
18 V
Battery protection:
Sound Power Level (LWA):
105 dB(A)
Sound Pressure Level (LpA):
83 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Vibration Level (3 axes):
≤ 2,5 m/s²
Vibration Uncertainty (K Factor):
1,5 m/s²
Tool weight with battery (EPTA):
3,0 - 3,3 kg
Product Dimensions (L x W x H)::
350 x 170 x 238 mm
Brushless Motor:
Blade:
165 x 20 mm
DJV181Z:
Li-ion battery 18V:
-
Voltage LXT:
Nominal Battery Voltage:
18 V
Brushless Motor:
Battery protection:
Impacts per Minute (IPM):
800 - 3500 min⁻¹
Length of Stroke:
26 mm
Max. Cutting Capacity in Wood (90°):
135 mm
Max. Cutting Capacity in Steel (90°):
10 mm
Capcity aluminium:
20 mm
Orbital Action:
Saw blade:
Sound Pressure Level (LpA):
78 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Vibration Level (3 axes), Cutting Chipboard:
6,5 m/s²
Vibration Level (3 axes), Cutting Sheet Metal:
5,0 m/s²
Vibration Uncertainty (K Factor):
1,5 m/s²
Tool weight with battery (EPTA):
2,3 - 2,6 kg
Product Dimensions (L x W x H)::
298 x 77 x 189 mm
DTD152Z:
Li-ion battery 18V:
-
Nominal Battery Voltage:
18 V
Voltage LXT:
Battery protection:
No load speed:
0 - 2900 min⁻¹
max fastening torgue impact drill:
165 Nm
Tightening Capacity Standard Bolt:
M5 - M16
Impacts per Minute (IPM):
0 - 3500 min⁻¹
Sound Power Level (LWA):
104 dB(A)
Sound Pressure Level (LpA):
93 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Vibration Level (3 axes), Fastening Bolt:
10,5 m/s²
Vibration Uncertainty (K Factor):
1,5 m/s²
Tool weight with battery (EPTA):
1,3 - 1,6 kg
Product Dimensions (L x W x H)::
137 x 79 x 238 mm
DTM51Z:
Li-ion battery 18V:
-
Nominal Battery Voltage:
18 V
Voltage LXT:
Battery protection:
Orbits per Minute:
6000 - 20000 min⁻¹
Oscillation Angle:
2 x 1,6 °
Pad size (triangle):
93 x 93 x 93 mm
Sound Pressure Level (LpA):
81 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Vibration Level (3 axes), Cutting Chipboard:
4,5 m/s²
Vibration Level (3 axes), Sanding:
3,0 m/s²
Vibration Uncertainty (K Factor):
1,5 m/s²
Tool weight with battery (EPTA):
2,0 - 2,4 kg
Product Dimensions (L x W x H)::
340 x 80 x 122 mm
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion):
LI-ion
DTW285Z:
Li-ion battery 18V:
-
Nominal Battery Voltage:
18 V
Voltage LXT:
Battery protection:
max fastening torgue impact drill:
70 / 140 / 280 Nm
No load speed:
0 - 1600 / 2100 / 2800 min⁻¹
Impacts per Minute (IPM):
0 - 1800 / 2600 / 3500 min⁻¹
Drive Square:
1/2 "
Tightening Capacity Standard Bolt:
M10 - M20
Tightening Capacity High Tensile Bolt:
M10 - M16
Sound Power Level (LWA):
107 dB(A)
Sound Pressure Level (LpA):
96 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Vibration Level (3 axes), Fastening Bolt:
11,5 m/s²
Vibration Uncertainty (K Factor):
1,5 m/s²
Tool weight with battery (EPTA):
1,5 - 1,8 kg
Product Dimensions (L x W x H)::
147 x 79 x 249 mm
Brushless Motor:
