User benefits
- Battery protection system with indicator light. Automatically shuts off power when battery power is low.
- Battery level indicator
Technical specifications
-
Nominal Battery Voltage18 V
-
Li-ion battery 18V2 x 3,0Ah (54Wh)
-
Average Charging Time22 min
-
Voltage LXT
-
Number of Batteries Supplied2
-
Battery protection

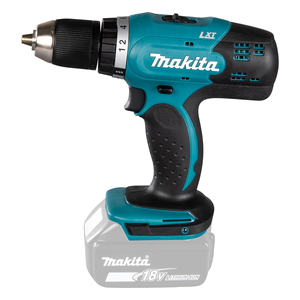

DDF453Z:
Li-ion battery 18V:
-
Nominal Battery Voltage:
18 V
Voltage LXT:
Battery protection:
No load speed:
0 - 400 / 1300 min⁻¹
Max. fastening torque Hard/Soft:
42 / 27 Nm
Clutch torque setting:
16
Max. Drilling Diameter in Wood:
36 mm
Max. Drilling Diameter in Steel:
13 mm
Driving Shank:
1/2"-20UNF "
Drill Chuck Capacity:
1,5 - 13 mm
Sound Pressure Level (LpA):
72 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Vibration Level (3 axes), Drilling:
≤ 2,5 m/s²
Vibration Uncertainty (K Factor):
1,5 m/s²
Tool weight with battery (EPTA):
1,7 - 2,0 kg
Product Dimensions (L x W x H)::
214 x 79 x 227 mm
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion):
Li-ion
DTD146Z:
Li-ion battery 18V:
-
Nominal Battery Voltage:
18 V
Voltage LXT:
Battery protection:
No load speed:
0 - 2300 min⁻¹
max fastening torgue impact drill:
160 Nm
Tightening Capacity Standard Bolt:
M5 - M14
Capacity machine screw:
M4 - M8
Tightening Capacity High Tensile Bolt:
M5 - M12
Impacts per Minute (IPM):
0 - 3200 min⁻¹
Sound Power Level (LWA):
104 dB(A)
Sound Pressure Level (LpA):
93 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Vibration Level (3 axes), Fastening Bolt:
15,5 m/s²
Vibration Uncertainty (K Factor):
2,0 m/s²
Tool weight with battery (EPTA):
1,3 - 1,6 kg
Product Dimensions (L x W x H)::
138 x 79 x 238 mm
Barcode
0088381812979
