Standard machines
View more
View less
Technical specifications
-
Nominal Battery Voltage18 V
-

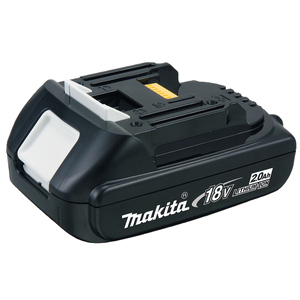

Li-ion battery 18V2 x 2,0Ah (36Wh)
-
Voltage LXT
-
Number of Batteries Supplied2
-
Battery protection
-
Product net weight6,12 kg
-
Product Dimensions (L x W x H):395 x 295 x 215 mm
DDF453Z:
Li-ion battery 18V:
-
Nominal Battery Voltage:
18 V
Voltage LXT:
Battery protection:
No load speed:
0 - 400 / 1300 min⁻¹
Max. fastening torque Hard/Soft:
42 / 27 Nm
Clutch torque setting:
16
Max. Drilling Diameter in Wood:
36 mm
Max. Drilling Diameter in Steel:
13 mm
Driving Shank:
1/2"-20UNF "
Drill Chuck Capacity:
1,5 - 13 mm
Sound Pressure Level (LpA):
72 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Vibration Level (3 axes), Drilling:
≤ 2,5 m/s²
Vibration Uncertainty (K Factor):
1,5 m/s²
Tool weight with battery (EPTA):
1,7 - 2,0 kg
Product Dimensions (L x W x H)::
214 x 79 x 227 mm
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion):
Li-ion
DTD152Z:
Li-ion battery 18V:
-
Nominal Battery Voltage:
18 V
Voltage LXT:
Battery protection:
No load speed:
0 - 2900 min⁻¹
max fastening torgue impact drill:
165 Nm
Tightening Capacity Standard Bolt:
M5 - M16
Impacts per Minute (IPM):
0 - 3500 min⁻¹
Sound Power Level (LWA):
104 dB(A)
Sound Pressure Level (LpA):
93 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Vibration Level (3 axes), Fastening Bolt:
10,5 m/s²
Vibration Uncertainty (K Factor):
1,5 m/s²
Tool weight with battery (EPTA):
1,3 - 1,6 kg
Product Dimensions (L x W x H)::
137 x 79 x 238 mm
Barcode
0088381813570
Symbols:
Laukku
