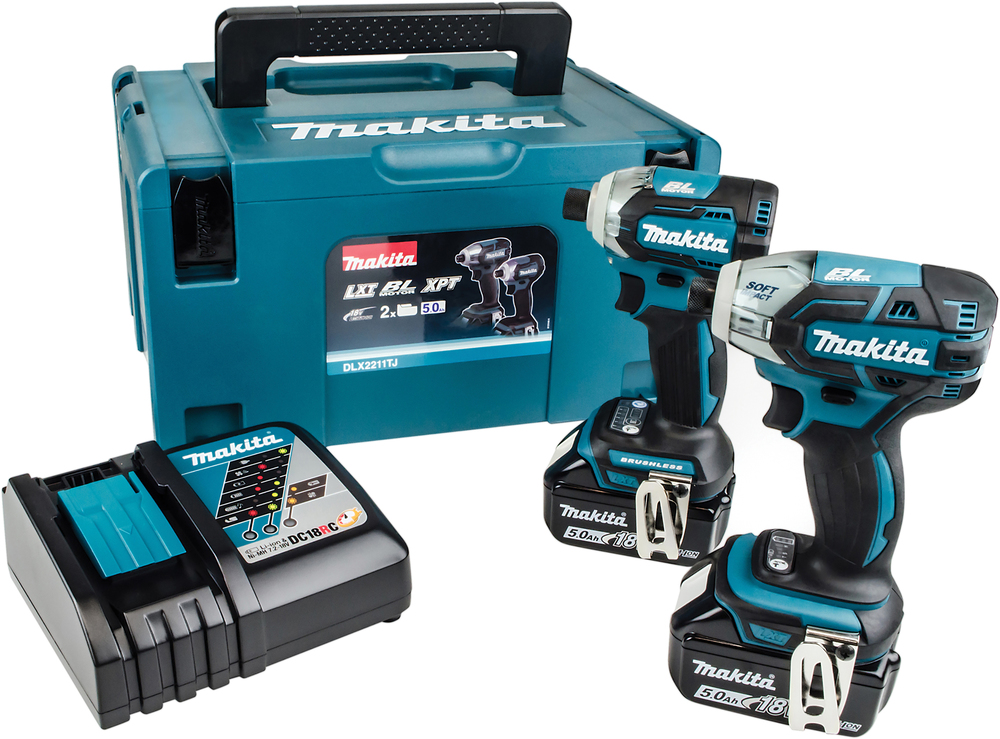

Combo Kit LXT®

DLX2211TJ

18V

Two-piece brushless tool set for professional use

Includes DTS141 + DTD170 + 2x5.0Ah + MAKPAC + charger

Not in stock

**General**

**Technical info**

**Related Products**

**Dust Extraction**

**Additional info**

**Support**

Technical specifications

Nominal Battery Voltage

18 V

Li-ion battery 18V

2 x 5,0Ah (90Wh)

Average Charging Time

45 min

Voltage LXT

Number of Batteries Supplied

Battery protection

DTD170Z:

Li-ion battery 18V:

Nominal Battery Voltage:

18 V

Voltage LXT:

Battery protection:

Brushless Motor:

No load speed:

0 - 1100 / 2100 / 3200 / 3600 min⁻¹

max fastening torgue impact drill:

175 Nm

Tightening Capacity Standard Bolt:

M5 - M16

Capacity machine screw:

M4 - M8

Tightening Capacity High Tensile Bolt:

M5 - M14

Impacts per Minute (IPM):

0 - 1100 / 2600 / 3600 min⁻¹

Sound Power Level (L_WA):

109 dB(A)

Sound Pressure Level (L_pA):

98 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes):

12,5 m/s²

Vibration Level (3 axes), Fastening Bolt:

12,5 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Tool weight with battery (EPTA):

1,2 - 1,5 kg

Product Dimensions (L x W x H)::

117 x 79 x 236 mm

DTS141Z:

Li-ion battery 18V:

Nominal Battery Voltage:

18 V

Voltage LXT:

Battery protection:

Brushless Motor:

No load speed:

0 - 1200 / 2000 / 3200 min⁻¹

max fastening torgue impact drill:

40 Nm

Tightening Capacity Standard Bolt:

M5 - M8

Impacts per Minute (IPM):

0 - 1400 / 2200 / 2700 min⁻¹

Max. Collet Capacity:

1/4" mm

Lenght of Blade:

136 mm

Sound Pressure Level (L_pA):

77 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes), Fastening Bolt:

7,0 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Tool weight with battery (EPTA):

1,3 - 1,6 kg

Product Dimensions (L x W x H)::

136 x 79 x 240 mm

Barcode

0088381841405
