Combo Kit LXT®
DLX2244PX118V

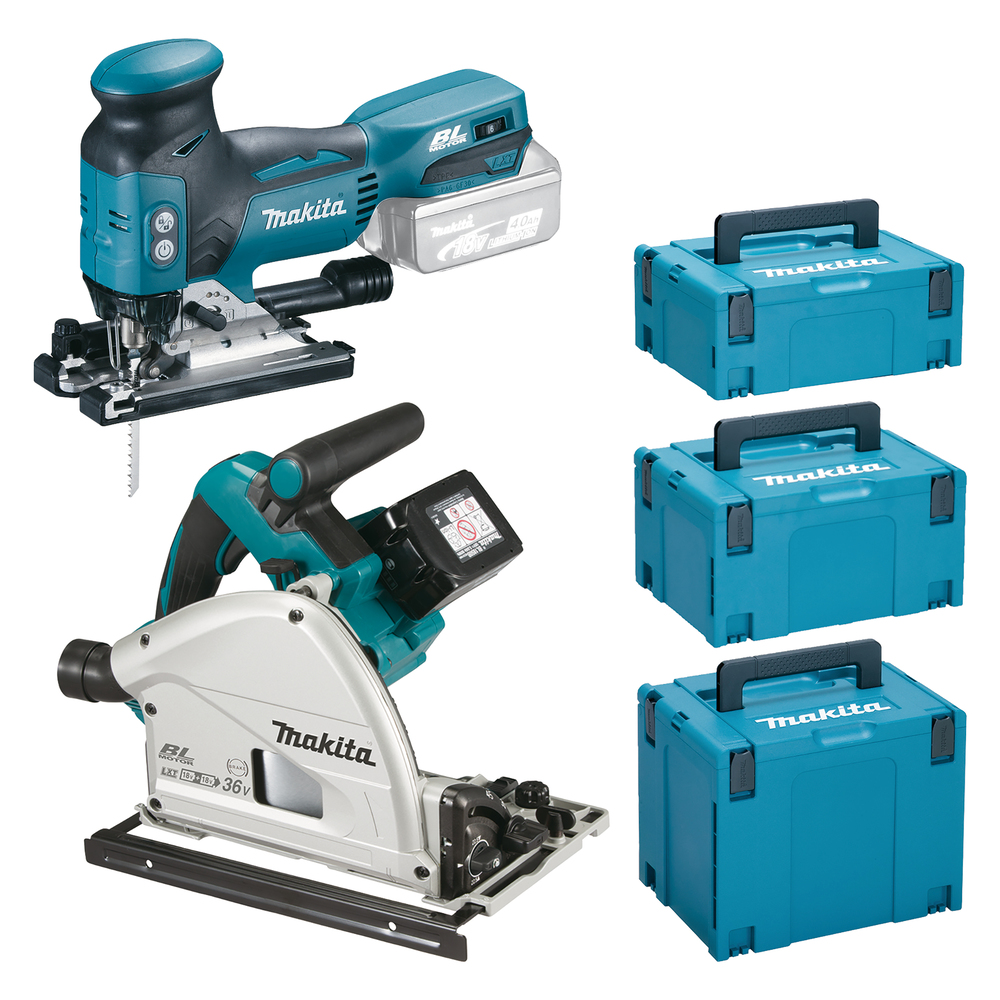

Precise brushless plunge cut circular saw for professional use and efficient brushless jigsaw with tool-less blade change.
A precise plunge cut circular saw with a brushless motor. Two 18V LXT batteries offer a voltage of 36V. This fast saw has an adjustable speed of between 2 500 and 6 300 min-1. An efficient saw with three-stage pendulum action and tool-less blade change. Engine speed can be adjusted between 800 and 3 500 min-1 from a dial to suit the material.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
Standard accessories
View more
View less
Standard machines
View more
View less
DJV181Z:
Li-ion battery 18V:
-
Voltage LXT:
Nominal Battery Voltage:
18 V
Brushless Motor:
Battery protection:
Impacts per Minute (IPM):
800 - 3500 min⁻¹
Length of Stroke:
26 mm
Max. Cutting Capacity in Wood (90°):
135 mm
Max. Cutting Capacity in Steel (90°):
10 mm
Capcity aluminium:
20 mm
Orbital Action:
Saw blade:
Sound Pressure Level (LpA):
78 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Vibration Level (3 axes), Cutting Chipboard:
6,5 m/s²
Vibration Level (3 axes), Cutting Sheet Metal:
5,0 m/s²
Vibration Uncertainty (K Factor):
1,5 m/s²
Tool weight with battery (EPTA):
2,3 - 2,6 kg
Product Dimensions (L x W x H)::
298 x 77 x 189 mm
DSP600Z:
Li-ion battery 18V:
-
Voltage LXT:
Max. Cutting Depth at 90°:
56 mm
Max. Cutting Depth at 45°:
40 mm
Max. Bevel Range (Left):
- 1 / 48 °
No load speed:
2500 - 6300 min⁻¹
Nominal Battery Voltage:
2 x 18 V
Battery protection:
Sound Power Level (LWA):
103 dB(A)
Sound Pressure Level (LpA):
92 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Vibration Level (3 axes):
≤ 2,5 m/s²
Vibration Uncertainty (K Factor):
1,5 m/s²
Tool weight with battery (EPTA):
4,4 - 5,1 kg
Product Dimensions (L x W x H)::
346 x 241 x 272 mm
Brushless Motor:
Blade:
165 x 20 mm
Barcode
0088381853156
