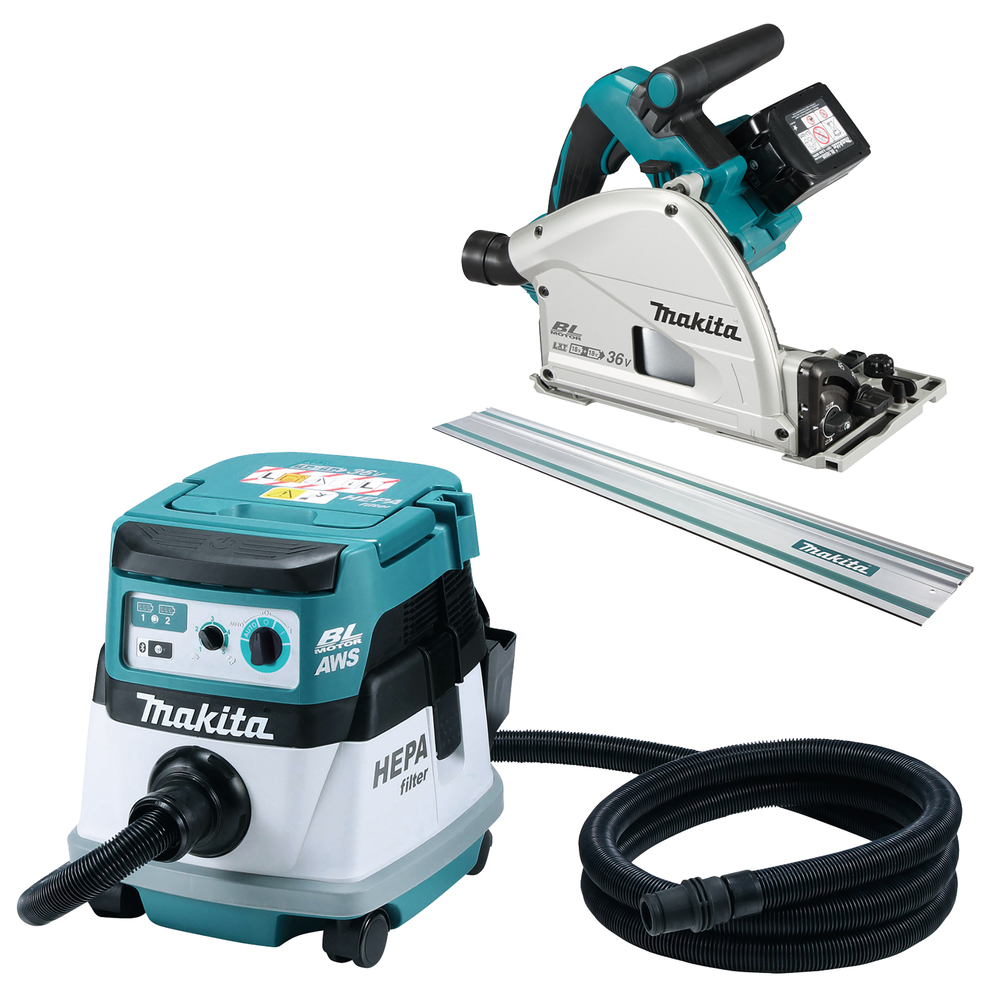

Combo Kit LXT®
DLX2274JX218V
Dust extractor with auto-start wireless system for cleaning or dust removal.
Accurate brushless plunge cut circular saw for precise and clean sawing
A versatile dust extractor that runs on two 18V LXT batteries. It meets the filter class ‘L’ and is equipped with the AWS. A precise plunge cut circular saw with a brushless motor. This fast saw has an adjustable speed of between 2 500 and 6 300 min-1.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
User benefits
- HEPA filter removes particles with an efficiency rating of 99.75%
Standard accessories
View more
View less
Standard machines
View more
View less
DSP601ZU:
Li-ion battery 18V:
-
Voltage LXT:
Max. Cutting Depth at 90°:
56 mm
Max. Cutting Depth at 45°:
40 mm
Max. Bevel Range (Left):
- 1 / 48 °
No load speed:
2500 - 6300 min⁻¹
Nominal Battery Voltage:
2 x 18 V
Battery protection:
Plastic Carrying Case:
Sound Power Level (LWA):
103 dB(A)
Sound Pressure Level (LpA):
92 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Vibration Level (3 axes):
≤ 2,5 m/s²
Vibration Uncertainty (K Factor):
1,5 m/s²
Tool weight with battery (EPTA):
4,4 - 5,1 kg
Product Dimensions (L x W x H)::
346 x 241 x 272 mm
Brushless Motor:
Max. Cutting Depth at 48°:
38 mm
Blade:
165 x 20 mm
AWS Chip included:
DVC864LZ:
Li-ion battery 18V:
-
Nominal Battery Voltage:
2 x 18 V
Voltage LXT:
Battery protection:
Brushless Motor:
Air volume:
2,1 m³/min
Max. sealed suction:
98 mbar
Continious use 18V / 5.0 Ah battery:
40 min
Continious use 18V / 6.0 Ah battery:
45 min
Vacuum hose length:
2,5 - 3,5 m
Vacuum hose diameter:
28 / 38 mm
Tank Capacity for Dust:
8 L
Dust Bag Assembly:
Cleaning set:
1
Sound Pressure Level (LpA):
70 dB(A)
Vibration Level (3 axes):
≤ 2,5 m/s²
Vibration Uncertainty (K Factor):
1,5 m/s²
Dust Class:
L
Degree of Dust Penetration:
99,99 %
Tool weight with battery (EPTA):
7,7 - 8,4 kg
Product Dimensions (L x W x H)::
366 x 334 x 368 mm
Barcode
0088381865791
