Combo Kit LXT®

DLX3084JX1

18V

Three-piece brushless tool set for professional use

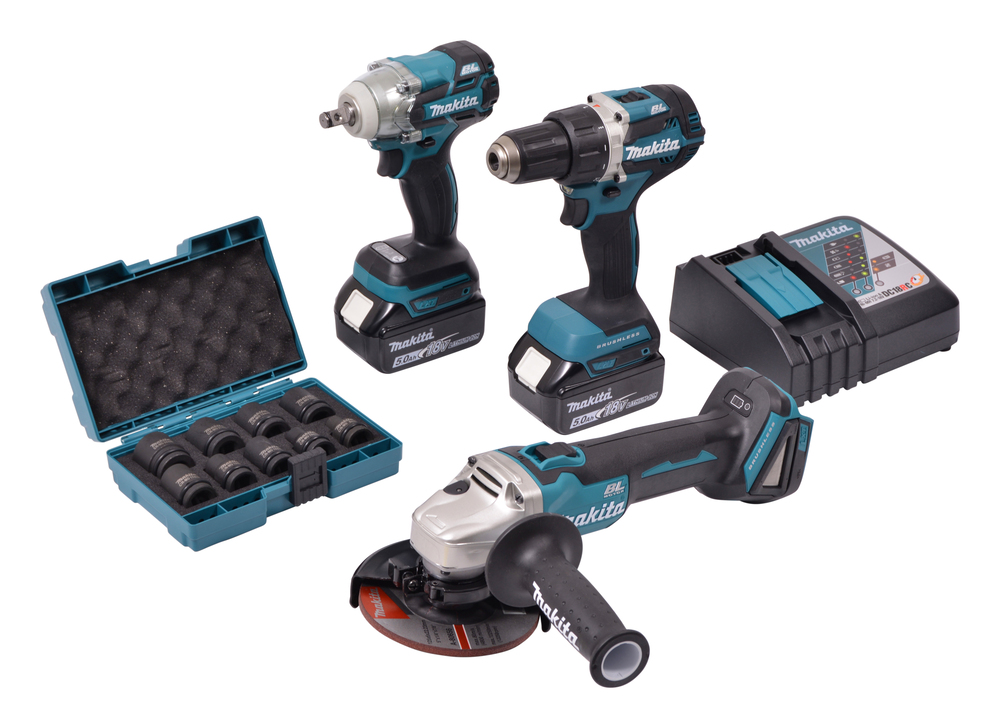

Three-piece brushless tool set for professional use. Includes the DDF484 drill, the DTW285 impact wrench, the DGA506 angle grinder and a socket set. Two 5.0Ah batteries and a rapid charger in a Makpac case.

Not in stock

**General**

**Technical info**

**Related Products**

**Dust Extraction**

**Additional info**

**Support**

DDF484Z:

Li-ion battery 18V:

Nominal Battery Voltage:

18 V

Voltage LXT:

Brushless Motor:

Battery protection:

No load speed:

0 - 500 / 2000 min⁻¹

Max. fastening torque Hard/Soft:

54 / 30 Nm

Clutch torque setting:

Max. Drilling Diameter in Wood:

38 mm

Max. Drilling Diameter in Steel:

13 mm

Driving Shank:

1/2"-20UNF "

Drill Chuck Capacity:

1,5 - 13 mm

Sound Pressure Level (L_pA):

76 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes), Drilling:

≤ 2,5 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Tool weight with battery (EPTA):

1,5 - 1,8 kg

Product Dimensions (L x W x H)::

172 x 79 x 261 mm

Battery Chemistry (Ni-Cd / Ni-MH / Li-ion):

Li-ion

DGA506Z:

Li-ion battery 18V:

Nominal Battery Voltage:

18 V

Voltage LXT:

Brushless Motor:

Battery protection:

No load speed:

8500 min⁻¹

Max. Depth of Cut:

29 mm

Spindle Thread:

M14

Bore Size (Arbor Diameter):

22,23 mm

Grinding Disc Diameter:

125 mm

Anti-Restart Function (NVR Switch):

Electronic brake:

Grip AVT:

Grinding Wheel:

Lock Nut Wrench:

Sound Pressure Level (L_pA):

79 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes):

6,0 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Tool weight with battery (EPTA):

2,3 - 2,6 kg

Product Dimensions (L x W x H)::

362 x 140 x 151 mm

DTW285Z:

Li-ion battery 18V:

Nominal Battery Voltage:

18 V

Voltage LXT:

Battery protection:

max fastening torgue impact drill:

70 / 140 / 280 Nm

No load speed:

0 - 1600 / 2100 / 2800 min⁻¹

Impacts per Minute (IPM):

0 - 1800 / 2600 / 3500 min⁻¹

Drive Square:

1/2 "

Tightening Capacity Standard Bolt:

M10 - M20

Tightening Capacity High Tensile Bolt:

M10 - M16

Sound Power Level (L_WA):

107 dB(A)

Sound Pressure Level (L_pA):

96 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes), Fastening Bolt:

11,5 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Tool weight with battery (EPTA):

1,5 - 1,8 kg

Product Dimensions (L x W x H)::

147 x 79 x 249 mm

Brushless Motor:

Barcode

0088381844024

Combo Kit LXT®

Combokits:

Standard accessories

Standard machines

DDF484Z:

DGA506Z:

DTW285Z:

Barcode

Optional accessories
