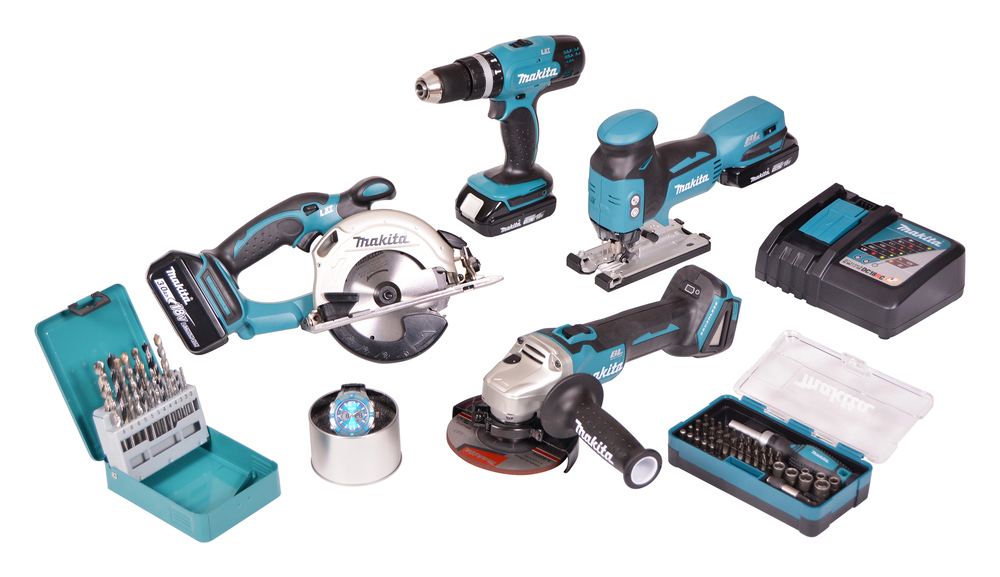

Kombo Kit 18 V

DLX4098YJX

Not in stock

**General**

**Technical info**

**Related Products**

**Dust Extraction**

**Additional info**

**Support**

Technical specifications

Nominal Battery Voltage

18 V

Li-ion battery 18V

2 x 1,5 - 1 x 3,0 (27Wh; 54Wh)

Voltage LXT

Number of Batteries Supplied

3

Battery protection

DGA506Z:

Li-ion battery 18V:

-

Nominal Battery Voltage:

18 V

Voltage LXT:

Brushless Motor:

Battery protection:

No load speed:

8500 min⁻¹

Max. Depth of Cut:

29 mm

Spindle Thread:

M14

Bore Size (Arbor Diameter):

22,23 mm

Grinding Disc Diameter:

125 mm

Anti-Restart Function (NVR Switch):

Electronic brake:

Grip AVT:

Grinding Wheel:

Lock Nut Wrench:

Sound Pressure Level (L_pA):

79 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes):

6,0 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Tool weight with battery (EPTA):

2,3 - 2,6 kg

Product Dimensions (L x W x H)::

362 x 140 x 151 mm

DHP453RYJ:

Li-ion battery 18V:

-

Nominal Battery Voltage:

18 V

Voltage LXT:

Battery protection:

No load speed:

0 - 400 / 1300 min⁻¹

Max. fastening torque Hard/Soft:

42 / 27 Nm

Clutch torque setting:

16

Impacts per Minute (IPM):

0 - 6000 / 19 500 min⁻¹

Max. Drilling Diameter in Wood:

36 mm

Max. Drilling Diameter in Masonry:

13 mm

Max. Drilling Diameter in Concrete:

13 mm

Max. Drilling Diameter in Steel:

13 mm

Capacity standard screw:

187 kpl

Driving Shank:

1/2"-20UNF "

Drill Chuck Capacity:

1,5 - 13 mm

Sound Power Level (L_WA):

94 dB(A)

Sound Pressure Level (L_pA):

83 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes), Drilling:

≤ 2,5 m/s²

Vibration Level (3 axes), Impact Drilling:

10,0 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Tool weight with battery (EPTA):

1,7 - 2,0 kg

Product Dimensions (L x W x H)::

239 x 79 x 227 mm

Battery Chemistry (Ni-Cd / Ni-MH / Li-ion):

Li-ion

DJV181Z:

Li-ion battery 18V:

-

Voltage LXT:

Nominal Battery Voltage:

18 V

Brushless Motor:

Battery protection:

Impacts per Minute (IPM):

800 - 3500 min⁻¹

Length of Stroke:

26 mm

Max. Cutting Capacity in Wood (90°):

135 mm

Max. Cutting Capacity in Steel (90°):

10 mm

Capcity aluminium:

20 mm

Orbital Action:

Saw blade:

Sound Pressure Level (L_pA):

78 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes), Cutting Chipboard:

6,5 m/s²

Vibration Level (3 axes), Cutting Sheet Metal:

5,0 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Tool weight with battery (EPTA):

2,3 - 2,6 kg

Product Dimensions (L x W x H)::

298 x 77 x 189 mm

DSS501Z:

Li-ion battery 18V:

-

Voltage LXT:

Max. Cutting Depth at 90°:

51 mm

Max. Cutting Depth at 45°:

35 mm

Max. Cutting Depth at 50°:

30 mm

Max. Bevel Range (Left):

0 / 50 °

No load speed:

3600 min⁻¹

Nominal Battery Voltage:

18 V

Battery protection:

Sound Power Level (L_WA):

103 dB(A)

Sound Pressure Level (L_pA):

92 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes):

≤ 2,5 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Tool weight with battery (EPTA):

2,4 - 2,7 kg

Product Dimensions (L x W x H)::

364 x 183 x 201 mm

Blade:

136 x 20 mm

Barcode

0088381846059
