Combo Kit LXT ®

DLX5074TJ

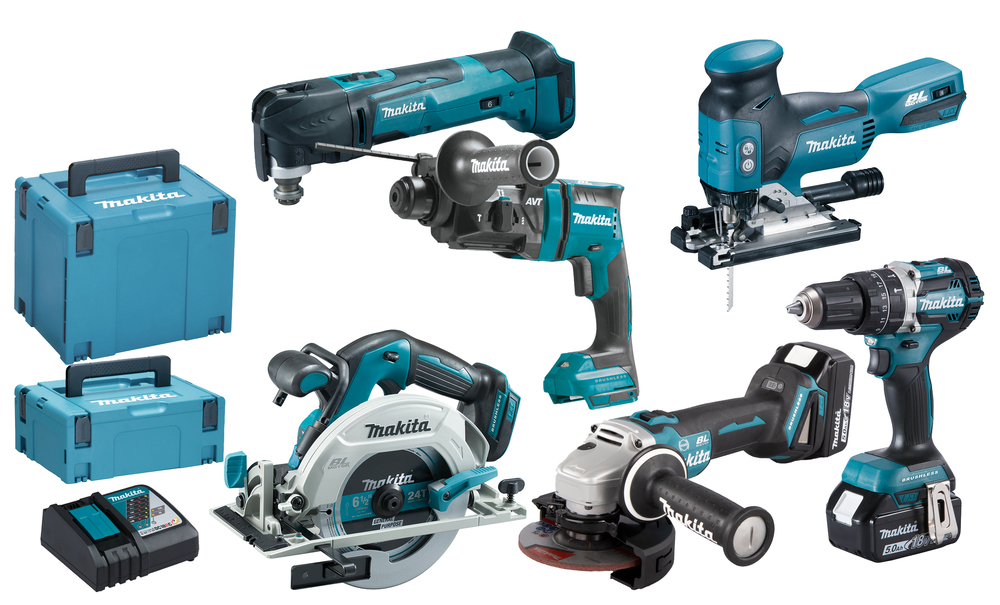

Combo kit with combi drill, multi tool, circular saw, jigsaw, rotary hammer and a angle grinder.

A 18V LXT® kit with comprehensive set of cordless tools. Includes the DHP484 combi drill, DHS680 circular saw, DJV181 jigsaw, DHR182 rotary hammer and DGA506 angle grinder. Two 5,0 Ah batteries and a charger in a Makpac case.

Not in stock

**General**

**Technical info**

**Related Products**

**Dust Extraction**

**Additional info**

**Support**

Technical specifications

Nominal Battery Voltage

18 V

Li-ion battery 18V

2 x 5,0Ah (90Wh)

Average Charging Time

45 min

Voltage LXT

Number of Batteries Supplied

Battery protection

DGA506Z:

Li-ion battery 18V:

Nominal Battery Voltage:

18 V

Voltage LXT:

Brushless Motor:

Battery protection:

No load speed:

8500 min⁻¹

Max. Depth of Cut:

29 mm

Spindle Thread:

M14

Bore Size (Arbor Diameter):

22,23 mm

Grinding Disc Diameter:

125 mm

Anti-Restart Function (NVR Switch):

Electronic brake:

Grip AVT:

Grinding Wheel:

Lock Nut Wrench:

Sound Pressure Level (L_pA):

79 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes):

6,0 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Tool weight with battery (EPTA):

2,3 - 2,6 kg

Product Dimensions (L x W x H)::

362 x 140 x 151 mm

DHP484Z:

Li-ion battery 18V:

Nominal Battery Voltage:

18 V

Voltage LXT:

Battery protection:

Brushless Motor:

No load speed:

0 - 500 / 2000 min⁻¹

Max. fastening torque Hard/Soft:

54 / 30 Nm

Clutch torque setting:

Impacts per Minute (IPM):

0 - 7500 / 30 000 min⁻¹

Max. Drilling Diameter in Wood:

38 mm

Max. Drilling Diameter in Masonry:

13 mm

Max. Drilling Diameter in Concrete:

13 mm

Max. Drilling Diameter in Steel:

13 mm

Driving Shank:

1/2"-20UNF "

Drill Chuck Capacity:

1,5 - 13 mm

Sound Power Level (L_WA):

99 dB(A)

Sound Pressure Level (L_pA):

88 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes), Drilling:

≤ 2,5 m/s²

Vibration Level (3 axes), Impact Drilling:

8,0 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Tool weight with battery (EPTA):

1,6 - 1,8 kg

Product Dimensions (L x W x H)::

182 x 79 x 261 mm

Battery Chemistry (Ni-Cd / Ni-MH / Li-ion):

Li-ion

DHR182Z:

Li-ion battery 18V:

Nominal Battery Voltage:

18 V

Voltage LXT:

Battery protection:

Brushless Motor:

Impact Energy:

1,7 J

Optimum Drilling Diameter Range in Concrete:

5 - 8 mm

Max. Drilling Diameter in Concrete:

18 mm

Max. Drilling Diameter in Wood:

24 mm

Max. Drilling Diameter in Steel:

13 mm

Impacts per Minute (IPM):

0 - 5000 min⁻¹

No load speed:

0 - 1350 min⁻¹

Side Grip:

Sound Power Level (L_WA):

100 dB(A)

Sound Pressure Level (L_pA):

89 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes), Drilling:

2,5 m/s²

Vibration Level (3 axes), Impact Drilling:

11,0 m/s²

Vibration: Chiselling:

9,0 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Product Dimensions (L x W x H)::

301 x 82 x 285 mm

Drilling diameter with TCT core bit:

35 mm

AWS ready:

Tool weight with battery (EPTA):

2,4 - 3,2 kg

DHS680Z:

Li-ion battery 18V:

Voltage LXT:

Max. Cutting Depth at 90°:

57 mm

Max. Cutting Depth at 45°:

41 mm

Max. Cutting Depth at 50°:

37 mm

Max. Bevel Range (Left):

0 / 50 °

No load speed:

5000 min⁻¹

Nominal Battery Voltage:

18 V

Battery protection:

Sound Power Level (L_WA):

105 dB(A)

Sound Pressure Level (L_pA):

83 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes):

≤ 2,5 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Tool weight with battery (EPTA):

3,0 - 3,3 kg

Product Dimensions (L x W x H)::

350 x 170 x 238 mm

Brushless Motor:

Blade:

165 x 20 mm

DJV181Z:

Li-ion battery 18V:

Voltage LXT:

Nominal Battery Voltage:

18 V

Brushless Motor:

Battery protection:

Impacts per Minute (IPM):

800 - 3500 min⁻¹

Length of Stroke:

26 mm

Max. Cutting Capacity in Wood (90°):

135 mm

Max. Cutting Capacity in Steel (90°):

10 mm

Capcity aluminium:

20 mm

Orbital Action:

Saw blade:

Sound Pressure Level (L_pA):

78 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes), Cutting Chipboard:

6,5 m/s²

Vibration Level (3 axes), Cutting Sheet Metal:

5,0 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Tool weight with battery (EPTA):

2,3 - 2,6 kg

Product Dimensions (L x W x H)::

298 x 77 x 189 mm

DTM51Z:

Li-ion battery 18V:

Nominal Battery Voltage:

18 V

Voltage LXT:

Battery protection:

Orbits per Minute:

6000 - 20000 min⁻¹

Oscillation Angle:

2 x 1,6 °

Pad size (triangle):

93 x 93 x 93 mm

Sound Pressure Level (L_pA):

81 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes), Cutting Chipboard:

4,5 m/s²

Vibration Level (3 axes), Sanding:

3,0 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Tool weight with battery (EPTA):

2,0 - 2,4 kg

Product Dimensions (L x W x H)::

340 x 80 x 122 mm

Battery Chemistry (Ni-Cd / Ni-MH / Li-ion):

LI-ion

Barcode

0088381753647
