Combo Kit LXT ®

DLX5081TJ

18 V

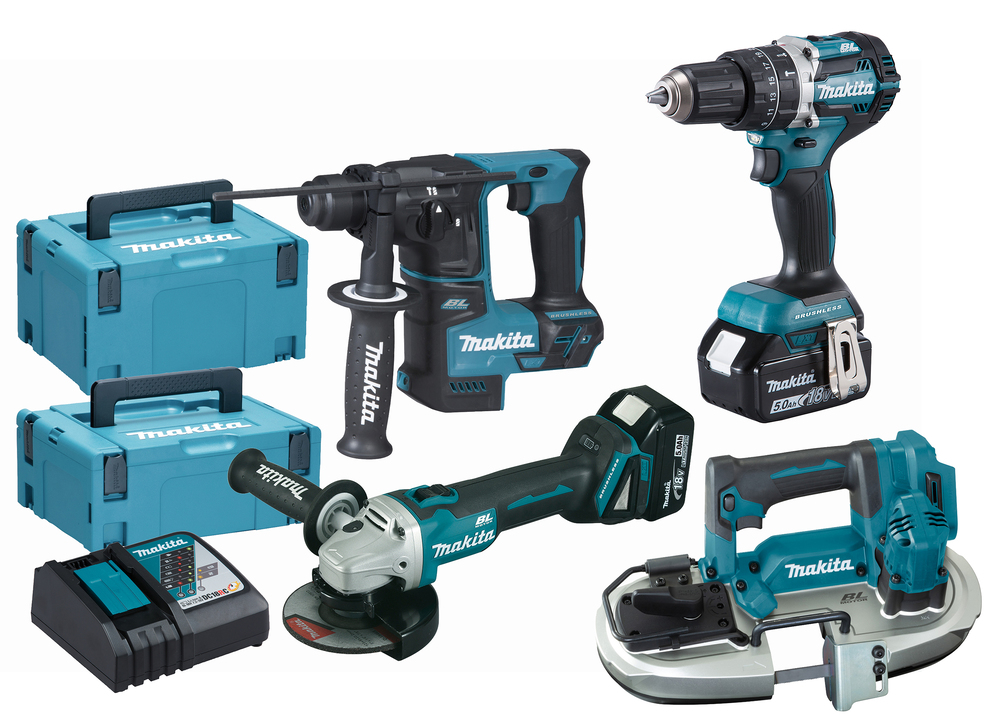

Combo kit with four cordless tools for versatile applications

Four brushless and cordless 18V LXT tools for versatile and demanding work. The kit includes cordless combi drill, rotary hammer, portable band saw, angle grinder. Comes with two 5.0 Ah batteries and a rapid charger in a Makpac case.

Not in stock

**General**

**Technical info**

**Related Products**

**Dust Extraction**

**Additional info**

**Support**

DGA506Z:

Li-ion battery 18V:

Nominal Battery Voltage:

18 V

Voltage LXT:

Brushless Motor:

Battery protection:

No load speed:

8500 min⁻¹

Max. Depth of Cut:

29 mm

Spindle Thread:

M14

Bore Size (Arbor Diameter):

22,23 mm

Grinding Disc Diameter:

125 mm

Anti-Restart Function (NVR Switch):

Electronic brake:

Grip AVT:

Grinding Wheel:

Lock Nut Wrench:

Sound Pressure Level (L_pA):

79 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes):

6,0 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Tool weight with battery (EPTA):

2,3 - 2,6 kg

Product Dimensions (L x W x H)::

362 x 140 x 151 mm

DHP484Z:

Li-ion battery 18V:

Nominal Battery Voltage:

18 V

Voltage LXT:

Battery protection:

Brushless Motor:

No load speed:

0 - 500 / 2000 min⁻¹

Max. fastening torque Hard/Soft:

54 / 30 Nm

Clutch torque setting:

Impacts per Minute (IPM):

0 - 7500 / 30 000 min⁻¹

Max. Drilling Diameter in Wood:

38 mm

Max. Drilling Diameter in Masonry:

13 mm

Max. Drilling Diameter in Concrete:

13 mm

Max. Drilling Diameter in Steel:

13 mm

Driving Shank:

1/2"-20UNF "

Drill Chuck Capacity:

1,5 - 13 mm

Sound Power Level (L_WA):

99 dB(A)

Sound Pressure Level (L_pA):

88 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes), Drilling:

≤ 2,5 m/s²

Vibration Level (3 axes), Impact Drilling:

8,0 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Tool weight with battery (EPTA):

1,6 - 1,8 kg

Product Dimensions (L x W x H)::

182 x 79 x 261 mm

Battery Chemistry (Ni-Cd / Ni-MH / Li-ion):

Li-ion

DHR171Z:

Li-ion battery 18V:

Nominal Battery Voltage:

18 V

Voltage LXT:

Battery protection:

Brushless Motor:

Impact Energy:

1,2 J

Optimum Drilling Diameter Range in Concrete:

5 - 8 mm

Max. Drilling Diameter in Concrete:

17 mm

Max. Drilling Diameter in Wood:

13 mm

Max. Drilling Diameter in Steel:

10 mm

Impacts per Minute (IPM):

0 - 4800 min⁻¹

No load speed:

0 - 680 min⁻¹

Side Grip:

Sound Power Level (L_WA):

97 dB(A)

Sound Pressure Level (L_pA):

86 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes), Drilling:

2,5 m/s²

Vibration Level (3 axes), Impact Drilling:

9,0 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Product Dimensions (L x W x H)::

273 x 86 x 211 mm

Tool weight with battery (EPTA):

2,1 - 2,8 kg

DPB184Z:

Li-ion battery 18V:

Nominal Battery Voltage:

18 V

Voltage LXT:

Brushless Motor:

Battery protection:

Blade:

730 x 13 x 0,5 mm

Cutting Capacity Mild Steel (up to 400N/mm²):

51 x 51 mm

Blade rapidity:

0 - 3,2 m/s

Sound Power Level (L_WA):

90 dB(A)

Sound Pressure Level (L_pA):

80 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes):

≤ 2,5 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Tool weight with battery (EPTA):

3,3 - 3,6 kg

Product Dimensions (L x W x H)::

373 x 162 x 223 mm

Barcode

0088381758475
