Combo Kit LXT ®
DLX5082TJ18 V
Combo kit with five brushless tools for versatile use

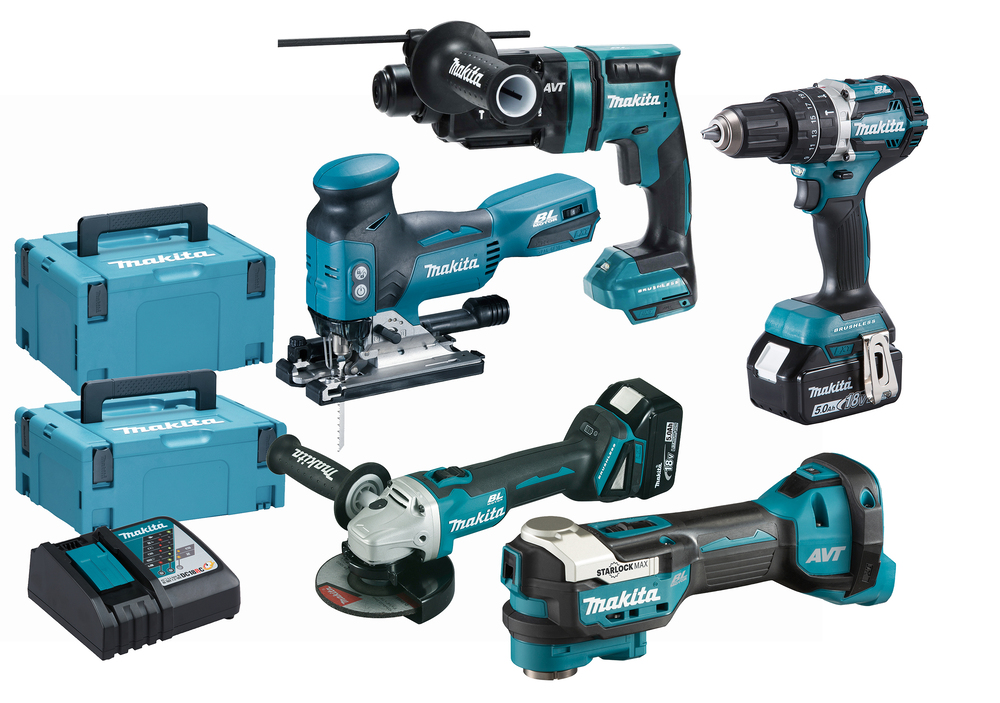

A high-quality five-piece cordless and brushless 18V LXT kit for daily use on building and renovation sites. Includes the DDF484 drill, DHR182 rotary hammer, DJV181 jigsaw, DGA506 Angle grinder and DTM52 Multi tool. Two 5,0 Ah batteries and a rapid charger in a Makpac case.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
Combokits:
View more
View less
Standard accessories
View more
View less
Standard machines
View more
View less
DGA506Z:
Li-ion battery 18V:
-
Nominal Battery Voltage:
18 V
Voltage LXT:
Brushless Motor:
Battery protection:
No load speed:
8500 min⁻¹
Max. Depth of Cut:
29 mm
Spindle Thread:
M14
Bore Size (Arbor Diameter):
22,23 mm
Grinding Disc Diameter:
125 mm
Anti-Restart Function (NVR Switch):
Electronic brake:
Grip AVT:
Grinding Wheel:
Lock Nut Wrench:
Sound Pressure Level (LpA):
79 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Vibration Level (3 axes):
6,0 m/s²
Vibration Uncertainty (K Factor):
1,5 m/s²
Tool weight with battery (EPTA):
2,3 - 2,6 kg
Product Dimensions (L x W x H)::
362 x 140 x 151 mm
DHP484Z:
Li-ion battery 18V:
-
Nominal Battery Voltage:
18 V
Voltage LXT:
Battery protection:
Brushless Motor:
No load speed:
0 - 500 / 2000 min⁻¹
Max. fastening torque Hard/Soft:
54 / 30 Nm
Clutch torque setting:
21
Impacts per Minute (IPM):
0 - 7500 / 30 000 min⁻¹
Max. Drilling Diameter in Wood:
38 mm
Max. Drilling Diameter in Masonry:
13 mm
Max. Drilling Diameter in Concrete:
13 mm
Max. Drilling Diameter in Steel:
13 mm
Driving Shank:
1/2"-20UNF "
Drill Chuck Capacity:
1,5 - 13 mm
Sound Power Level (LWA):
99 dB(A)
Sound Pressure Level (LpA):
88 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Vibration Level (3 axes), Drilling:
≤ 2,5 m/s²
Vibration Level (3 axes), Impact Drilling:
8,0 m/s²
Vibration Uncertainty (K Factor):
1,5 m/s²
Tool weight with battery (EPTA):
1,6 - 1,8 kg
Product Dimensions (L x W x H)::
182 x 79 x 261 mm
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion):
Li-ion
DHR182Z:
Li-ion battery 18V:
-
Nominal Battery Voltage:
18 V
Voltage LXT:
Battery protection:
Brushless Motor:
Impact Energy:
1,7 J
Optimum Drilling Diameter Range in Concrete:
5 - 8 mm
Max. Drilling Diameter in Concrete:
18 mm
Max. Drilling Diameter in Wood:
24 mm
Max. Drilling Diameter in Steel:
13 mm
Impacts per Minute (IPM):
0 - 5000 min⁻¹
No load speed:
0 - 1350 min⁻¹
Side Grip:
Sound Power Level (LWA):
100 dB(A)
Sound Pressure Level (LpA):
89 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Vibration Level (3 axes), Drilling:
2,5 m/s²
Vibration Level (3 axes), Impact Drilling:
11,0 m/s²
Vibration: Chiselling:
9,0 m/s²
Vibration Uncertainty (K Factor):
1,5 m/s²
Product Dimensions (L x W x H)::
301 x 82 x 285 mm
Drilling diameter with TCT core bit:
35 mm
AWS ready:
Tool weight with battery (EPTA):
2,4 - 3,2 kg
DJV181Z:
Li-ion battery 18V:
-
Voltage LXT:
Nominal Battery Voltage:
18 V
Brushless Motor:
Battery protection:
Impacts per Minute (IPM):
800 - 3500 min⁻¹
Length of Stroke:
26 mm
Max. Cutting Capacity in Wood (90°):
135 mm
Max. Cutting Capacity in Steel (90°):
10 mm
Capcity aluminium:
20 mm
Orbital Action:
Saw blade:
Sound Pressure Level (LpA):
78 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Vibration Level (3 axes), Cutting Chipboard:
6,5 m/s²
Vibration Level (3 axes), Cutting Sheet Metal:
5,0 m/s²
Vibration Uncertainty (K Factor):
1,5 m/s²
Tool weight with battery (EPTA):
2,3 - 2,6 kg
Product Dimensions (L x W x H)::
298 x 77 x 189 mm
DTM52Z:
Li-ion battery 18V:
-
Nominal Battery Voltage:
18 V
Voltage LXT:
Battery protection:
Orbits per Minute:
10000 - 20000 min⁻¹
Oscillation Angle:
2 x 1,8 °
Pad size (triangle):
93 x 93 x 93 mm
Sound Pressure Level (LpA):
69 - 76 dB(A)
Noise Uncertainty (K Factor):
3 dB(A)
Vibration Level (3 axes), Cutting Chipboard:
2,5 ≤ m/s²
Vibration Level (3 axes), Sanding:
2,5 ≤ m/s²
Vibration Uncertainty (K Factor):
1,5 m/s²
Tool weight with battery (EPTA):
1,7 - 2,0 kg
Product Dimensions (L x W x H)::
305 - 322 x 95 x 126 mm
Brushless Motor:
Barcode
0088381758468
