Combo Kit LXT®

DLX6087TJ1

18V

Handy combo kit with a lamp and a radio

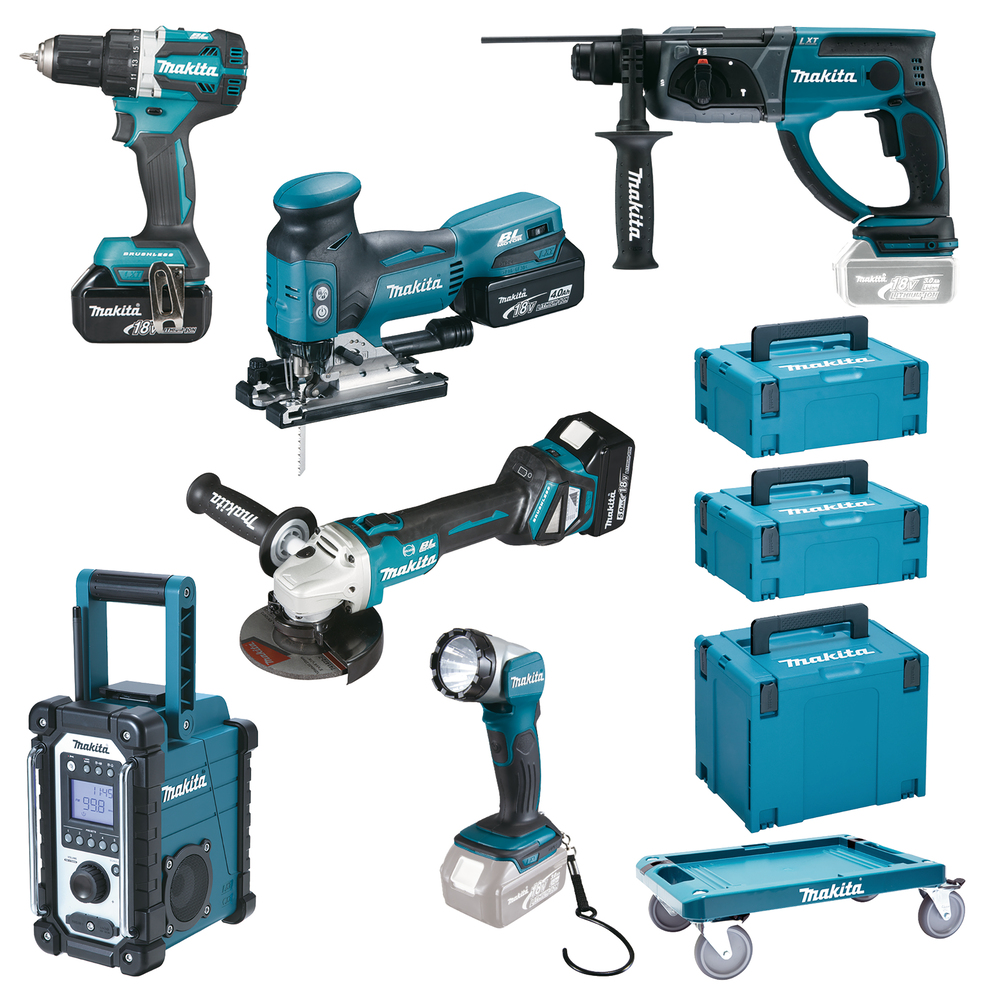

LXT® 18V Cordless Combo Kit for heavy duty use. Includes DGA513Z angle grinder, DDF484Z Drill Driver, DJV181Z jigsaw, DHR202Z rotary hammer, DEADML802 lamp and Makita radio DMR107. Three 5.0 Ah batteries and rapid charger for continuous operation. The kit includes three Makpac stacking cases with conecting clips and a Makpac wheel carrier.

Not in stock

**General**

**Technical info**

**Related Products**

**Dust Extraction**

**Additional info**

**Support**

Technical specifications

Nominal Battery Voltage

18 V

Li-ion battery 18V

3 x 5,0Ah (90Wh)

Voltage LXT

Number of Batteries Supplied

Battery protection

DDF484Z:

Li-ion battery 18V:

Nominal Battery Voltage:

18 V

Voltage LXT:

Brushless Motor:

Battery protection:

No load speed:

0 - 500 / 2000 min⁻¹

Max. fastening torque Hard/Soft:

54 / 30 Nm

Clutch torque setting:

Max. Drilling Diameter in Wood:

38 mm

Max. Drilling Diameter in Steel:

13 mm

Driving Shank:

1/2"-20UNF "

Drill Chuck Capacity:

1,5 - 13 mm

Sound Pressure Level (L_pA):

76 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes), Drilling:

≤ 2,5 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Tool weight with battery (EPTA):

1,5 - 1,8 kg

Product Dimensions (L x W x H)::

172 x 79 x 261 mm

Battery Chemistry (Ni-Cd / Ni-MH / Li-ion):

Li-ion

DEADML802:

Nominal Battery Voltage:

14,4 / 18 V

Voltage LXT:

Li-ion battery 18V:

Battery protection:

Luminous flux:

180 Lumen

Illuminance:

4000 lx

LED wattage:

3,2 W

Continious use 18V / 2.0 Ah battery:

10 h

Continious use 18V / 4.0 Ah battery:

20 h

Continious use 18V / 5.0 Ah battery:

23 h

Continious use 18V / 6.0 Ah battery:

27 h

Tool weight with battery (EPTA):

0,64 - 1,0 kg

Product Dimensions (L x W x H)::

272 x 79 x 116 mm

DGA513Z:

Nominal Battery Voltage:

18 V

Voltage LXT:

Brushless Motor:

Battery protection:

No load speed:

3000 - 8500 min⁻¹

Max. Depth of Cut:

29 mm

Bore Size (Arbor Diameter):

22,23 mm

Grinding Disc Diameter:

125 mm

Anti-Restart Function (NVR Switch):

Electronic brake:

Grip AVT:

Grinding Wheel:

Lock Nut Wrench:

Sound Pressure Level (L_pA):

79 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes):

6,0 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Tool weight with battery (EPTA):

2,4 - 3,0 kg

Product Dimensions (L x W x H)::

382 x 140 x 145 mm

DHR202Z:

Li-ion battery 18V:

Nominal Battery Voltage:

18 V

Voltage LXT:

Battery protection:

Impact Energy:

1,9 J

Optimum Drilling Diameter Range in Concrete:

6 - 10 mm

Max. Drilling Diameter in Concrete:

20 mm

Max. Drilling Diameter in Wood:

26 mm

Max. Drilling Diameter in Steel:

13 mm

Impacts per Minute (IPM):

0 - 4000 min⁻¹

No load speed:

0 - 1100 min⁻¹

Side Grip:

Sound Power Level (L_WA):

98 dB(A)

Sound Pressure Level (L_pA):

87 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes), Drilling:

3 m/s²

Vibration Level (3 axes), Impact Drilling:

14,5 m/s²

Vibration: Chiselling:

11 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Product Dimensions (L x W x H)::

358 x 84 x 259 mm

Tool weight with battery (EPTA):

3,2 – 4,0 kg

DJV181Z:

Li-ion battery 18V:

Voltage LXT:

Nominal Battery Voltage:

18 V

Brushless Motor:

Battery protection:

Impacts per Minute (IPM):

800 - 3500 min⁻¹

Length of Stroke:

26 mm

Max. Cutting Capacity in Wood (90°):

135 mm

Max. Cutting Capacity in Steel (90°):

10 mm

Capcity aluminium:

20 mm

Orbital Action:

Saw blade:

Sound Pressure Level (L_pA):

78 dB(A)

Noise Uncertainty (K Factor):

3 dB(A)

Vibration Level (3 axes), Cutting Chipboard:

6,5 m/s²

Vibration Level (3 axes), Cutting Sheet Metal:

5,0 m/s²

Vibration Uncertainty (K Factor):

1,5 m/s²

Tool weight with battery (EPTA):

2,3 - 2,6 kg

Product Dimensions (L x W x H)::

298 x 77 x 189 mm

DMR107:

Nominal Battery Voltage:

7,2 - 18 V

CXT Battery:

Voltage LXT:

Li-ion battery 7,2V:

Li-ion battery 12V max:

Li-ion battery 18V:

Battery protection:

Batteries:

2 x 1,5 (AA)

Frequency Range AM:

522 - 1629 kHz

Frequency Range FM:

87,5 - 108 MHz

Continious use 18V / 4.0 Ah battery:

28 h

Continious use 18V / 5.0 Ah battery:

35 h

Power Supply:

DC12V 700mA (SE00000078)

International Protection Class (IP):

Tool weight with battery (EPTA):

4,6 kg

Product Dimensions (L x W x H)::

280 x 163 x 302 mm

Music Power:

2 x 3,5 W

Barcode

0088381866040
