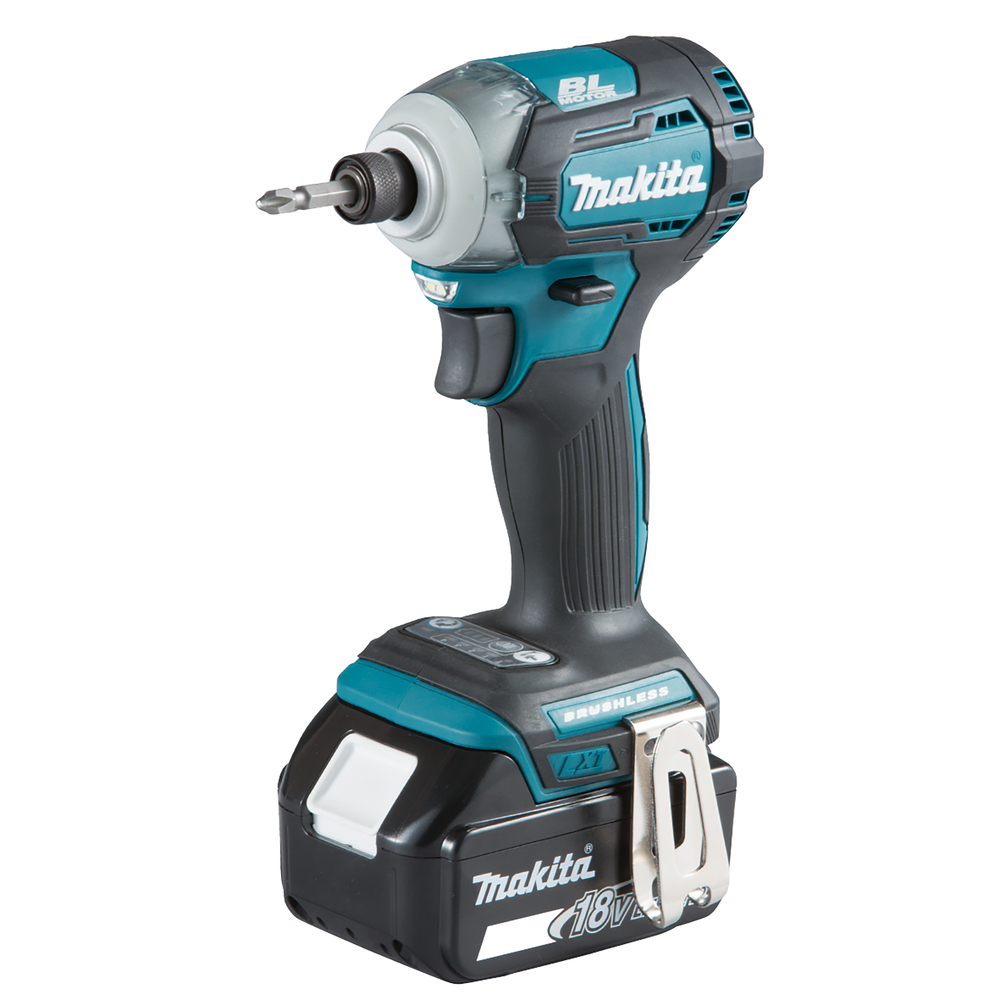

Impact driver LXT®
DTD170RFJ18V • 1/4" • 175 Nm • 0 – 3 600 min⁻¹
Compact brushless impact driver for quick driving
A compact and light brushless impact driver with a hex. 1/4" drive shank. A small and light tool that is easy to use but offers a max. fastening torque of 175 Nm. Four power settings, suitable for quick driving. Handy LED light.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
User benefits
- Battery level indicator
- LED light illuminates the work site
- Body model - delivered without battery and charger.
Standard accessories
View more
View less
Standard machines
View more
View less
Technical specifications
-
Li-ion battery 18V-
-
Nominal Battery Voltage18 V
-
Voltage LXT
-
Battery protection
-
No load speed0 - 1100 / 2100 / 3200 / 3600 min⁻¹
-
max fastening torgue impact drill175 Nm
-
Tightening Capacity Standard BoltM5 - M16
-
Capacity machine screwM4 - M8
-
Tightening Capacity High Tensile BoltM5 - M14
-
Impacts per Minute (IPM)0 - 1100 / 2600 / 3600 min⁻¹
-
Sound Power Level (LWA)109 dB(A)
-
Sound Pressure Level (LpA)98 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Vibration Level (3 axes)12,5 m/s²
-
Vibration Level (3 axes), Fastening Bolt12,5 m/s²
-
Vibration Uncertainty (K Factor)1,5 m/s²
-
Tool weight with battery (EPTA)1,2 - 1,5 kg
-
Product Dimensions (L x W x H):117 x 79 x 236 mm
Barcode
Symbols:
Portaaton nopeudensäätö
Suunnanvaihto
Elektroninen tai mekaanin jarru
Työvalo
