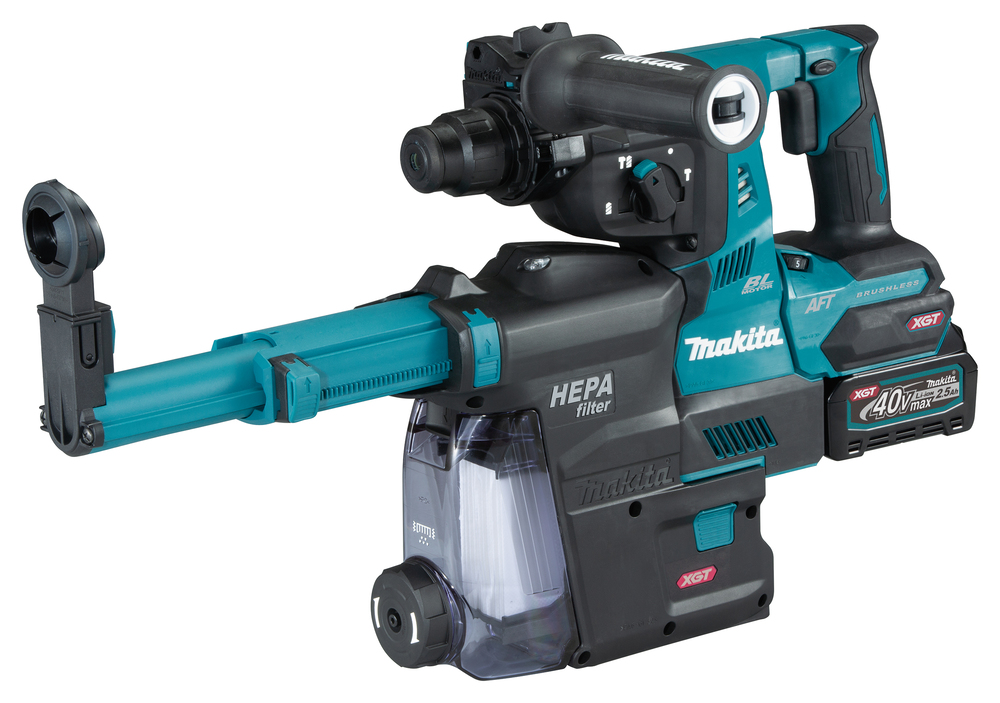

Rotary Hammer XGT®
HR001GD20340V max • SDS-Plus • 28 mm • 2,8 J
Three-mode, anti-vibration rotary hammer with remote dust extraction start for professionals
An efficient tool for SDS-Plus bits with AVT (anti-vibration technology) and remote dust extraction start. 40V max XGT batteries provide a high voltage. For impact and unstressed drilling and chipping. Speed range of 0 – 980 min-1. Impact energy of 2,8 J, max. Capacity of 28 mm in concrete.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
User benefits
- Battery protection circuit protects against overloading, over-discharging and over-heating
Standard accessories
View more
View less
Standard machines
View more
View less
Technical specifications
-
Li-ion battery 40V max-
-
Nominal Battery Voltage40 V
-
Voltage XGT
-
Battery protection
-
No load speed0 - 980 min⁻¹
-
Impacts per Minute (IPM)0 - 5000 min⁻¹
-
Max. Drilling Diameter in Wood32 mm
-
Max. Drilling Diameter in Concrete28 mm
-
Max. Drilling Diameter in Steel13 mm
-
Optimum Drilling Diameter Range in Concrete10 - 18 mm
-
Impact Energy2,8 J
-
Drilling diameter with TCT core bit54 mm
-
Sound Power Level (LWA)106 dB(A)
-
Sound Pressure Level (LpA)95 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Vibration Level (3 axes), Drilling2,5 m/s²
-
Vibration Level (3 axes), Impact Drilling7,0 m/s²
-
Vibration: Chiselling6,5 m/s²
-
Vibration Uncertainty (K Factor)1,5 m/s²
-
Tool weight with battery (EPTA)3,9 - 4,6 kg
-
Product Dimensions (L x W x H):358 x 102 x 232 mm
Barcode
Symbols:
Portaaton nopeudensäätö
Elektroninen tai mekaanin jarru
Suunnanvaihto
Turvakytkin
SDS-Plus kiinnitys
Vakioelektroniikka
Pölynpoisto
Työvalo
