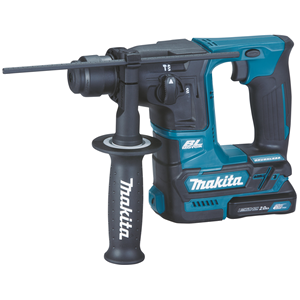

Rotary Hammer CXT®
HR166DSMJ12V max • SDS-Plus • 16 mm • 1,1 J
Compact, brushless tool for drilling and impact drilling
A small and light rotary hammer with an anti-vibration handle, accepts SDS-Plus bits. Suitable for drilling and impact drilling. Speed range of 0 – 680 min-1. Impact energy of 1,1 J and max. drilling capacity of 16 mm in concrete. Two 4.0Ah batteries and a charger in a Makpac case.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
User benefits
- Compact and lightweight design
- Battery protection system automatically shuts off power when the battery level is low
- LED light illuminates the work site
- Body model - delivered without battery and charger.
Standard machines
View more
View less
Technical specifications
-
Li-ion battery 12V max-
-
CXT Battery
-
Battery protection
-
No load speed0 - 680 min⁻¹
-
Impacts per Minute (IPM)0 - 4800 min⁻¹
-
Impact Energy1,1 J
-
Max. Drilling Diameter in Wood13 mm
-
Max. Drilling Diameter in Concrete16 mm
-
Max. Drilling Diameter in Steel10 mm
-
Sound Power Level (LWA)97 dB(A)
-
Sound Pressure Level (LpA)86 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Vibration Level (3 axes), Impact Drilling7,5 m/s²
-
Vibration Uncertainty (K Factor)1,5 m/s²
-
Tool weight with battery (EPTA)1,8 - 2,4 kg
-
Product Dimensions (L x W x H):255 x 74 x 206 mm
Barcode
0088381838412
Symbols:
Portaaton nopeudensäätö
Suunnanvaihto
SDS-Plus kiinnitys
Pölynpoisto
Työvalo
