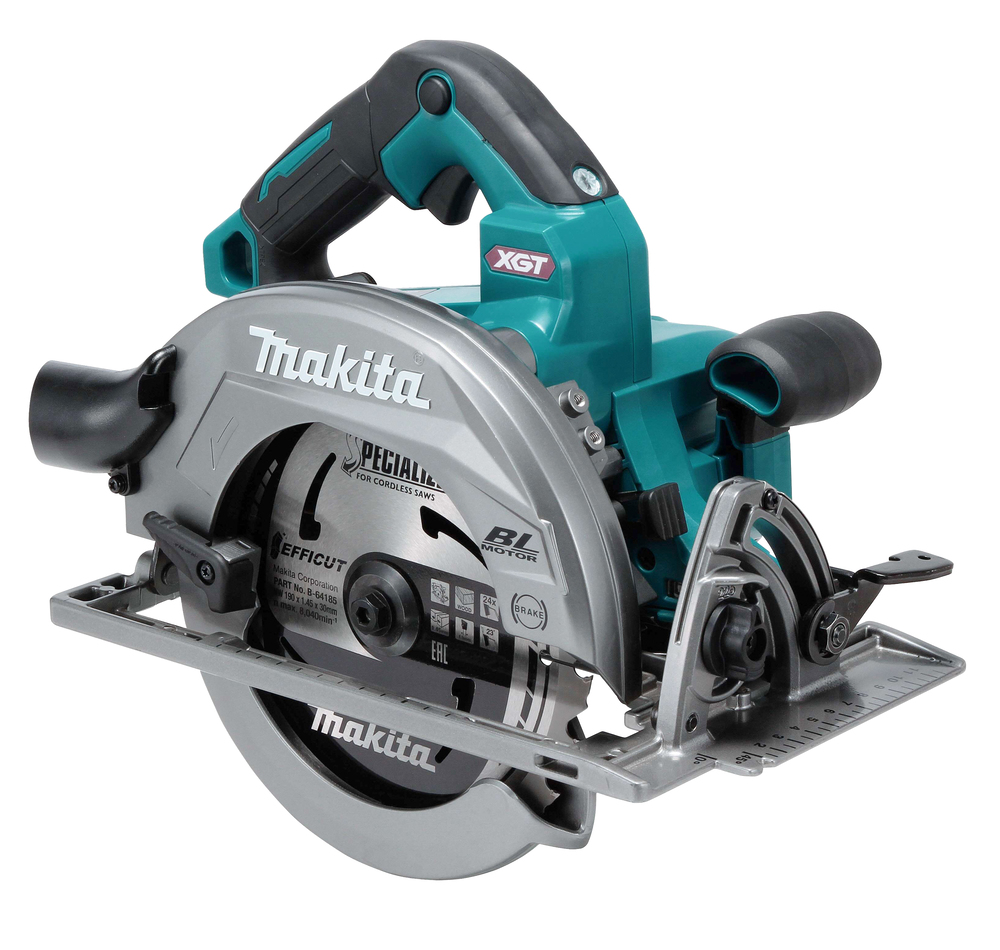

Circular Saw XGT®
HS003GZ0140V max • 6 000 min?¹ • 190 / 185 mm
Highly robust circular saw for demanding applications
40V max XGT® Li-ion battery and brushless motor makes this saw excellent choice for demanding applications. The blade can reach up to 6,000 min?¹ to ensure high cutting performance. Auto-Start Wireless System function with bluetooth for remote vacuum start. Tool only, battery and charger not included.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
User benefits
- Battery protection circuit protects against overloading, over-discharging and over-heating
- XPT (Extreme Protection Technology) is engineered for improved dust and water resistance for operation in harsh job site conditions
- Brushless maintenance-free and long-life motor
- Electric brake for maximum productivity and increased operator safety
- Magnesium components create lightweight saws that are well-balanced and jobsite tough
- Twin LED lights with preglow and afterglow functions for better illumination and more accurate work
Standard accessories
View more
View less
Technical specifications
-
Li-ion battery 40V max-
-
Nominal Battery Voltage40 V
-
Voltage XGT
-
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion)Li-ion
-
Battery protection
-
No load speed6000 min?¹
-
Max. Cutting Depth at 90°68,5 / 66 mm
-
Max. Cutting Depth at 45°47,5 / 45,5 mm
-
Max. Cutting Depth at 56°34 / 35,5 mm
-
Max. Bevel Range (Left)0 / 56 °
-
Blade185 - 190 mm
-
AWS ready
-
Cutter / Blade
-
Wrench
-
Guide Rule
-
Sound Power Level (LWA)104 dB(A)
-
Sound Pressure Level (LpA)93 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Vibration Level (3 axes)= 2,5 m/s²
-
Vibration Uncertainty (K Factor)1,5 m/s²
-
Product Dimensions (L x W x H):331 x 200 x 290 mm
-
Product net weight3,4 kg
-
Tool weight with battery (EPTA)4,1 - 4,4 kg
Barcode
Symbols:
Elektroninen tai mekaanin jarru
Pehmeä käynnistys
Työvalo
