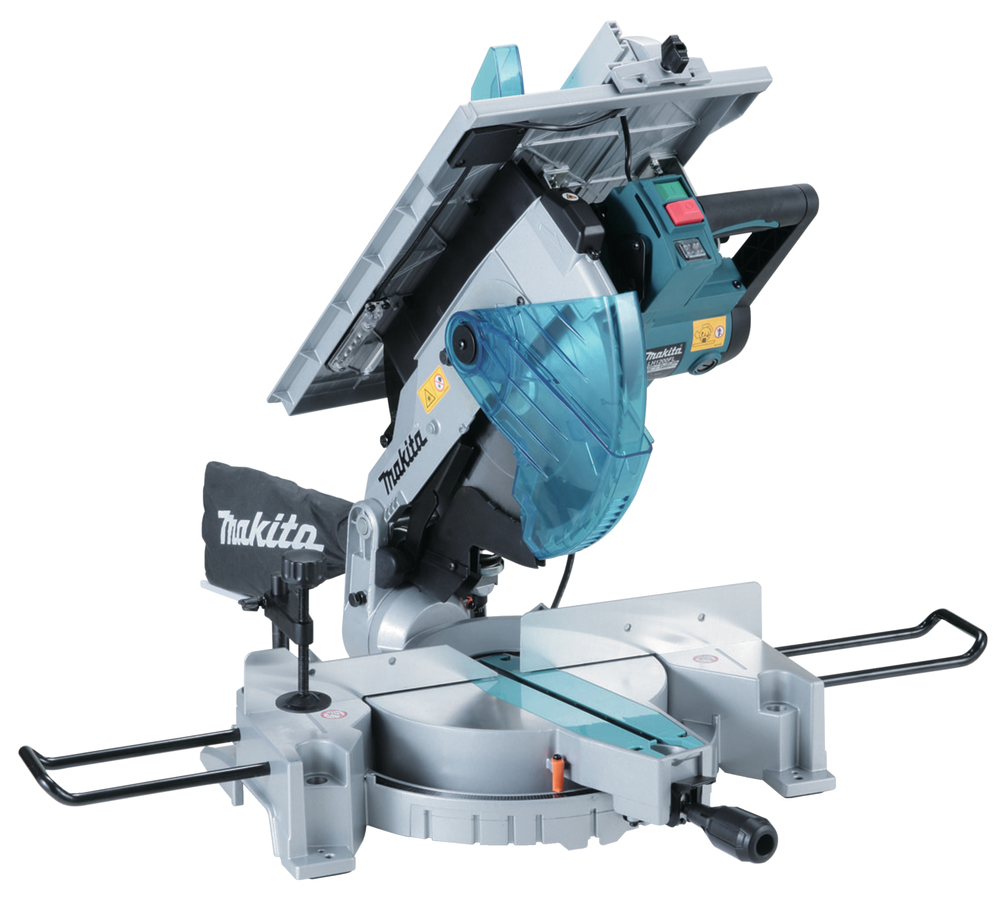

Mitre Saw

Technical specifications

Capacity 90°
95 x 155 / 62 x 200 mm
Maximum Output Power
1650 W
No load speed
3800 min⁻¹
Capaciity 45°
95 x 110 / 62 x 135 mm
Max. Cutting Height (above Table) at 90°
52 mm
Capacity 45° left
64 x 155 / 40 x 200 mm
Max. Bevel Range (Left)
45 / 0 °
Max. Mitre Range (Left)
47 / 52 °
Blade
305 x 30 mm
Socket Wrench
Power Supply Cord
2,5 m
Dust Bag
Set Plate
1
Push stick
Sound Power Level (L_WA)
106 dB(A)
Sound Pressure Level (L_pA)
93 dB(A)
Noise Uncertainty (K Factor)
3 dB(A)
Vibration Level (3 axes)
≤ 2,5 m/s²
Vibration Uncertainty (K Factor)
1,5 m/s²
Laser Class
2
Weight Without Cable (EPTA-Procedure 01/2003)
20,7 kg
Product Dimensions (L x W x H):
610 x 535 x 692 mm
