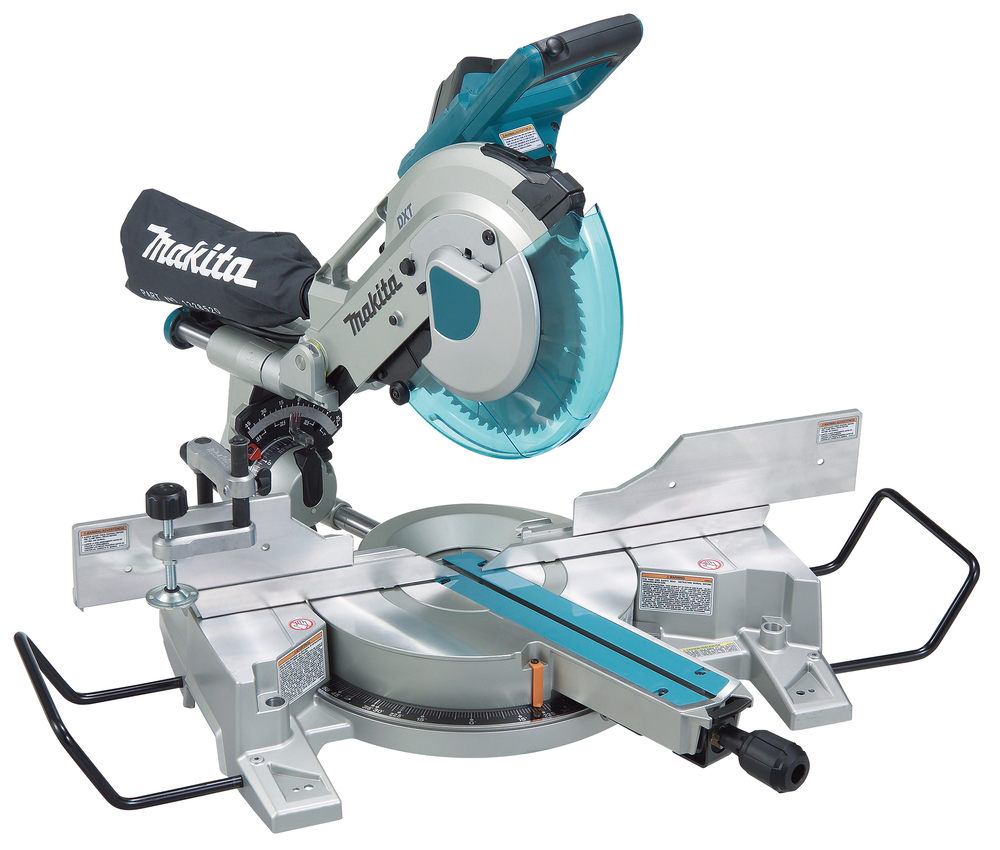

Slide Compound Miter Saw
LS10161 510 W • 260 mm • 3 200 min⁻¹
Efficient and accurate saw for high-capacity applications
An accurate high-capacity saw with a 1 510 W motor for professional use. The dual slide system ensures high accuracy and saves space. An ideal choice for construction and other demanding sectors.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
User benefits
- Dual rail sliding system

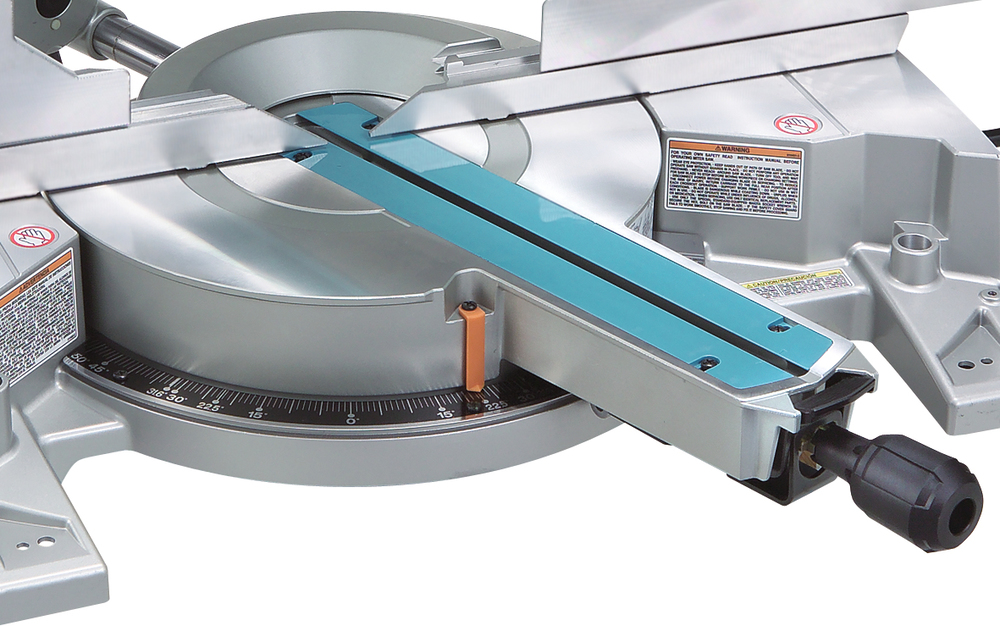

- Miters 0º - 52º left and 0º - 60º right, with positive stops at 0º, 15º, 22.5º, 31.6º and 45º (left and right)
- Electronic speed control maintains constant speed under load for smoother, higher quality cutting
- Soft start for smooth start-ups
Technical specifications
-
Capacity 90°91 x 279 mm
-
Maximum Output Power1510 W
-
No load speed3200 min⁻¹
-
Capaciity 45°91 x 197 mm
-
Capacity 45° left58 x 279 mm
-
Bevel capacity right 45°43 x 279 mm
-
Max. Bevel Range (Left)45 / 45 °
-
Max. Mitre Range (Left)52 / 60 °
-
Blade260 x 30 mm
-
Socket Wrench
-
Power Supply Cord2,5 m
-
Dust Bag
-
Sound Power Level (LWA)103 dB(A)
-
Sound Pressure Level (LpA)90 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Vibration Level (3 axes)≤ 2,5 m/s²
-
Vibration Uncertainty (K Factor)1,5 m/s²
-
Weight Without Cable (EPTA-Procedure 01/2003)24,1 kg
-
Product Dimensions (L x W x H):718 x 640 x 671 mm
Barcode
0088381099561
Symbols:
Kaksoiseristys
Elektroninen tai mekaanin jarru
Vakioelektroniikka
Pehmeä käynnistys
Kallistus vasen ja oikea 45°
Pölynpoisto
