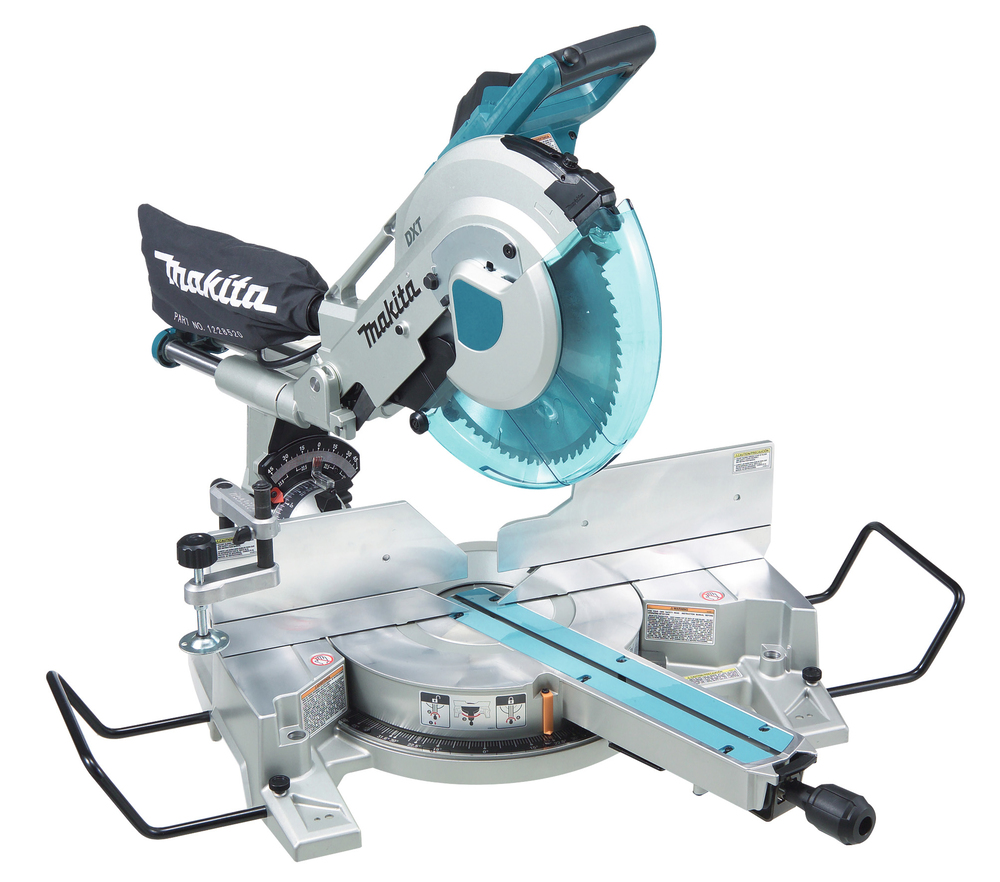

Slide Compound Saw

LS1216F

1 650 W • 305 mm • 3 200 min-1

Efficient high-capacity saw for quick and accurate cutting

Thanks to its dual slide system and efficient 1 650 W motor, the saw offers high accuracy and speed, even with large items. A retractable rear guard increases capacity to 120 mm. The saw is equipped with a work light.

Not in stock

**General**

**Technical info**

**Related Products**

**Dust Extraction**

**Additional info**

**Support**

Technical specifications

Capacity 90°

102 x 363 mm

Maximum Output Power

1650 W

No load speed

3200 min⁻¹

Capacity 45° left

69 x 363 mm

Max. Bevel Range (Left)

45 / 45 °

Max. Mitre Range (Left)

52 / 60 °

Power Supply Cord

2,5 m

Sound Power Level (L_WA)

101 dB(A)

Sound Pressure Level (L_pA)

88 dB(A)

Vibration Level (3 axes)

≤ 2,5 m/s²

Vibration Uncertainty (K Factor)

1,5 m/s²

Weight Without Cable (EPTA-Procedure 01/2003)

24,6 kg

Product Dimensions (L x W x H):

520 x 723 x 696 mm
