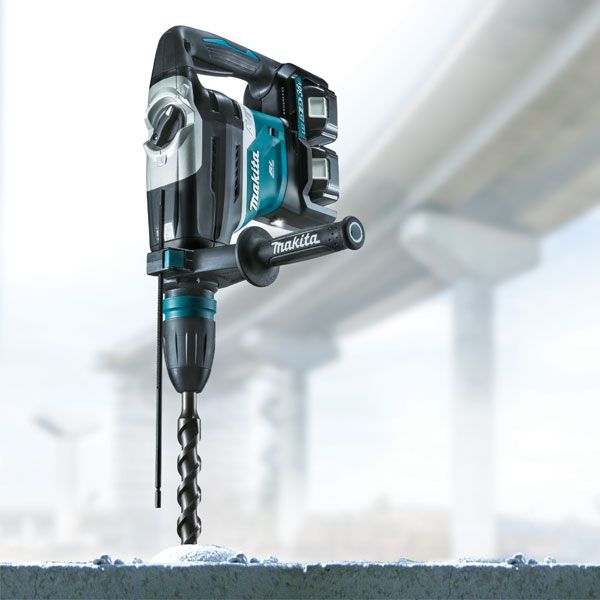

• DHR400

    CORDLESS SDS-MAX ROTARY HAMMER

    With the power of a corded machine!









Battery powered SDS-Max rotary hammer with the power of a cordless machine for drilling and chopping!

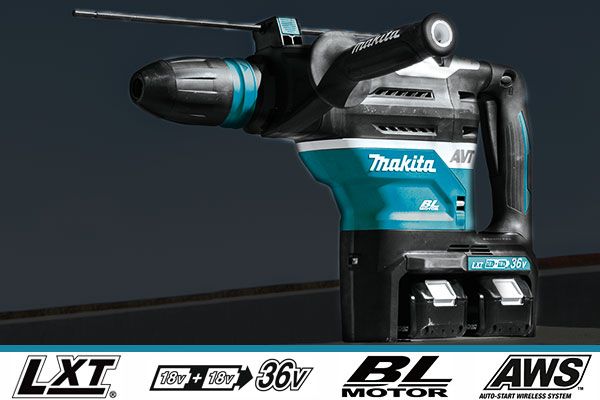

The power of the machine comes from two 18V batteries that produce 36V power. Powerful brushless motor enables low power consumption, so the machine works for a long time with one charge.

The rotary hammer also makes it easy to work without dust as the machine is equipped with an AWS function that starts the vacuum cleaner wirelessly via bluetooth connection.

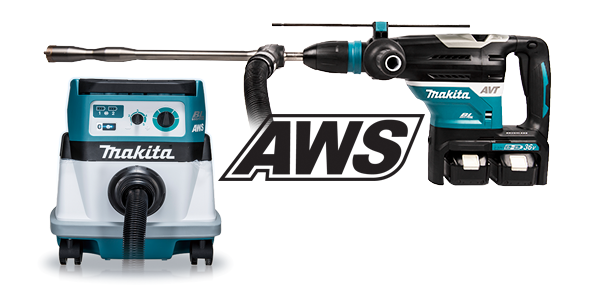

AWS Technology wirelessly controls the vacuum cleaner

The vacuum cleaner and rotary hammer communicates through a bluetooth connection. On the side of the rotary hammer is a place for a chip card and after pairing, the rotary hammer gives a start-up command to the vacuum cleaner wirelessly.

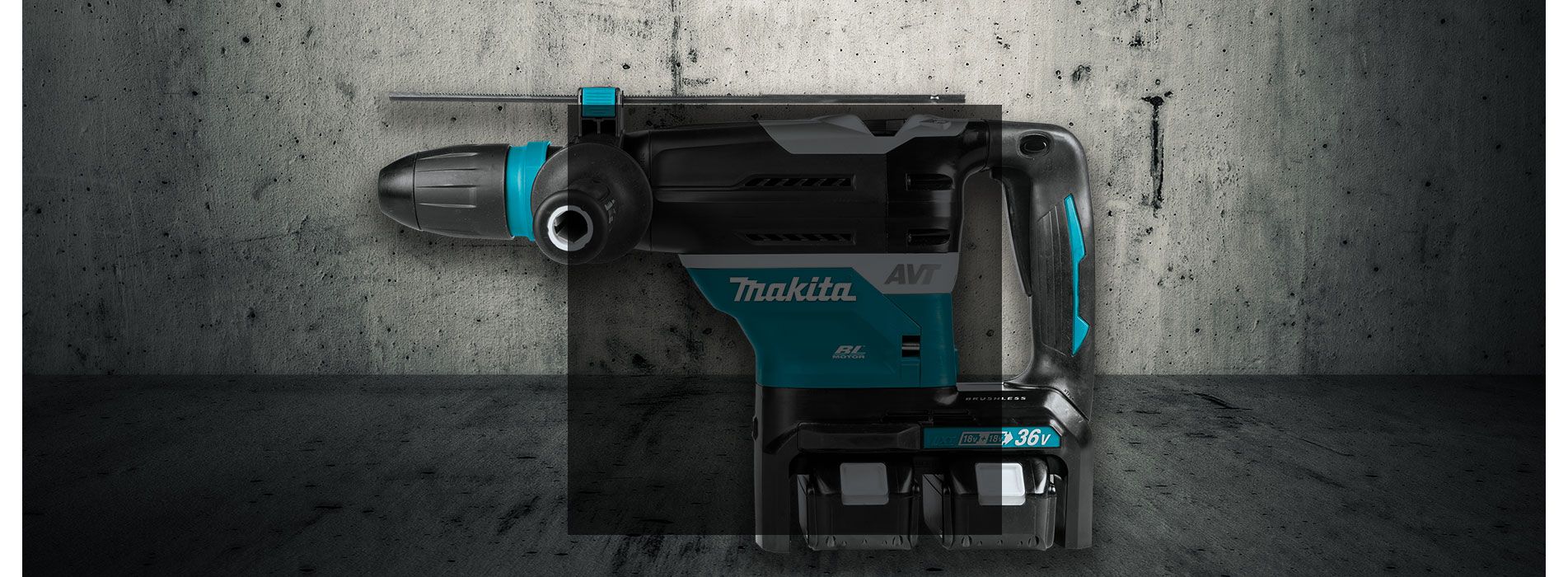

  • As powerful as same size corded rotary hammer

    - Impact energy 8J

    - Capacity concrete 40mm

    - Optimal drilling 16-30mm

    - Core drilling 105mm

    - Blows Per Minute 1450-2900 min-1

    - No load speed 250-500

    - AVT Vibration reduction

    - Weight with battery included 7,9 kg



AVT technology minimizes vibration



AVT - Anti Vibration Technology

AVT (Anti Vibration Technolgy) dynamic vibration absorber reduces vibration effectively. During no-load (Soft no load) function reduces vibration of the tool body when idling, accordingly decreases the amount of vibration to operator’s hands during a day’s operation and minimizes deflection of bit tip from aiming point when starting chipping.

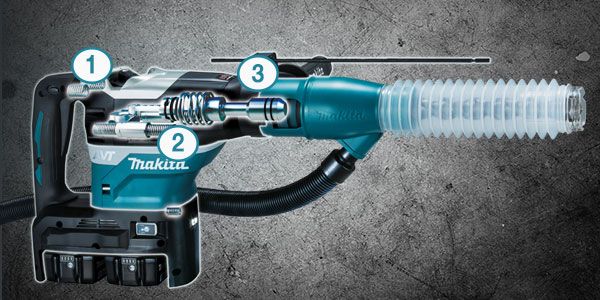

AVT- Operating principle

1)  Vibration absorbing housing isolates handle and motor.

2)  Active dynamic vibration absorber moves in the opposite direction to the drive piston to reduce vibration.

3)  Damper spring absorbs impact vibrations from the drill bit.

  • Drilling holes up to 3.5 meters with one charge

    - 18 mm diameter

    - 140 mm deep hole

    - 40 N / mm2

    - 5.0 Ah battery

    8.0J Impact energy in demolition work with bull point

    - Equivalent to AC powered machine (HR4013C)

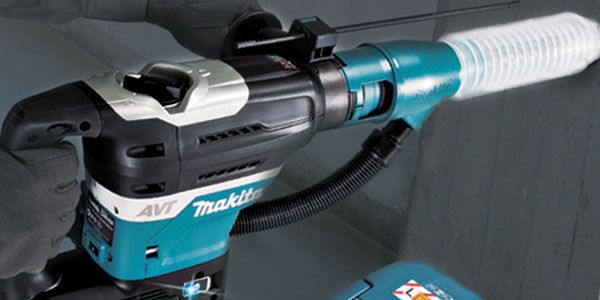

Effective dust extraction



It is possible to attach dust extraction set to the machine and work wirelessly with AWS function. The vacuum cleaner starts automatically when using the machine.

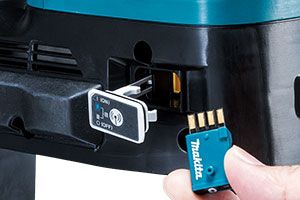

Bluetooth  chip



Vacuum cleaner starts automatically through Bluetooth transmitter.

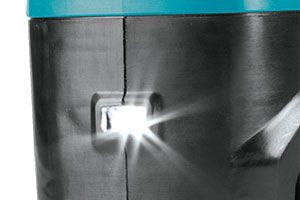

Led light



Led-light for easy operation at dark places

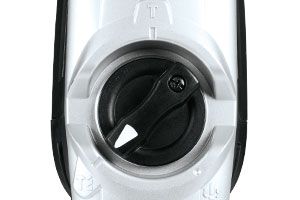

2-mode operation



Hammering only or hammering with rotation

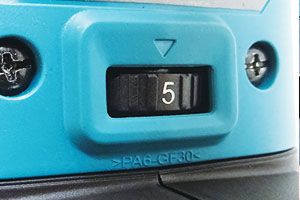

Speed control



With speed control it is possible to optimize the speed for different working materials





Cordless Rotary Hammer

DHR400ZKU

18V+18V - without battery and charger

SDS-Max rotary hammer for battery use for professional use

Battery powered SDS-Max rotary hammer for drilling. Highly effective AVT Vibration Reduction. Makita AWS system - wireless cordless control with Bluetooth. Max capacity 40 mm. Supplied without battery or charger.



TO PRODUCT PAGE

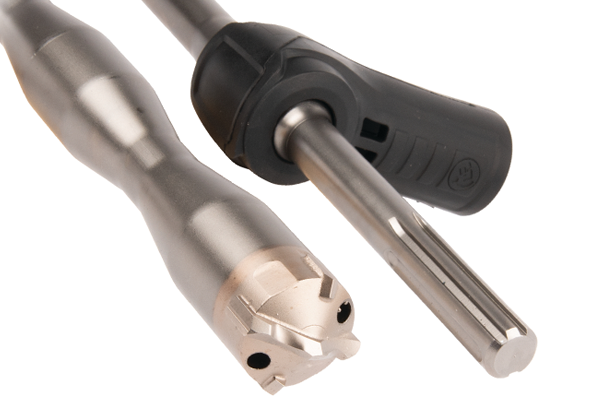

Dust extraction drill bits are Makita's novelty for SDS-MAX drills!

The dust is drawn from the drill bit through the shaft into the vacuum cleaner. The drill bit body is threadless as the blade does not need to move the drilling dust out of the hole. The drill bit remains cool and lasts longer, but most importantly, it allows for a completely dust-free drilling! There are several different sizes of dust extraction drill bits available between 16 and 35 mm.
