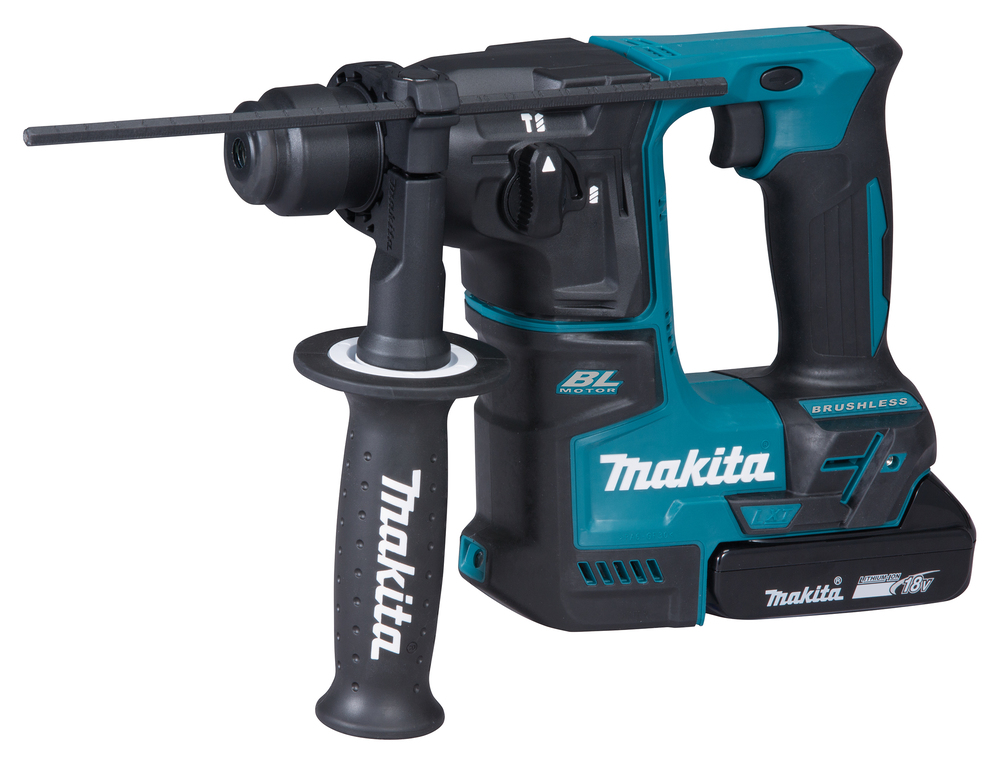

Rotary Hammer LXT®
DHR171FJX118V • SDS-Plus • 17 mm • 1,2 J
Compact, brushless tool for impact and unstressed drilling
A light, short-framed rotary hammer for SDS-Plus bits with an anti-vibration handle. Suitable for impact and unstressed drilling. Speed can be adjusted between 0 and 680 min-1. Impact energy of 1,2 J and max. drilling capacity of 17 mm in concrete.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
Standard machines
View more
View less
Technical specifications
-
Li-ion battery 18V-
-
Nominal Battery Voltage18 V
-
Voltage LXT
-
Battery protection
-
Impact Energy1,2 J
-
Optimum Drilling Diameter Range in Concrete5 - 8 mm
-
Max. Drilling Diameter in Concrete17 mm
-
Max. Drilling Diameter in Wood13 mm
-
Max. Drilling Diameter in Steel10 mm
-
Impacts per Minute (IPM)0 - 4800 min⁻¹
-
No load speed0 - 680 min⁻¹
-
Side Grip
-
Sound Power Level (LWA)97 dB(A)
-
Sound Pressure Level (LpA)86 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Vibration Level (3 axes), Drilling2,5 m/s²
-
Vibration Level (3 axes), Impact Drilling9,0 m/s²
-
Vibration Uncertainty (K Factor)1,5 m/s²
-
Product Dimensions (L x W x H):273 x 86 x 211 mm
-
Tool weight with battery (EPTA)2,1 - 2,8 kg
Barcode
Symbols:
Portaaton nopeudensäätö
Suunnanvaihto
SDS-Plus kiinnitys
Elektroninen tai mekaanin jarru
Turvakytkin
Työvalo
