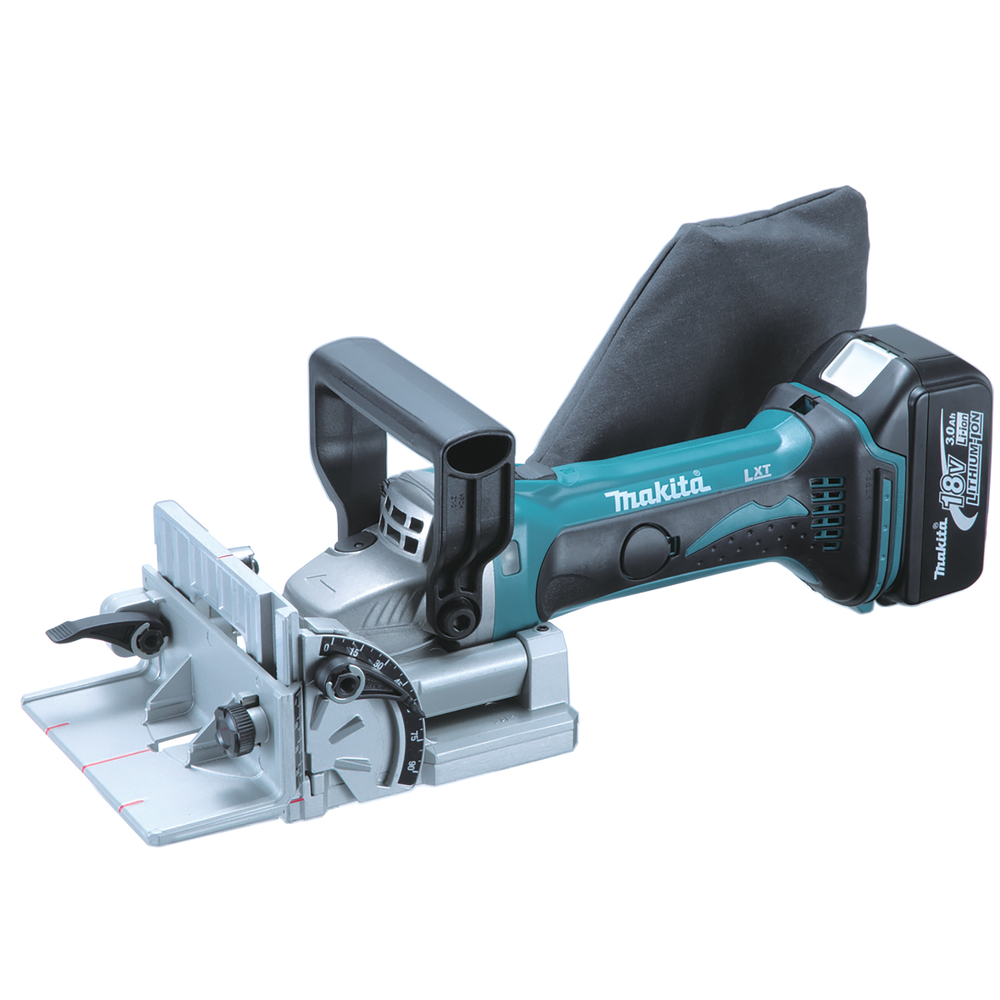

Biscuit Jointer LXT®
DPJ180RFJ18V • 100 mm • 6 500 min⁻¹
Biscuit jointer for carpenters and furnishing fitters
A cordless biscuit jointer with a 100 mm blade and 20 mm bore for carpentry applications. A maximum bore depth of 20 mm. The tool is suitable for making biscuit joints in sheets and other wooden structures.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
Standard accessories
View more
View less
Technical specifications
-
Nominal Battery Voltage18 V
-
Voltage LXT
-
Battery protection
-
No load speed6500 min⁻¹
-
Band saw bewel cutting capacity0 - 90 °
-
Blade Diameter100 mm
-
Max. Plunge Depth20 mm
-
Plunge capacity0 - 20 mm
-
Bore Size (Arbor Diameter)22 mm
-
Kerf dimension4 mm
-
Wrenches
-
Dust Bag Assembly
-
Sound Pressure Level (LpA)74 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Vibration Level (3 axes)≤ 2,5 m/s²
-
Vibration Uncertainty (K Factor)1,5 m/s²
-
Tool weight with battery (EPTA)2,8 - 3,1 kg
-
Product Dimensions (L x W x H):351 x 139 x 149 mm
Barcode
0088381673198
