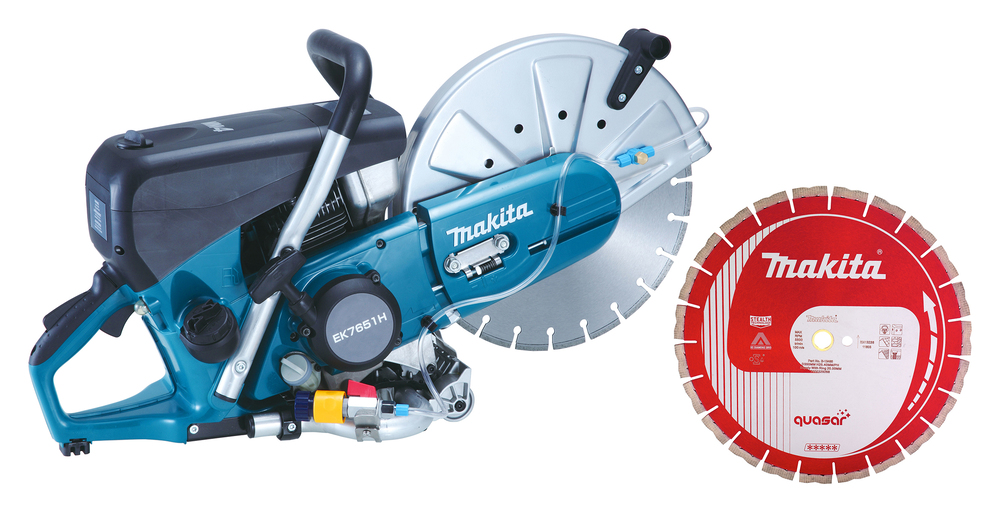

Disc Cutter
EK7651HX175 cm3 • 3,0 kW • 350 mm
Efficient cutter with wheel for construction and earthworks
A cutter with a powerful four-stroke engine for construction and earthworks. The four-stroke engine reduces operating costs, emissions and noise levels. The max. cutting depth with a 350 mm wheel is 122 mm. Wheel included.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
Technical specifications
-
Displacement75,6 cc
-
Bore Size (Arbor Diameter)25,4 mm
-
Max. Depth of Cut122 mm
-
Product net weight12,9 kg
-
Primer pump
-
Fuel Tank Capacity1,1 L
-
Max. Peripheral Speed80 m/s
-
Sound Power Level (LWA)104,6 dB(A)
-
Sound Pressure Level (LpA)92,7 dB(A)
-
Noise Uncertainty (K Factor)2,5 dB(A)
-
Vibration Level (3 axes) at Front Handle2,7 m/s²
-
Vibration Level (3 axes) at Rear Handle1,8 m/s²
-
Vibration Uncertainty (K Factor)2,0 m/s²
-
Vibrations per minute4300 min⁻¹
-
Weight Without Cable (EPTA-Procedure 01/2003)12,9 kg
-
Product Dimensions (L x W x H):780 x 310 x 455 mm
Barcode
0088381695374
