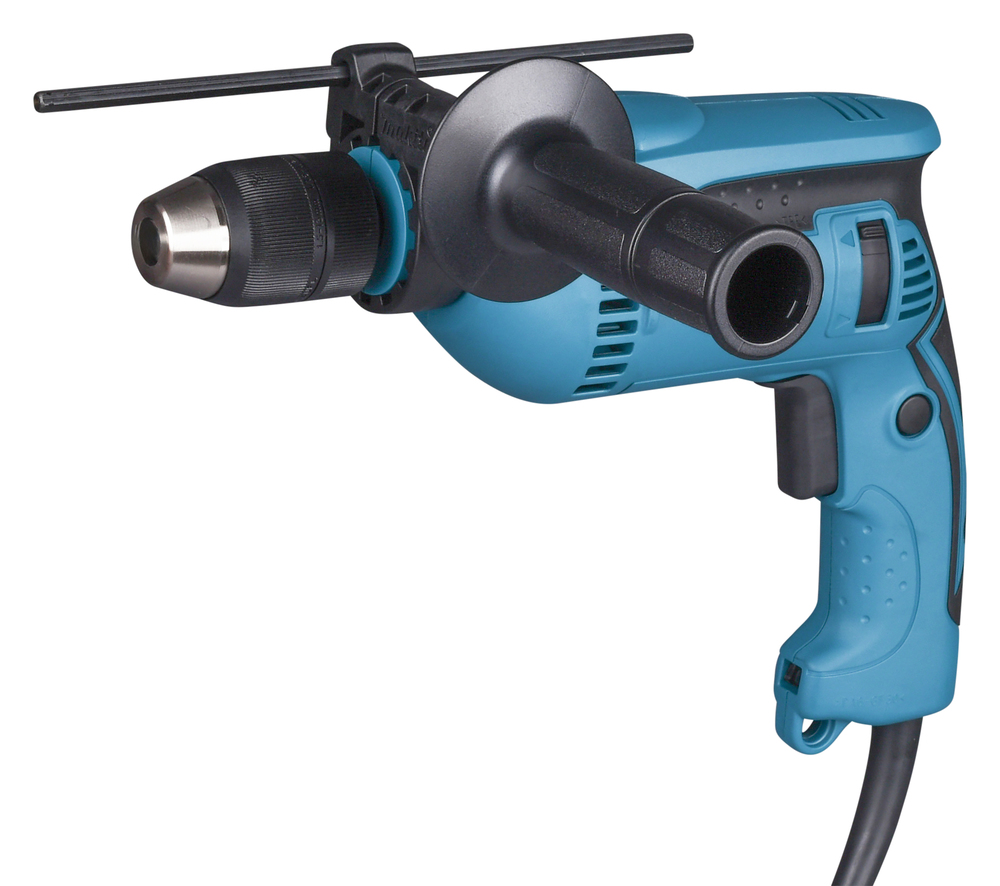

Percussion Drill
HP1641FJ680 W • 16 mm • 0 – 2 800 min-1
Compact drill with hammer and drive functions
Compact 680 W percussion drill with a masonry drilling capacity of 16 mm. A slimline frame, large switch and handy LED light for added usability. Comes with a 13 mm quick action drill chuck and Makpac case.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
User benefits
- LED light illuminates the work site
Technical specifications
-
Maximum Output Power680 W
-
No load speed0 - 2800 min⁻¹
-
Impacts per Minute (IPM)0 - 44 800 min⁻¹
-
Max. Drilling Diameter in Wood30 mm
-
Max. Drilling Diameter in Concrete16 mm
-
Max. Drilling Diameter in Steel13 mm
-
Drill Chuck Capacity1,5 - 13 mm
-
Collar Clamping Diameter43 mm
-
Power Supply Cord2,0 m
-
Side Grip
-
Sound Power Level (LWA)103 dB(A)
-
Sound Pressure Level (LpA)92 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Vibration Level (3 axes)≤ 2,5 m/s²
-
Vibration Level (3 axes), Impact Drilling19 m/s²
-
Vibration Uncertainty (K Factor)1,5 m/s²
-
Weight Without Cable (EPTA-Procedure 01/2003)2,0 kg
-
Product Dimensions (L x W x H):303 x 72 x 222 mm
Barcode
0088381645348
Symbols:
Kaksoiseristys
Portaaton nopeudensäätö
Suunnanvaihto
Pikaistukka lukittuva
Työvalo
Laukku
