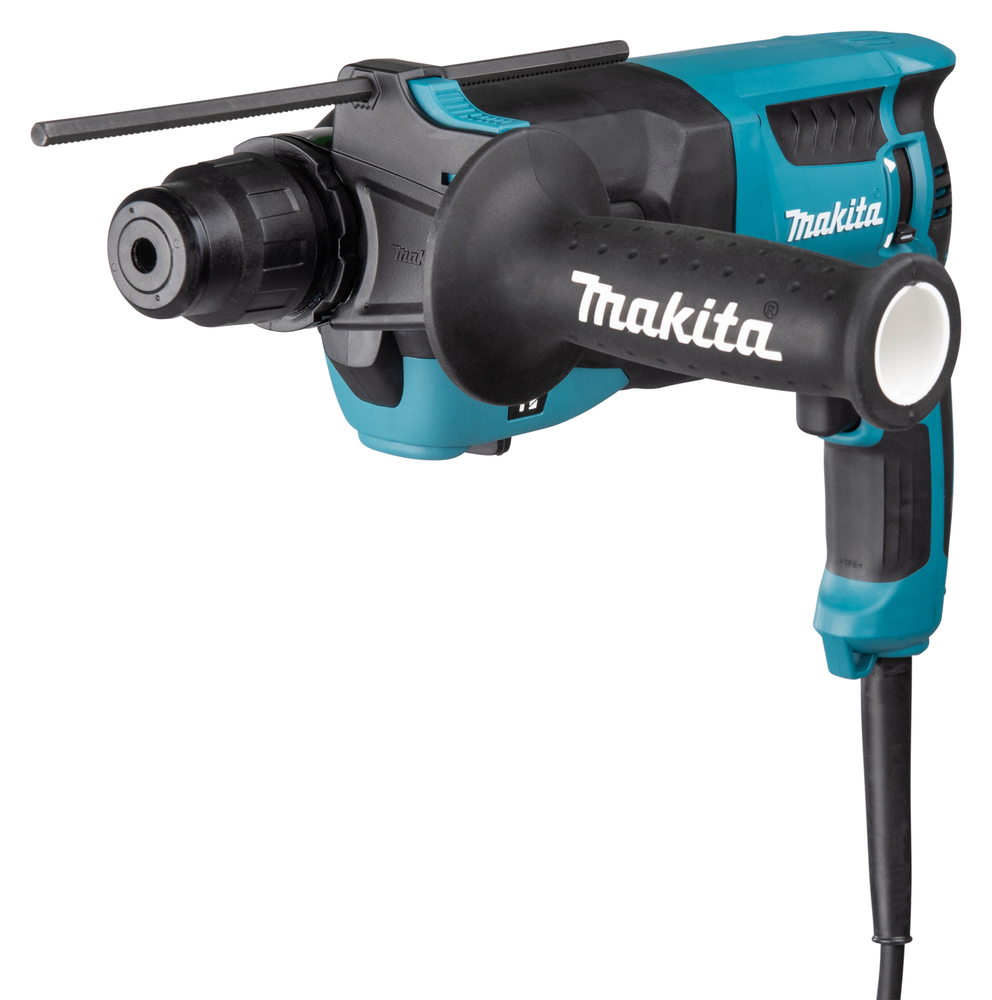

Rotary hammer
HR2630XG800 W • SDS-PLUS • 26 mm • 2,4 J
Rotary Hammer for SDS-PLUS bits.
Powerful 800 W motor delivers 2.4 J of impact energy to handle the most demanding applications. Torque limiter stops rotation if bit jams for increased operator safety and enhanced motor protection. Forward/reverse lever position of the switch allows brushes to be positioned so that the drill maintains same speed and torque in forward and reverse.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
User benefits
- Soft grip handle provides increased comfort on the job
- One-touch sliding chuck for easy bit installation and removal
- 3-Mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only" for multiple applications
- Variable speed trigger allows operator to adjust speed based on materials or application
- Recessed lock-on button for continuous use
Technical specifications
-
Maximum Output Power800 W
-
No load speed0 - 1200 min⁻¹
-
Impacts per Minute (IPM)0 - 4600 min⁻¹
-
Max. Drilling Diameter in Wood32 mm
-
Max. Drilling Diameter in Concrete26 mm
-
Max. Drilling Diameter in Steel13 mm
-
Optimum Drilling Diameter Range in Concrete8 - 18 mm
-
Impact Energy2,4 J
-
Drilling diameter with TCT core bit68 mm
-
Power Supply Cord4,0 m
-
Plastic Carrying Case
-
Side Grip
-
Depth Gauge (2)
-
Sound Power Level (LWA)102 dB(A)
-
Sound Pressure Level (LpA)91 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Vibration Level (3 axes), Drilling≤ 2,5 m/s²
-
Vibration Level (3 axes), Impact Drilling15,5 m/s²
-
Vibration: Chiselling9,5 m/s²
-
Vibration Uncertainty (K Factor)1,5 m/s²
-
Weight Without Cable (EPTA-Procedure 01/2003)2,8 - 3,3 kg
-
Product Dimensions (L x W x H):361 x 77 x 209 mm
Barcode
Symbols:
Kaksoiseristys
Portaaton nopeudensäätö
Suunnanvaihto
SDS-Plus kiinnitys
Turvakytkin
Pölynpoisto
Laukku
