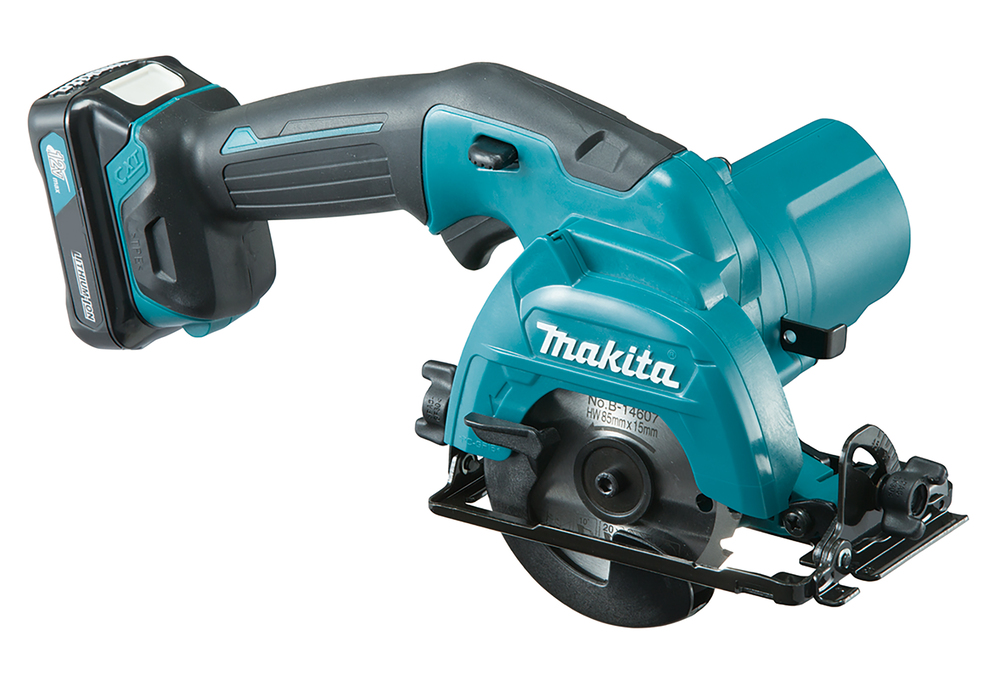

Circular Saw CXT®
HS301DSAE12V max • 1 500 min⁻¹ • 85 mm
Small circular saw for light use
A small and light hand-held circular saw for small jobs. A speed of 1 500 min-1, and blade diameter of 85 mm that offers a maximum cutting depth of 25,5 mm. Dust removal function helps keep cut line visible. Blade diameter of 85 mm, max. cutting depth of 25,5 mm. Two 2.0 Ah batteries and a charger in a case.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
User benefits
- Tilting base for bevel cuts from 0° - 45°
- The rubber coating on the handle ensures a firm working grip
- Body model - delivered without battery and charger.
Standard accessories
View more
View less
Technical specifications
-
Li-ion battery 12V max-
-
CXT Battery
-
Battery protection
-
Blade Diameter85 mm
-
Bore Size (Arbor Diameter)15 mm
-
No load speed1500 min⁻¹
-
Max. Cutting Depth at 90°25,5 mm
-
Max. Cutting Depth at 45°16,5 mm
-
Cutting capacity wooden planks25,5 mm
-
rake angle45°
-
Saw blade
-
Sound Pressure Level (LpA)71 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Vibration Level (3 axes)≤ 2,5 m/s²
-
Vibration Uncertainty (K Factor)1,5 m/s²
-
Tool weight with battery (EPTA)1,6 - 1,7 kg
-
Product Dimensions (L x W x H):331 x 170 x 155 mm
Barcode
Symbols:
Kallistuskulma 45, vasen
Pölynpoisto
Optional accessories
View more
View less
Related accessories
View more
View less
Find your vacuum cleaner
With this combination you can work dust free.
