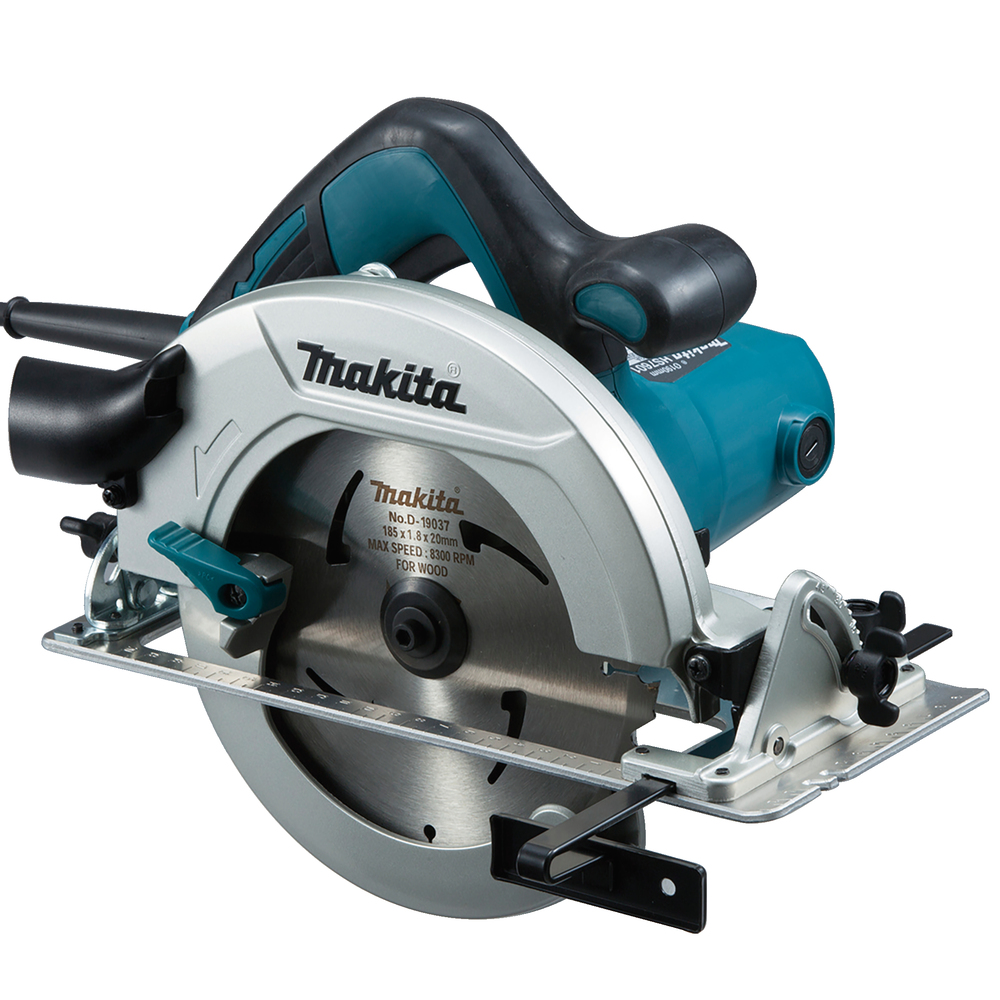

Circular Saw
HS7601X11 200 W • 5 200 min⁻¹ • 190 mm
Powerful professional circular saw
An efficient and robust high-capacity circular saw with a 1 200 W motor and speed of 5 200 min-1 designed for professional use. Compatible with a blade with a 190 mm diameter that achieves a max. cutting depth of 66 mm. Compact design for added control and safety. Can be connected to guide rule with an adapter.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
User benefits
- Compact design for good maneuverability and increased safety.
- Rigid aluminum base provides smooth cutting thanks to its lightness, toughness and good bend resistance
- Aluminum blade case for high durability and long tool life
- Double insulated
Standard accessories
View more
View less
Technical specifications
-
Maximum Output Power1200 W
-
No load speed5200 min⁻¹
-
Max. Cutting Depth at 90°68 mm
-
Max. Cutting Depth at 45°46 mm
-
Max. Bevel Range (Left)0 / 45 °
-
Blade Diameter190 mm
-
Bore Size (Arbor Diameter)30 mm
-
Power Supply Cord2,5 m
-
Sound Power Level (LWA)98 dB(A)
-
Sound Pressure Level (LpA)87 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Vibration Level (3 axes)≤ 2,5 m/s²
-
Vibration Uncertainty (K Factor)1,5 m/s²
-
Weight Without Cable (EPTA-Procedure 01/2003)4,0 kg
-
Product Dimensions (L x W x H):309 x 232 x 255 mm
Barcode
0088381848466
Symbols:
Kaksoiseristys
Pölynpoisto
