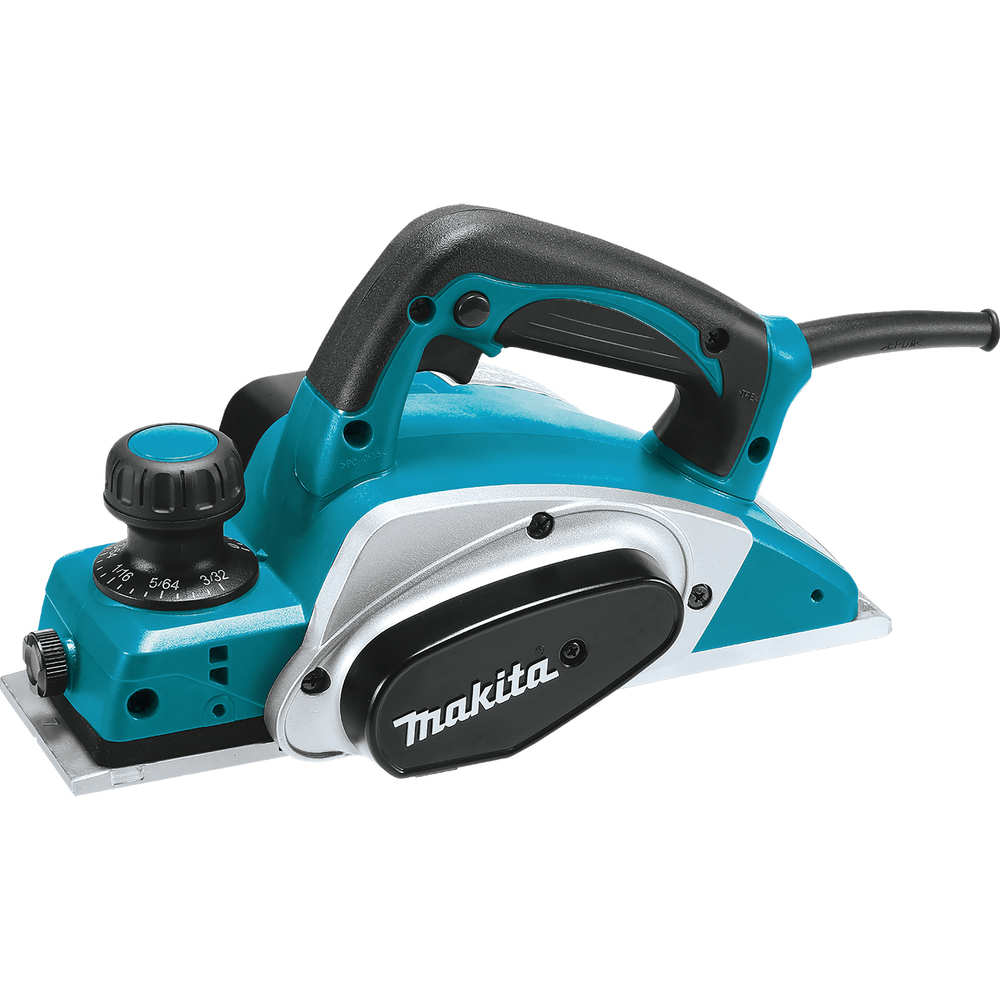

Planer

Technical specifications

Maximum Output Power
620 W
No load speed
17 000 min⁻¹
Planing Width
82 mm
Max. Chip Thickness (Planing Depth)
2,5 mm
Max. Shiplapping Depth
9 mm
Power Supply Cord
2,5 m
Sound Power Level (L_WA)
100 dB(A)
Sound Pressure Level (L_pA)
89 dB(A)
Noise Uncertainty (K Factor)
3 dB(A)
Vibration Level (3 axes)
≤ 2,5 m/s²
Vibration Uncertainty (K Factor)
1,5 m/s²
Weight Without Cable (EPTA-Procedure 01/2003)
2,6 kg
Product Dimensions (L x W x H):
285 x 158 x 158 mm
