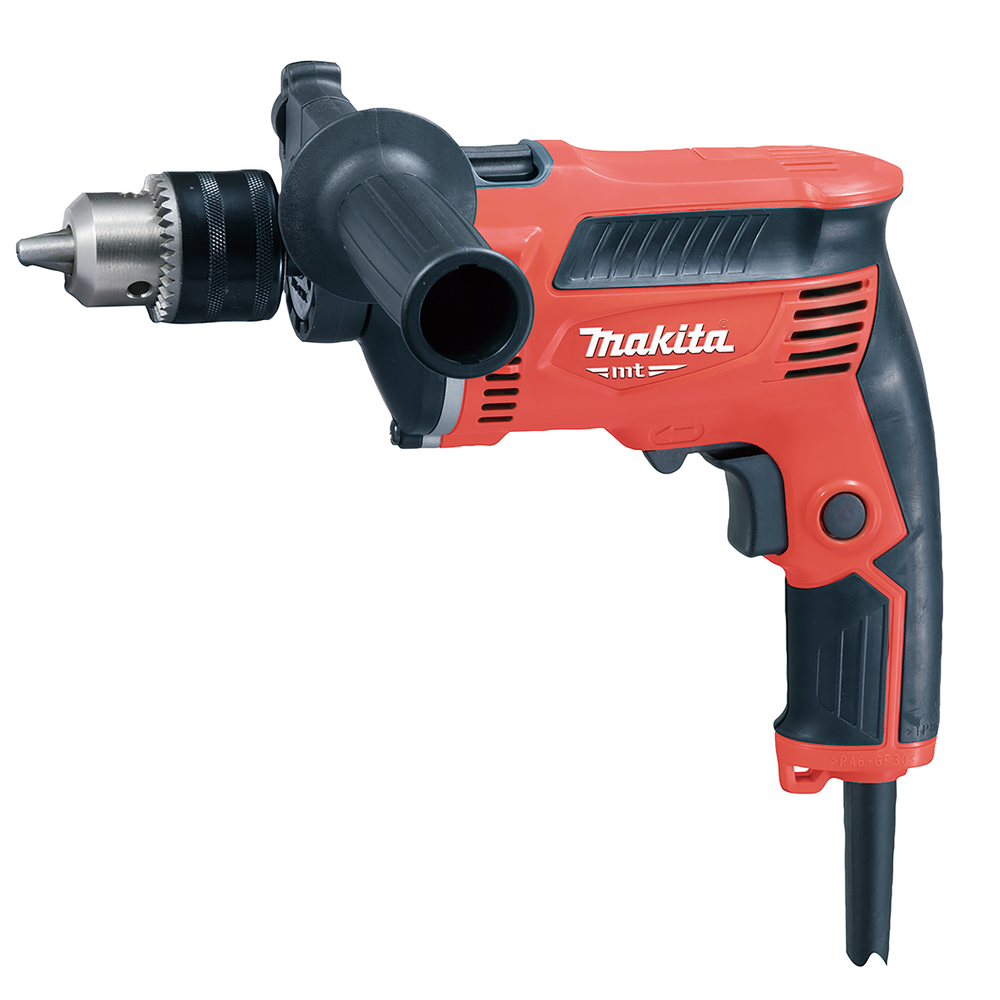

Hammer Drill
M8103KSP430 W • 16 mm • 0 – 3 000 min⁻¹
Compact hammer drill with keyed chuck
Hammer Drill with 2-mode operation for "Rotation only" or "Hammering with Rotation" for multiple applications, with a 430 W motor. Ergonomically designed handle with soft grip fits your hand perfectly.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
User benefits
- 2-mode operation for "Rotation Only" or "Hammering with Rotation"
- Reversing switch
- Variable speed control enables user to match the speed to the application
- Lock-on button for continuous operation

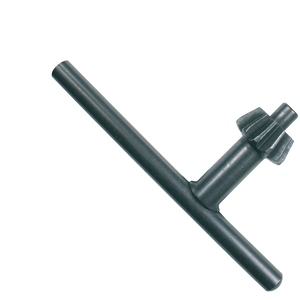

Standard accessories
View more
View less
Technical specifications
-
Maximum Output Power430 W
-
No load speed0 - 3 000 min⁻¹
-
Impacts per Minute (IPM)0 - 33 000 min⁻¹
-
Max. Drilling Diameter in Wood18 mm
-
Max. Drilling Diameter in Concrete13 mm
-
Max. Drilling Diameter in Steel13 mm
-
Drill Chuck Capacity1,5 - 13 mm
-
Weight Without Cable (EPTA-Procedure 01/2003)1,8 kg
-
Product Dimensions (L x W x H):255 x 72 x 193 mm
-
Power Supply Cord2,0 m
-
Plastic Carrying Case
-
Depth Gauge (2)
-
Sound Power Level (LWA)101 dB(A)
-
Sound Pressure Level (LpA)90 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Vibration Level (3 axes), Drilling2,0 m/s²
-
Vibration Level (3 axes), Impact Drilling19,5 m/s²
-
Vibration Uncertainty (K Factor)1,5 m/s²
Barcode
Symbols:
Kaksoiseristys
Portaaton nopeudensäätö
Suunnanvaihto
Laukku
