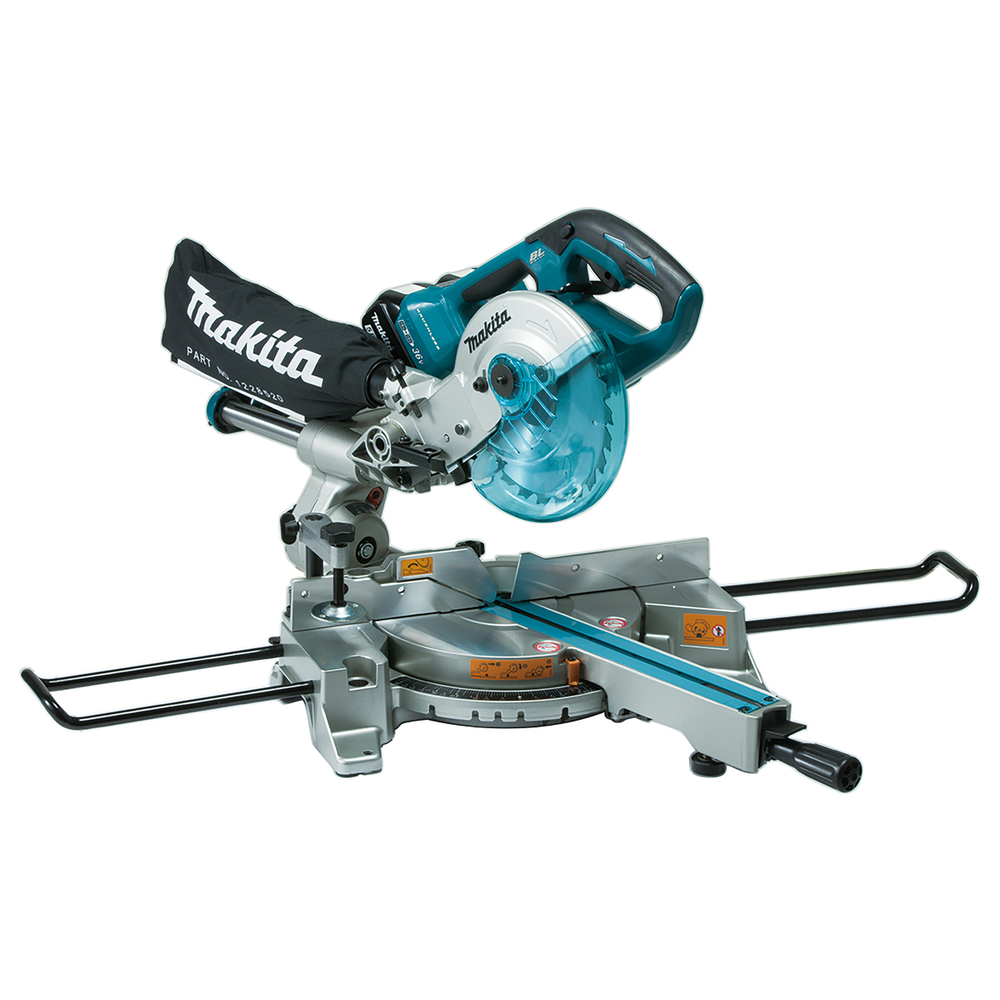

Slide Compound Saw LXT®

DLS714PT2

18V X 2 • 190 mm • 5 700 min⁻¹

Efficient brushless cordless saw for demanding use

A quick and efficient saw with a dual slide system for cutting large pieces as well as skirting boards. The tool’s two 18V LXT batteries and brushless motor achieve a 36V capacity, providing cutting speed that is comparable to electric mitre saws. Battery and charger not included.

Not in stock

**General**

**Technical info**

**Related Products**

**Dust Extraction**

**Additional info**

**Support**

Technical specifications

Capacity 90°

60 x 265 / 52 x 300 mm

Nominal Battery Voltage

2 x 18 V

Voltage LXT

Li-ion battery 18V

-

Battery protection

No load speed

5700 min⁻¹

Capaciity 45°

60 x 185 / 52 x 212 mm

Capacity 45° left

45 x 265 / 40 x 300 mm

Max. Bevel Range (Left)

45 / 5 °

Max. Mitre Range (Left)

47 / 57 °

Blade

190 x 20 mm

Dust Bag

Sound Power Level (L_WA)

97 dB(A)

Sound Pressure Level (L_pA)

88 dB(A)

Noise Uncertainty (K Factor)

3 dB(A)

Vibration Level (3 axes)

≤ 2,5 m/s²

Vibration Uncertainty (K Factor)

1,5 m/s²

Tool weight with battery (EPTA)

13 - 13,5 kg

Product Dimensions (L x W x H):

655 x 430 x 445 mm

Barcode

0088381813549

Symbols:

Elektroninen tai mekaanin jarru

Pölynpoisto

Kallistuskulma vasen 45/oikea 5

Nopea sahaus

Pehmeä käynnistys
