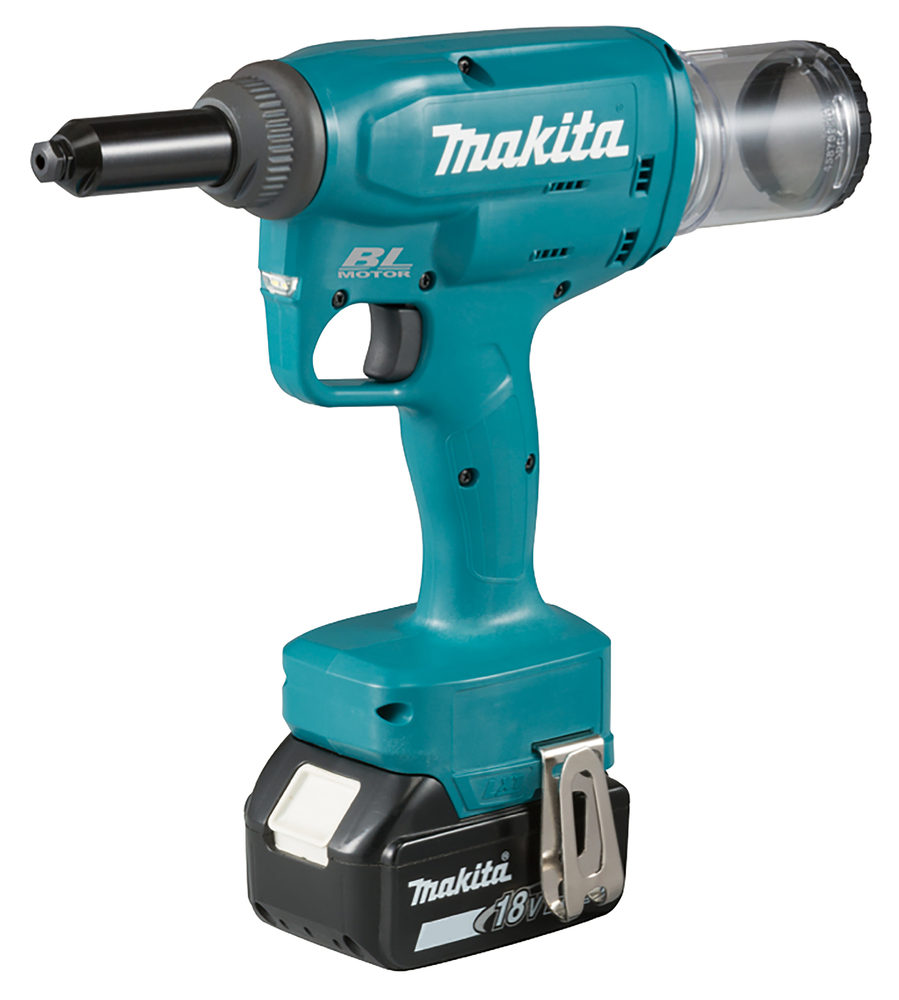

Rivet Gun LXT®
DRV150RFJ18V • 4,8 mm • 10 kN • 25 mm
A brushless heavy duty tool for up to 4,8 mm rivets
A cordless heavy duty tool for 2,4 and 4,8 mm rivets. The tool is specifically designed for industrial applications and it delivers a powerful pulling force of 10kN with a stroke length of 25mm. The tool is powerful yet easy to use. Two 3.0Ah batteries and a rapid charger.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
Product description:
DRV150 is a powerful and convenient riveter that does not get tired even during tough jobs. It's brushless motor provides a pulling force of 10 kN and a stroke length of 25 mm, which makes it possible to install most rivets in one stroke. The work amount of the machine is as high as 2300 pieces of 4,8 mm rivets on a single fully charged 5,0 Ah battery, making the riveter a viable choice even for industrial applications.The machine features a rivet holder mechanishm, which holds the rivet still even when the machine is pointed downward. Thee transparent container collects spent mandrels, so it's easy to keep track of their amount and to maintain a clean job site. The riveter is compatible with rivet's ranging from 2,4 mm to 4,8 mm in diameter.The machine only weighs 2,2 kg with a battery making it convenient to use. It's jaw case enables tight space operation. Just as the riveter provides a high capacity, so can you work with reduced fatigue thanks to it's innovative design.User benefits
- Brushless maintenance-free and long-life motor
- Body model - delivered without battery and charger.
- Compact and ergonomic design
- LED light illuminates the work site
Standard machines
View more
View less
Technical specifications
-
Li-ion battery 18V-
-
Nominal Battery Voltage18 V
-
Voltage LXT
-
Battery protection
-
Cutting Capacity Stainless Steel (up to 600N/mm²)2,4 - 4,8 mm
-
Sound Pressure Level (LpA)75 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Vibration Level (3 axes)≤ 2,5 m/s²
-
Vibration Uncertainty (K Factor)1,5 m/s²
-
Tool weight with battery (EPTA)1,9 - 2,2 kg
-
Product Dimensions (L x W x H):313 x 80 x 287 mm
-
Max. pulling force10 kN
-
Length of Stroke25 mm
-
Nail Diameter2,4 - 4,8 mm
Barcode
Symbols:
Portaaton nopeudensäätö
Työvalo
