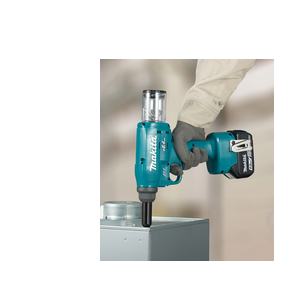

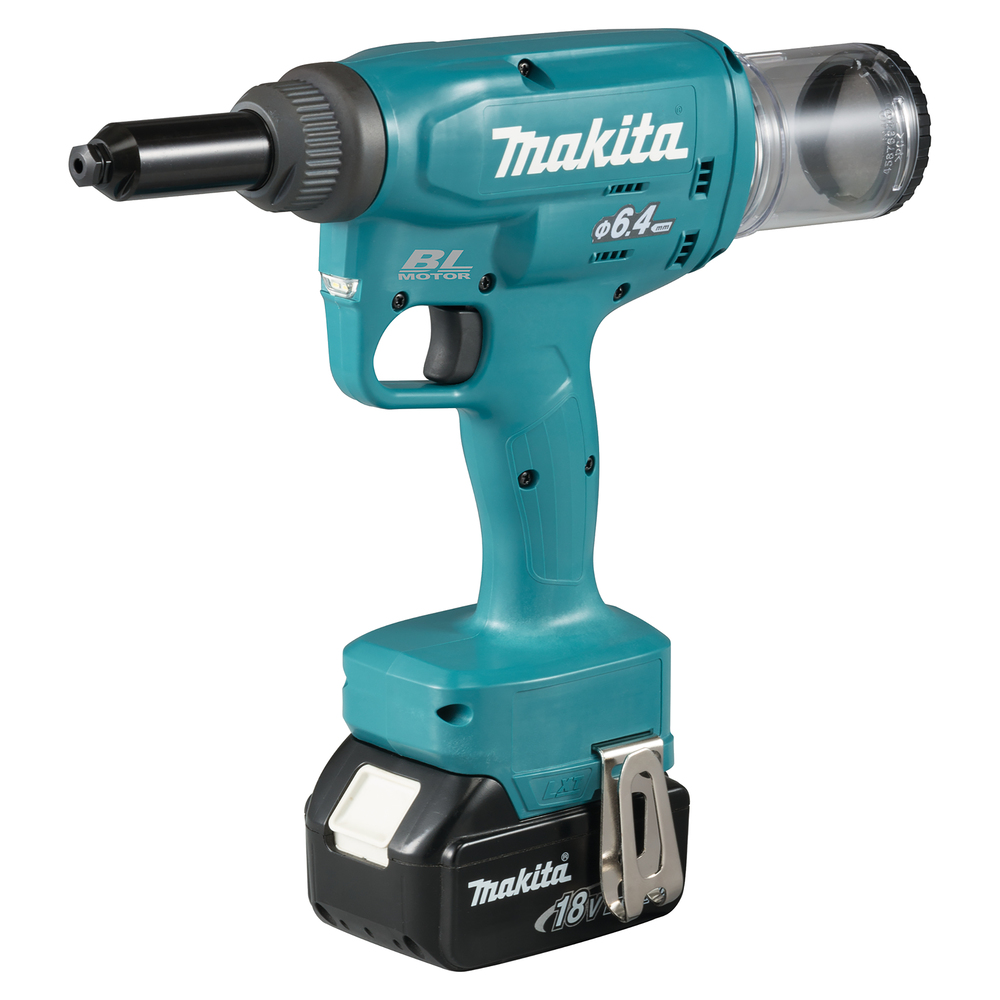

Rivet Gun LXT®
DRV250RFJ18V • 6,4 mm • 20 kN • 30 mm
A brushless heavy duty tool for up to 6,4 mm rivets
A cordless heavy duty tool for 4,8 - 6,4 mm rivets. The tool is specifically designed for industrial applications and it delivers a powerful pulling force of 20 kN with a stroke length of 30 mm. The tool is powerful yet easy to use. Two 3.0Ah batteries and a rapid charger in a Makpac case.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
Product description:
DRV250 is a powerful and convenient riveter that does not get tired even during tough jobs. It's brushless motor provides a pulling force of 20 kN and a stroke length of 30 mm, which makes it possible to install most rivets in one stroke. The machine features a rivet holder mechanishm, which holds the rivet still even when the machine is pointed downward. Thee transparent container collects spent mandrels, so it's easy to keep track of their amount and to maintain a clean job site. The riveter is compatible with rivet's ranging from 4,8 mm to 6,4 mm in diameter, but with accessories it can be made compatible with smaller rivets, too.The machine only weighs 2,4 kg with a battery making it convenient to use. It's jaw case enables tight space operation. Just as the riveter provides a high capacity, so can you work with reduced fatigue thanks to it's innovative design.User benefits
- Brushless maintenance-free and long-life motor
- Body model - delivered without battery and charger.
- Jaw Case Designed to Enable Tight Space Operation
- High speed tightening; Able to tighten rivets as fast as the competitors
- Twin LED job light with pre-glow and afterglow functions illuminates the work area
Standard machines
View more
View less
Technical specifications
-
Li-ion battery 18V-
-
Nominal Battery Voltage18 V
-
Voltage LXT
-
Battery protection
-
Cutting Capacity Mild Steel (up to 400N/mm²)2,4 - 6,4 mm
-
Cutting Capacity Stainless Steel (up to 600N/mm²)2,4 - 4,8 mm
-
Sound Pressure Level (LpA)74 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Vibration Level (3 axes)≤ 2,5 m/s²
-
Vibration Uncertainty (K Factor)1,5 m/s²
-
Tool weight with battery (EPTA)2,1 - 2,4 kg
-
Product Dimensions (L x W x H):323 x 80 x 287 mm
-
Max. pulling force20 kN
-
Length of Stroke30 mm
-
Nail Diameter4,8 - 6,4 mm
Barcode
0088381876414
Symbols:
Elektroninen tai mekaanin jarru
Työvalo
