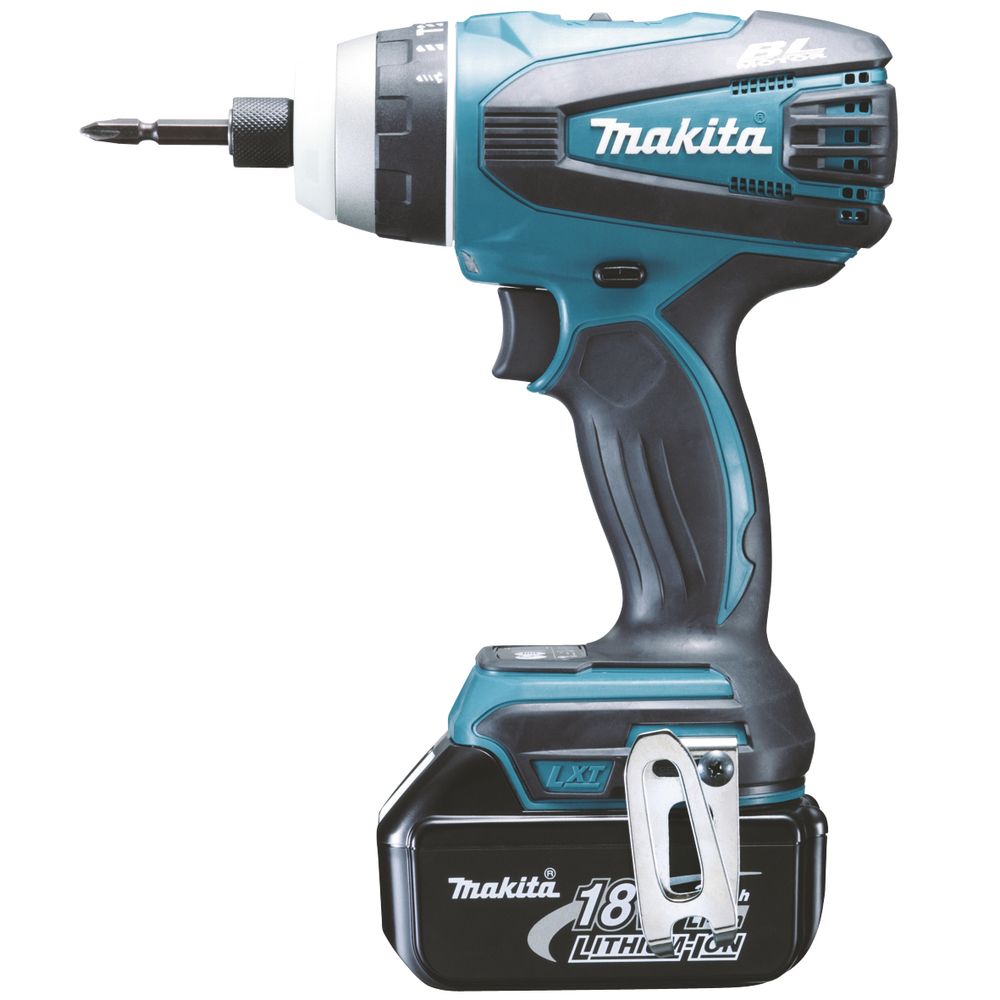

Impact Driver LXT®
DTP141RFJ18V • 1/4" • 150 Nm • 0 – 2 700 min⁻¹
Multipurpose 4-mode impact driver with three power settings
A 4-mode impact driver with an electronic torque control and four functions. The functions are impact driver, percussion drill, two-speed drill and screwdriver.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
User benefits
- LED light illuminates the work site
Standard machines
View more
View less
Technical specifications
-
Li-ion battery 18V-
-
Nominal Battery Voltage18 V
-
Voltage LXT
-
Battery protection
-
No load speed0 - 1300 / 2200 / 2700 min⁻¹
-
No load speed screwdriver0 - 300 / 0 - 1100 min⁻¹
-
Max. fastening torque Hard/Soft22 / 13 Nm
-
max fastening torgue impact drill150 Nm
-
Tightening Capacity Standard BoltM5 - M14
-
Clutch torque setting9
-
Impacts per Minute (IPM)0 - 1200 / 2400 / 3200 min⁻¹
-
Percussion-drill mode0 - 8400 / 0 - 32 400 min⁻¹
-
Max. Drilling Diameter in Wood21 mm
-
Max. Drilling Diameter in Concrete8 mm
-
Max. Drilling Diameter in Steel10 mm
-
Sound Power Level (LWA)96 dB(A)
-
Sound Pressure Level (LpA)85 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Vibration Level (3 axes), Fastening Bolt10,5 m/s²
-
Vibration Uncertainty (K Factor)1,5 m/s²
-
Tool weight with battery (EPTA)1,5 - 1,9 kg
-
Product Dimensions (L x W x H):171 x 79 x 250 mm
Barcode
0088381673518
Symbols:
Portaaton nopeudensäätö
Suunnanvaihto
2 mekaanista vaihdetta
Elektroninen tai mekaanin jarru
Momentin säätö 16 aluetta
Työvalo
