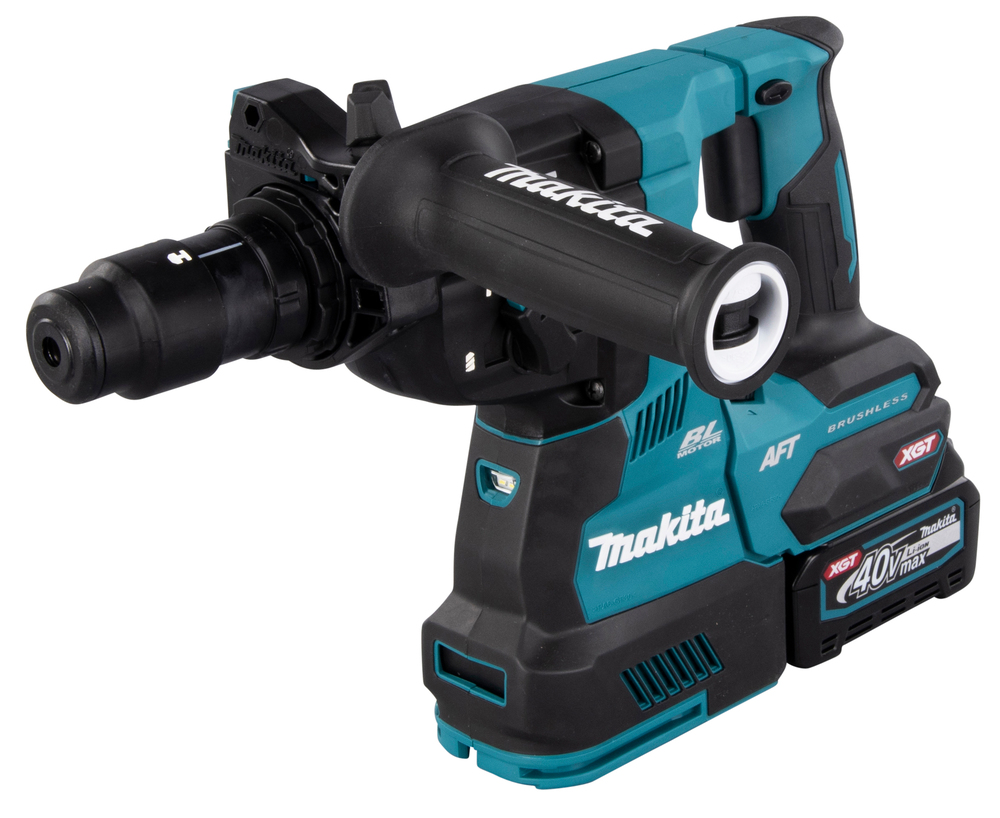

Combination Hammer XGT®
HR002GD20140V max • SDS-Plus • 28 mm • 2,9 J
Three-mode, anti-vibration rotary hammer with remote dust extraction start for professionals
Efficient tool for SDS-Plus bits with XGT batteries provide a high voltage. For impact and unstressed drilling and chipping. Speed range of 0 – 980 min-1. Impact energy of 2,9 J, max. Capacity of 28 mm in concrete. Two 2.5 Ah batteries, rapid charger in a Makpac case.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
Product description:
HR002G delivers the power needed in heavy-duty work. The machine delivers up to 5000 blows per minute (BPM) and its No Load Speed can reach 980 min⁻¹. It's ready to take on a variety of tasks, as it has three modes: "Rotation Only", "Hammering with Rotation" and "Hammering Only".The machine is easy to handle, as its vibration levels are the best in its class. Adding to the machine's convenience is its redesigned balance, quick-change chuck and easy connectability to a DX14 dust extractor system.
HR002G features many smart technologies. Along with the new XGT® technology, the machine has Anti-Vibration Technology (AVT), Active Feedback sensing Technology (AFT) and Auto-start Wireless System (AWS). These make HR002G a must for any contractor working with medium to big projects.
User benefits
- Battery protection circuit protects against overloading, over-discharging and over-heating
- Quick-release chuck for metal and wood drill bits without impact.
- AVT (Anti-Vibration Technology) ensures extra-low vibration performance
- Auto-start Wireless System (AWS) connects to vacuum cleaner with Bluetooth
- Active Feedback sensing Technology (AFT) stops the engine if the rotation suddenly stops
- XPT (Extreme Protection Technology) is engineered for improved dust and water resistance for operation in harsh job site conditions
- Low power consumption thanks to brushless motor
- Impact drilling, non-impact drilling and spike function
- Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
Standard accessories
View more
View less
Standard machines
View more
View less
Technical specifications
-
Li-ion battery 40V max-
-
Nominal Battery Voltage40 V
-
Voltage XGT
-
Battery protection
-
No load speed0 - 980 min⁻¹
-
Impacts per Minute (IPM)0 - 5000 min⁻¹
-
Max. Drilling Diameter in Wood32 mm
-
Max. Drilling Diameter in Concrete28 mm
-
Max. Drilling Diameter in Steel13 mm
-
Optimum Drilling Diameter Range in Concrete10 - 18 mm
-
Impact Energy2,9 J
-
Drilling diameter with TCT core bit54 mm
-
Side Grip
-
Sound Power Level (LWA)104 dB(A)
-
Sound Pressure Level (LpA)93 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Vibration Level (3 axes), Drilling2,5 m/s²
-
Vibration Level (3 axes), Impact Drilling7,5 m/s²
-
Vibration: Chiselling6,5 m/s²
-
Vibration Uncertainty (K Factor)1,5 m/s²
-
Product net weight3,1 kg
-
Tool weight with battery (EPTA)4,1 - 4,6 kg
-
Product Dimensions (L x W x H):389 x 102 x 232 mm
Barcode
Symbols:
Portaaton nopeudensäätö
Elektroninen tai mekaanin jarru
Suunnanvaihto
Turvakytkin
SDS-Plus kiinnitys
Vakioelektroniikka
Pölynpoisto
Työvalo
Laukku
