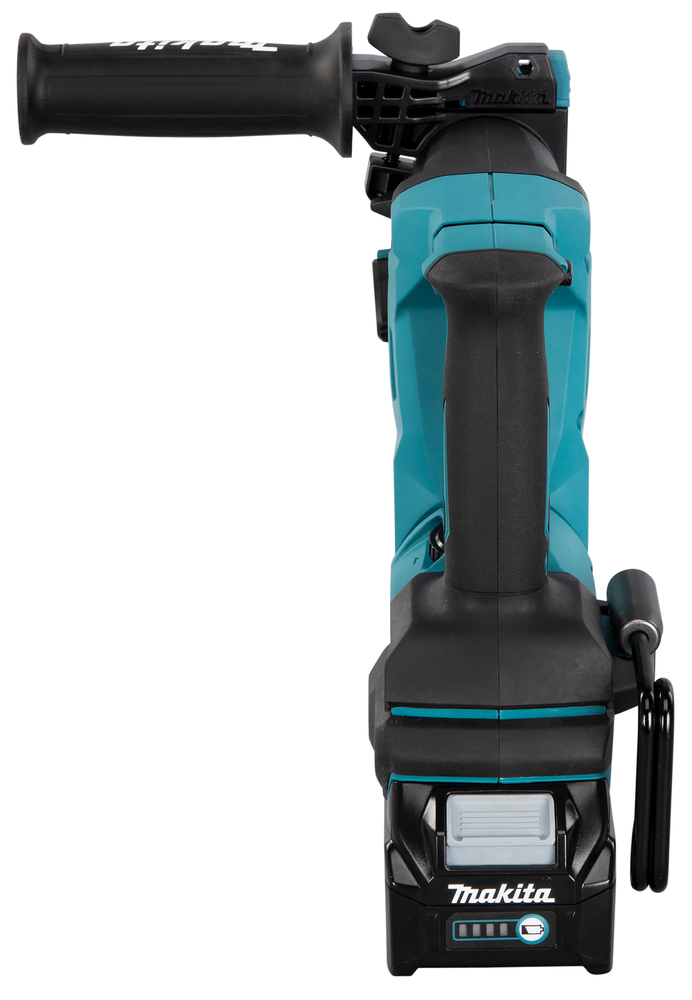

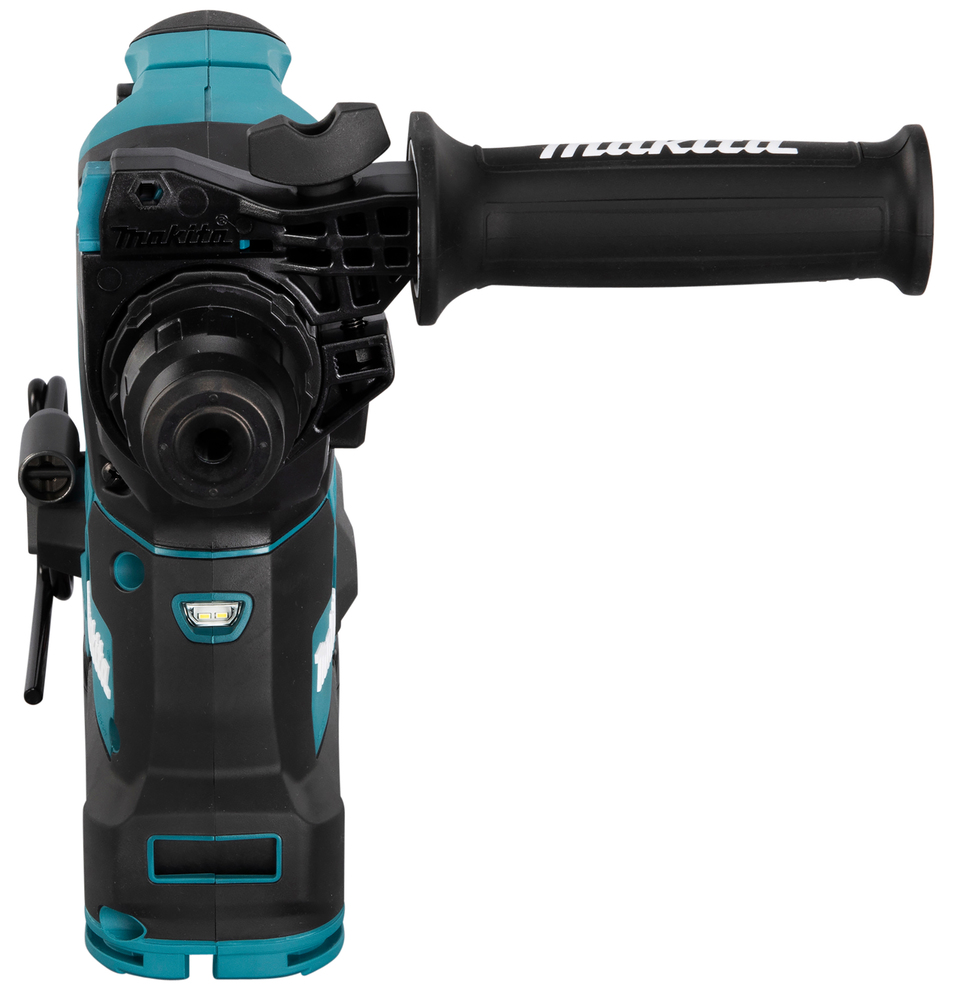

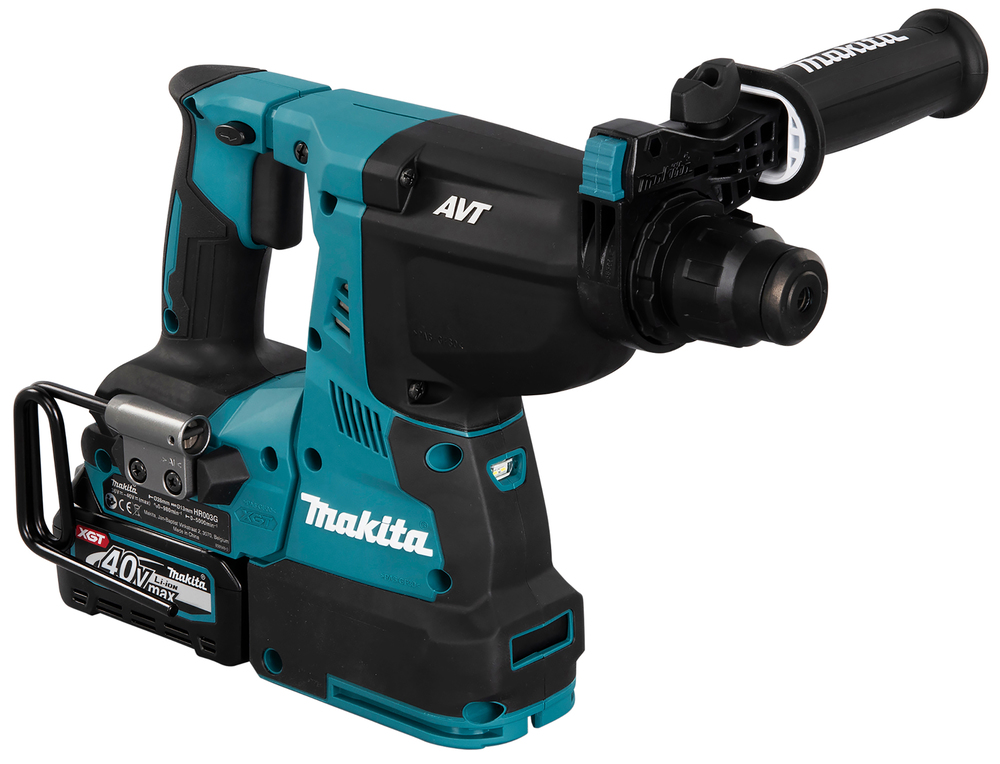

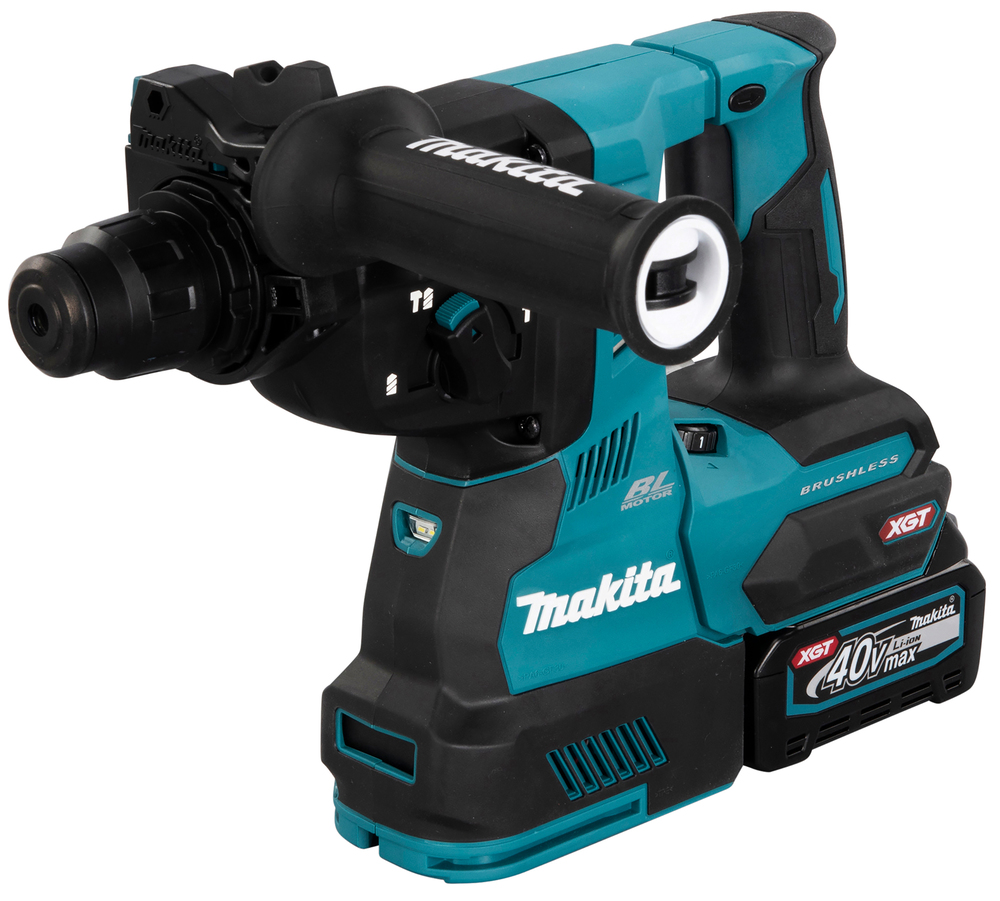

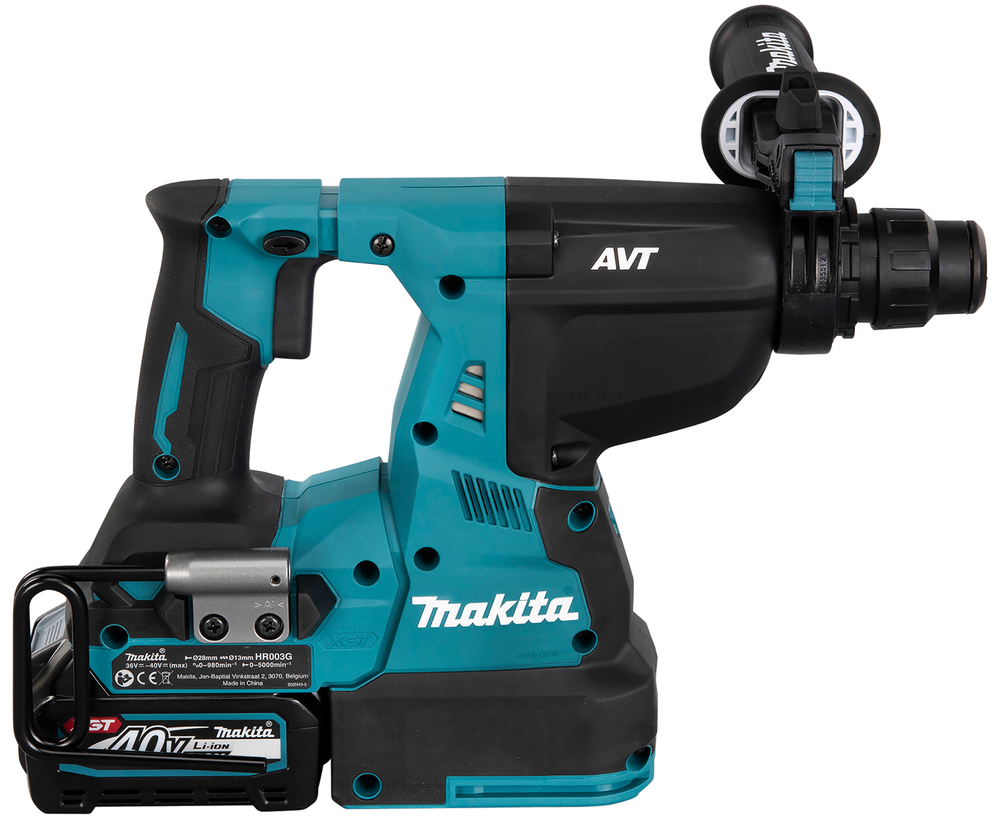

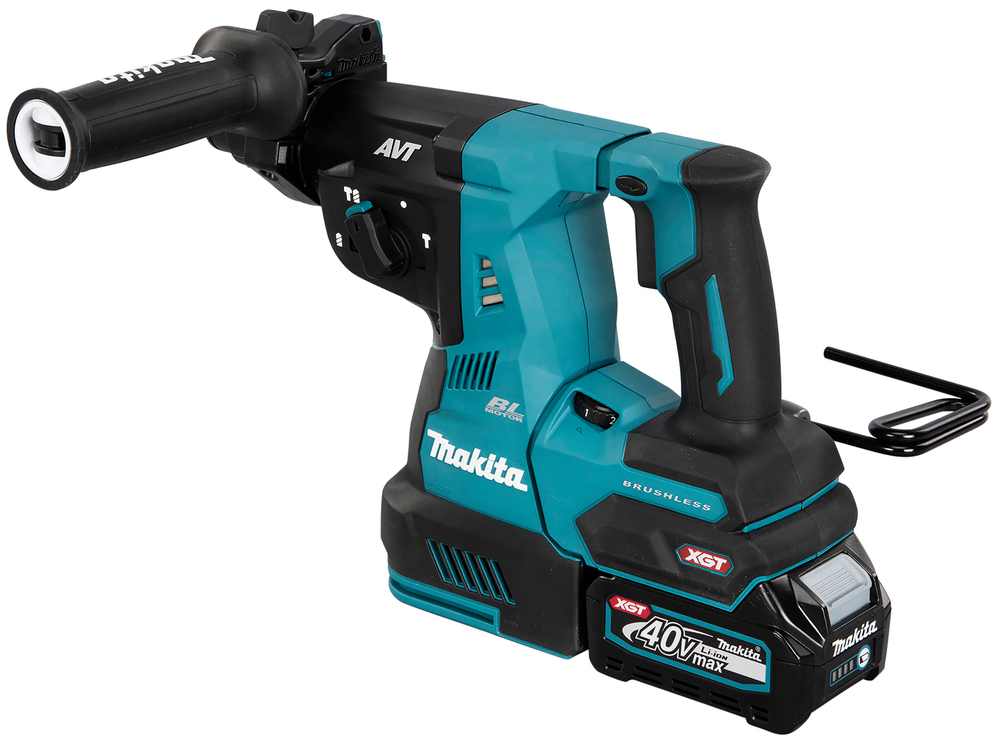

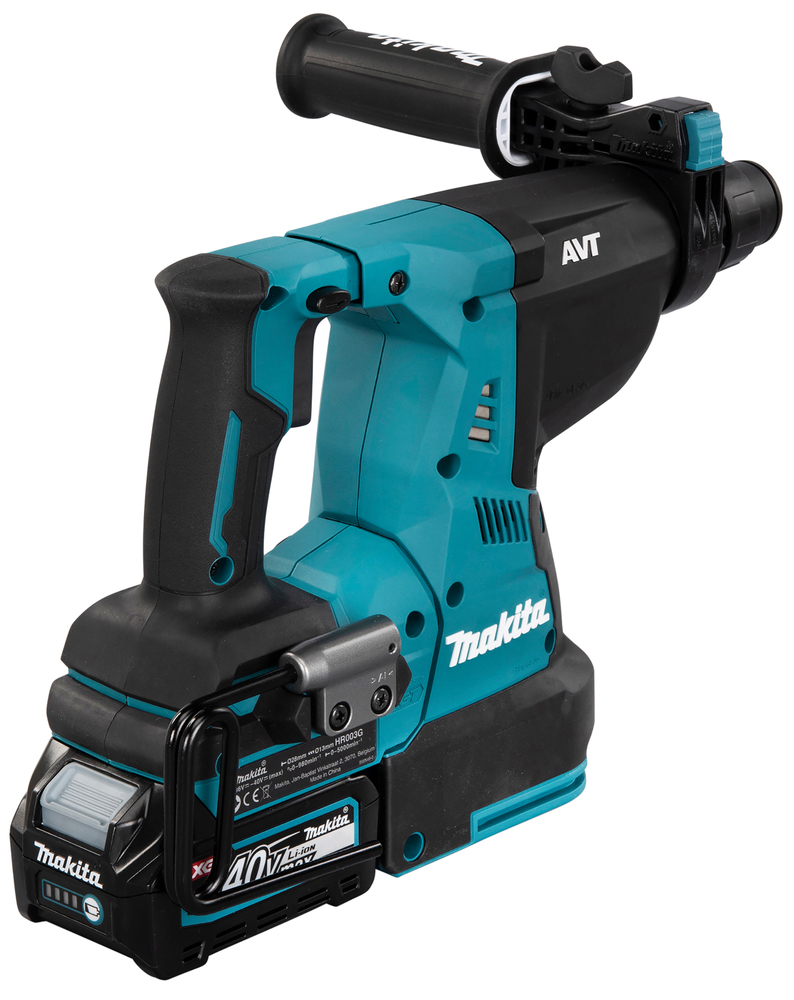

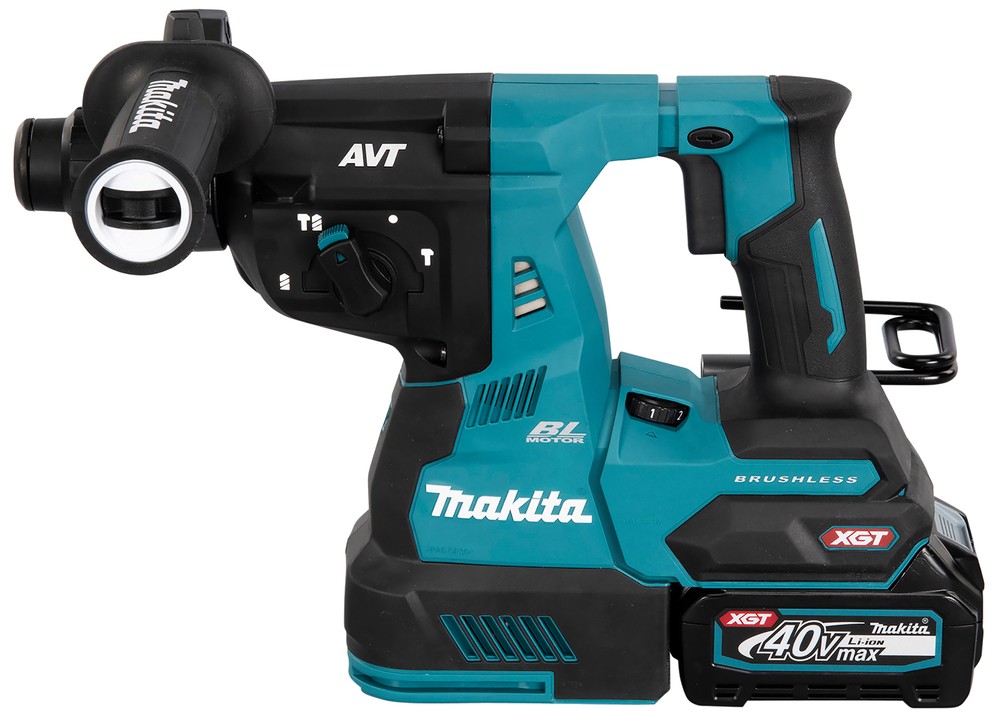

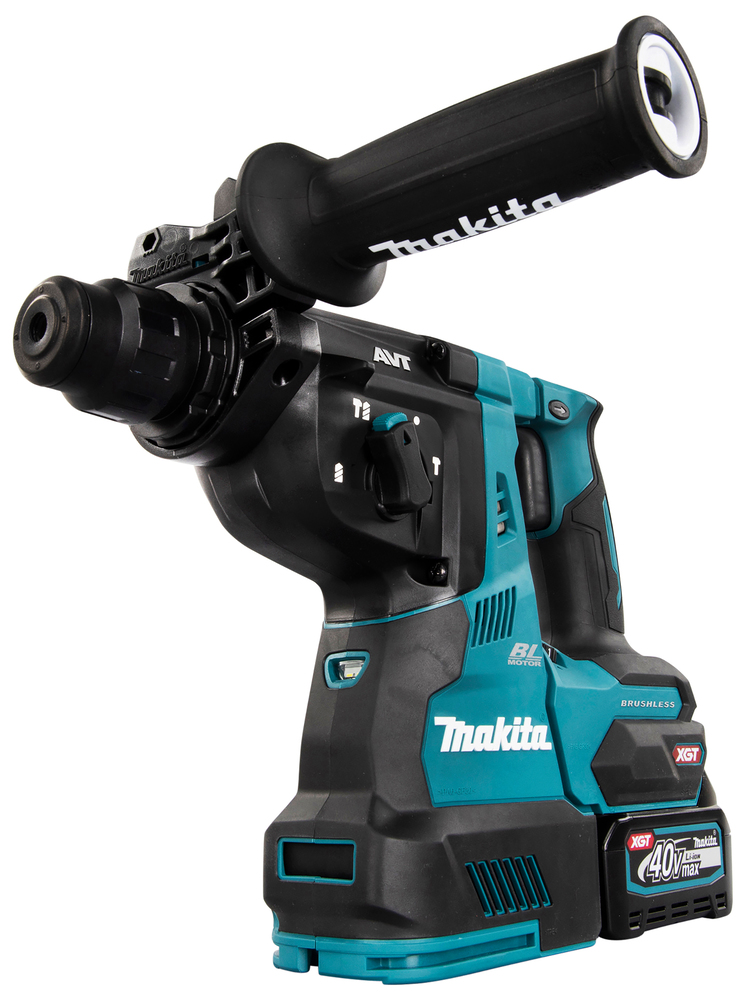

Rotary Hammer XGT®
HR003GM20240V max • SDS-Plus • 28 mm • 2,8 J
Powerful three-action hammer with vibration damping
Efficient combination hammer delivers high power for professional work. The tool is lightweight and the tool balance is redesigned for increased operability. Equipped with Anti vibration technology (AVT). Two 4.0 Ah batteries, rapid charger, and dust extraction system in a Makpac case.
- **General**
- **Technical info**
- **Related Products**
- **Dust Extraction**
- **Additional info**
- **Support**
Product description:
HR003G delivers the power needed in heavy-duty work. The machine delivers up to 5000 blows per minute (BPM) and its No Load Speed can reach 980 min⁻¹. It's ready to take on a variety of tasks, as it has three modes: "Rotation Only, "Hammering with Rotation" and "Hammering Only". The machine is easy to handle, as it only weighs 3,9 kg and its vibration levels are the best in its class. Adding to the machine's convenience is that its easy to connect to a DX12 dust extractor system.The new XGT® technology makes HR003G more powerful, more durable and more intelligent than its 18V predecessor. That is why HR003G is a must have for any contractor working with medium to big projects.User benefits
- Battery protection circuit protects against overloading, over-discharging and over-heating
- AVT (Anti-Vibration Technology) ensures extra-low vibration performance
- XPT (Extreme Protection Technology) is engineered for improved dust and water resistance for operation in harsh job site conditions
- Low power consumption thanks to brushless motor
- Impact drilling, non-impact drilling and spike function
- Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
Standard accessories
View more
View less
Standard machines
View more
View less
Technical specifications
-
Li-ion battery 40V max-
-
Nominal Battery Voltage40 V
-
Voltage XGT
-
Battery protection
-
No load speed0 - 980 min⁻¹
-
Impacts per Minute (IPM)0 - 5000 min⁻¹
-
Max. Drilling Diameter in Wood32 mm
-
Max. Drilling Diameter in Concrete28 mm
-
Max. Drilling Diameter in Steel13 mm
-
Optimum Drilling Diameter Range in Concrete10 - 18 mm
-
Impact Energy2,8 J
-
Drilling diameter with TCT core bit54 mm
-
Side Grip
-
Sound Power Level (LWA)106 dB(A)
-
Sound Pressure Level (LpA)95 dB(A)
-
Noise Uncertainty (K Factor)3 dB(A)
-
Vibration Level (3 axes), Drilling2,5 m/s²
-
Vibration Level (3 axes), Impact Drilling7,0 m/s²
-
Vibration: Chiselling6,5 m/s²
-
Vibration Uncertainty (K Factor)1,5 m/s²
-
Tool weight with battery (EPTA)3,9 - 4,6 kg
-
Product Dimensions (L x W x H):373 x 102 x 238 mm
Barcode
Symbols:
Portaaton nopeudensäätö
Elektroninen tai mekaanin jarru
Suunnanvaihto
Turvakytkin
SDS-Plus kiinnitys
Vakioelektroniikka
Työvalo
Pölynpoisto
